Product Name : Outdoor Optic Cable Stranded-Tube Double Jacket-GYTA53/GYFTA53

Key Words :  Outdoor Underground Direct Buried Optic Cable GYTA53 GYFTA53 Singlemode G652D Armored optical fiber cable for Aerial and Duct application

Applications : Laying modes: Direct Buried
Long-distance communication, local trunk line, CATV & computer networks system

Description
Features
Parameters
Ordering Info
DataSheet

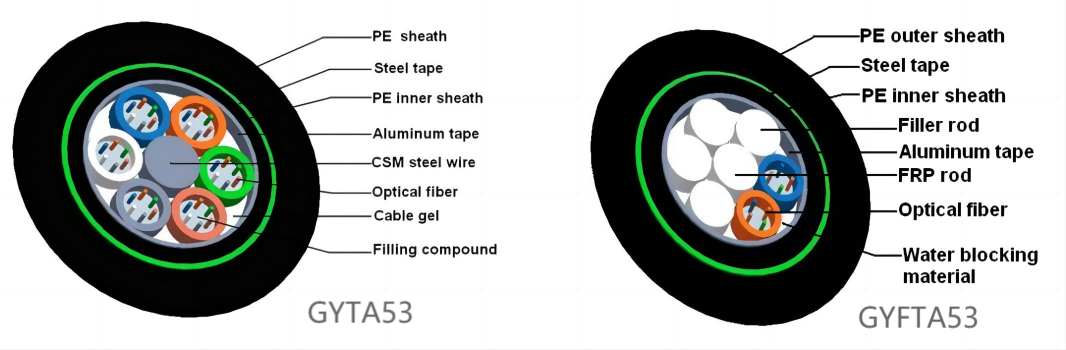

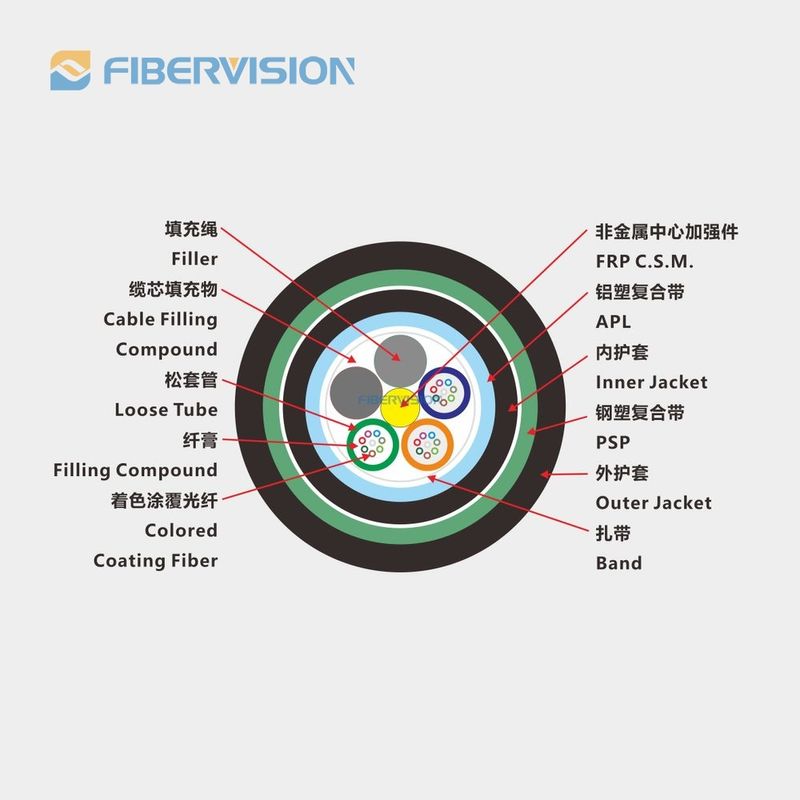

Metallic(Non-metallic)strength member,loose-tube stranded,gel filling,laminated aluminum-polyethylene inner sheath,longitudinally wrapped corrugated steel tape armor and outer polyethylene sheath outdoor cable for communication purpose.

GYTA53 GYFTA53.png

Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 C

Technical Data(GYFTA53)
Fiber count	Cable outer dia (mm)	Cable weight (kg/km)	Min.bending radius(mm)		Permissible tensile force(N)		Permissible pressure force(N/100mm)
Fiber count	Cable outer dia (mm)	Cable weight (kg/km)	Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2-36	13.7	180	12.5D	25D	3000	1000	3000	1000
38-72	14.3	195	12.5D	25D	3000	1000	3000	1000
74-84	15	215	12.5D	25D	3000	1000	3000	1000
86-96	15.6	235	12.5D	25D	3000	1000	3000	1000
98-108	16.3	260	12.5D	25D	3000	1000	3000	1000
132-144	18.5	330	12.5D	25D	3000	1000	3000	1000
288	21.6	442	12.5D	25D	3000	1000	3000	1000
Note："D" is cable diameter
