Outdoor Direct Buried Optic Cable GYXTY53 Uni-tube Singlemode G652D 2-12core Armored optical fiber cable for Aerial and Duct application-FIBERVISION

2023-12-16

Category :
								Outdoor Optic Cable

Sub-Category :
									Direct-Burial and Armored

Item Code :

Product Name : Outdoor Optic Cable Uni-Tube Double Jacket-GYXTY53

Key Words :  Outdoor Direct Buried Optic Cable GYXTY53 Uni-tube Singlemode G652D 2-12core Armored optical fiber cable for Aerial and Duct application

Applications : Buried, Duct

Description
Features
Parameters
Ordering Info
DataSheet

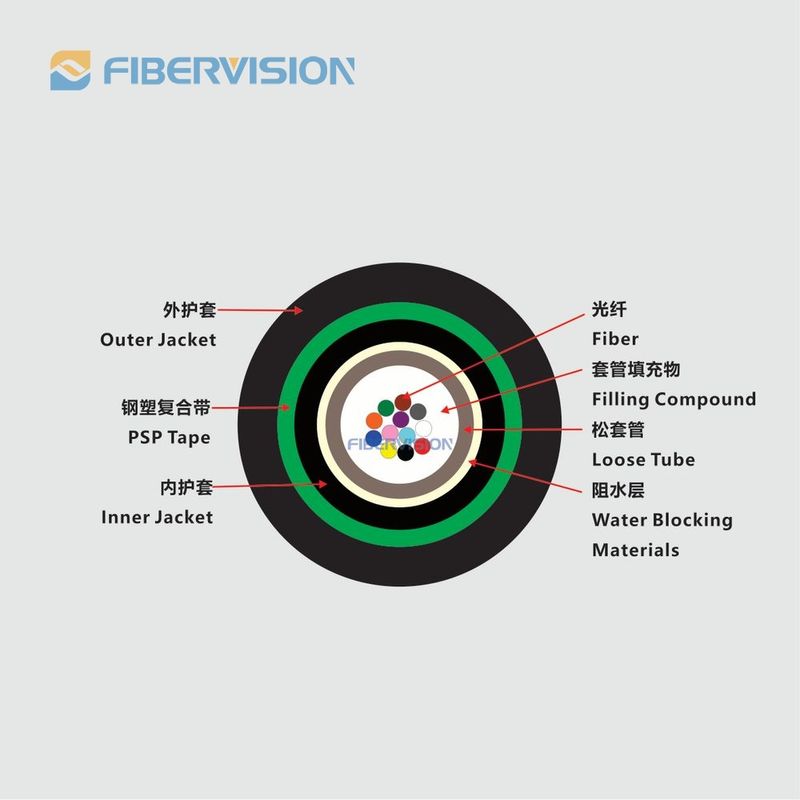

It is a fiber optic cable which has good performance of resisting external mechanical damage and preventing soil erosion. Fiber optic units are armored with metal aluminum table, water-blocking materials, steel tape and double sheath outside, which makes it is available for directly buried in the ground.

• Good mechanical properties and temperature characteristics
• Plastic coated steel tape (PSP)moisture-proof layer
• Fiber filling compound protection
• Uni tube for 1-12 fiber counts
• Water-blocking materials
• Double PE sheath

Technical Characteristics

Type (in 2F increments)	Fiber count	Tube size (mm)	Nominal thickness of sheath (mm)	Cable diameter (mm)	Cable weight (kg/km)	Tensile strength Long/short term (N)	Crush Long/short term (N/100mm)
GYXTY53-2-12 Xn	2-12	2.5	2.0	10.9	144	600/1500	1000/3000
GYXTY53-14-18Xn	14-18	2.8	2.0	11.2	155	1000/3000	1000/3000
GYXTY53-20-24Xn	20-24	3.2	2.0	11.6	167	1000/3000	1000/3000
GYXTY53-26-30Xn	26-30	3.5	2.0	11.9	178	1000/3000	1000/3000
GYXTY53-32-36Xn	32-36	3.8	2.0	12.2	186	1000/3000	1000/3000

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N
