Product Name : ADSS-2PE-nnF Double PE Jacket ADSS Cable

Key Points : FRP Central Strength Member, 12-144 core, Water-blocking yarns and Aramid Yarns, Double Sheath, HDPE Jacket

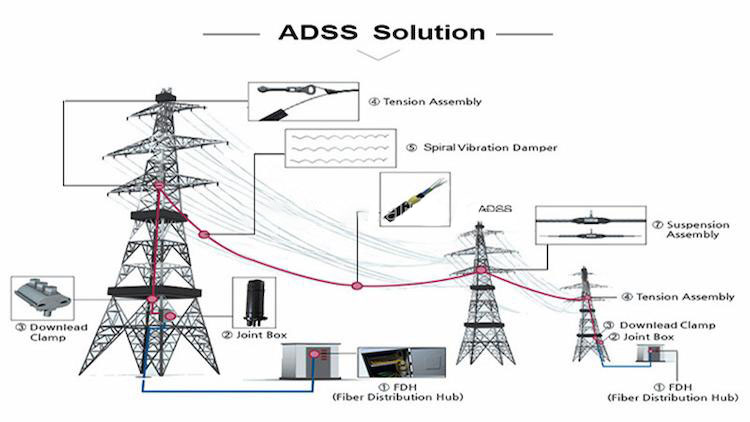

Applications : Telecommunication, Aerial, Duct, Telecom, Network
FTTH optical network, Aerial self supporting construction

General Description

All-Dielectric Self-Supporting fiber optic cable ADSS adopts all dielectric structure and does not contain any metal materials. It is suitable for all kinds of power lines. Polyethylene (PE) outer sheath shall be used for power lines with transmission voltage not greater than 110kV. Electric corrosion resistant (AT) outer sheath shall be adopted for power lines with transmission voltage greater than 110kV.

Product Features

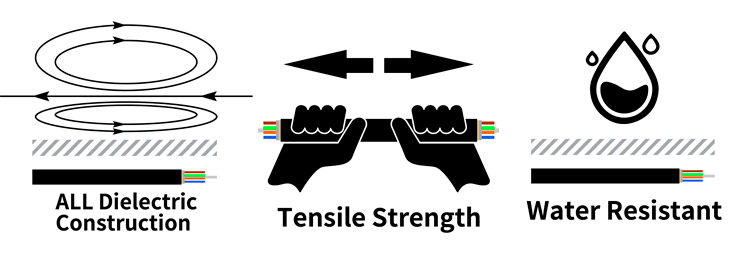

All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure

Large number of fiber cores, light weight, can be installed with power line, saving resources

Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots

Small thermal expansion, the varation of the arc of the cable line is small when the temperature changes greatly

Double layer of aramid yarn as strength member, meet the harsh enviroment such as the high-altitudes salt lake area

Technical Details

Optical Characteristics

Optical Characteristic		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.3 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500 MHz · km	≥200 MHz · km
Bandwidth	@1300nm			≥500 MHz · km	≥500 MHz · km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1450nm

Technical Characteristics

Fiber Count	Loose Tubes + Fillers	Fibers per Tube	C.S.M Diameter (mm)	Outer Jacket Thickness (mm)	Cable Diameter (mm)	Weight (kg/km)
4	1+6	4	2.3	1.7±0.1	10.5±0.5	82
6	1+6	6	2.3	1.7±0.1	10.5±0.5	82
8	1+6	4	2.3	1.7±0.1	10.5±0.5	82
12	1+6	6	2.3	1.7±0.1	10.5±0.5	82
24	1+6	6	2.3	1.7±0.1	10.5±0.5	83
36	1+6	6	2.3	1.7±0.1	10.5±0.5	84
48	1+6	12	2.6	1.7±0.1	11.5±0.5	94
72	1+6	12	2.6	1.7±0.1	11.5±0.5	95
96	1+8	12	3	1.7±0.1	12.5±0.5	122
