Product Name : ADSS-SJ-nnF Single Sheath ADSS Cable

Key Points : FRP Central Strength Member, 2-96 core, Water-blocking yarns and Aramid Yarns, Single Sheath, HDPE Jacket

Applications : FTTH optical network, Aerial self supporting construction

General Description

Standard ADSS aerial fiber optic cable has great performance of tension resistance and self-supporting. In addition to it’s non-conductivity, the ADSS fiber optic cable can be installed with newly erected communication lines or existing power line system.

For it’s aerial installation, the cable span is mostly considered during setting or updating a cable line. With the span increases, cable materials and specification varys. Reach our experts for a holistic plan for the real site.

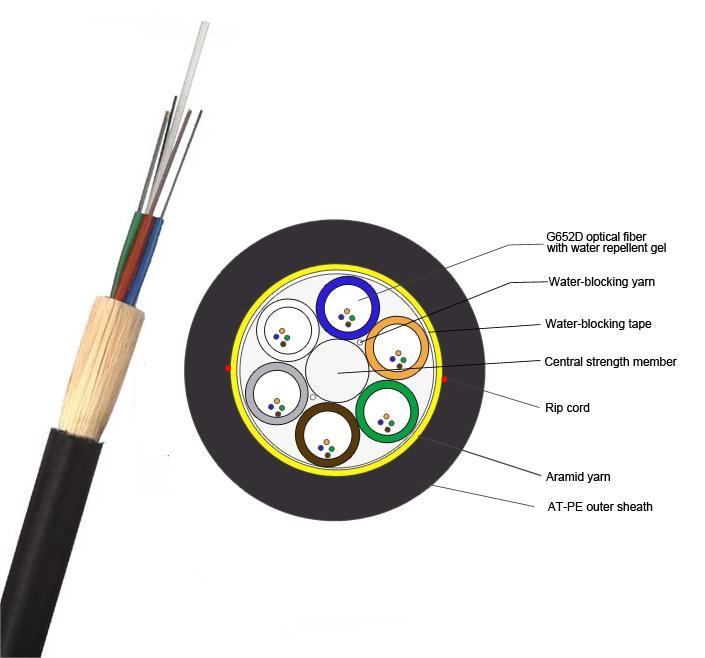

ADSS 24Cores G652D Overhead Span 100m Fiber Optic Cable.jpg

Product Features

Aramid yarn and FRP strength member, non metallic structure

Non-conductive for easy power line installation

Loose tube with fiber jelly compound give fibers protection

Rip cord for easily stripe and construction

Outer sheath PE, MDPE and HDPE for excellent environment mechanical performance

Span 80 meter and 120 meter, customization is also available

Technical Details

Optical Characteristics

Optical Characteristics		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.3 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500 MHz · km	≥200 MHz · km
Bandwidth	@1300nm			≥500 MHz · km	≥500 MHz · km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1450nm

Technical Characteristics

Fiber Count	Loose Tubes + Fillers	Fibers per Tube	CSM Diameter (mm)	Outer Jacket Thickness (mm)	Cable Diameter (mm)	Weight (kg/km)
4	1+6	4	2.3	1.7±0.1	10.5±0.5	82
6	1+6	6	2.3	1.7±0.1	10.5±0.5	82
8	1+6	4	2.3	1.7±0.1	10.5±0.5	82
12	1+6	6	2.3	1.7±0.1	10.5±0.5	82
24	1+6	6	2.3	1.7±0.1	10.5±0.5	83
36	1+6	6	2.3	1.7±0.1	10.5±0.5	84
48	1+6	12	2.6	1.7±0.1	11.5±0.5	94
72	1+6	12	2.6	1.7±0.1	11.5±0.5	95
96	1+8	12	3	1.7±0.1	12.5±0.5	122
