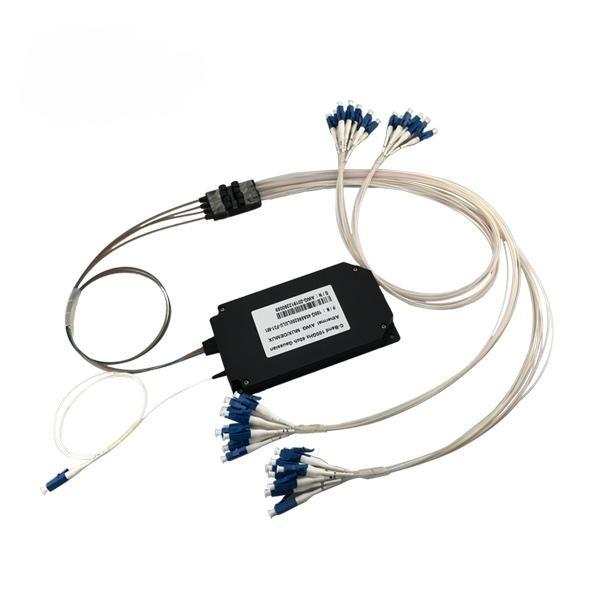

Product Name : AWG Mux

Key Points :

Applications : 1) FTTX Systems;

2) PON Networks;

3) CATV Links;

4) Optical Signal Distribution;

5) Fiber Data Transmission.

General Description

AWG(Awg Arrayed Waveguide Grating),Array waveguide particles used in wavelength division multiplexing (WDM-PON) are also called AWGs. This is a method of manual optical transmission products using high-speed transmission. For transmission methods of large-capacity storage signals such as images, telephones, and data, only 16 and 32 members need to be divided into one optical path at a time. Areas that require long-distance transmission are also used.

Product Features

Upstream and downstream dual frequency bands using a single chip microcomputer

Low insertion loss

High return loss

High isolation

compact desigh

Thermal stability

1270-1610nm

Technical Details

AWG Module Technical Parameters

parameter	Unit	100Ghz		100Ghz
parameter	Unit	Gaussian	Flat top	Gaussian	Flat top
Wavelength Accuracy	nm	±0.05	±0.05	±0.07	±0.07
Full 1dB Bandwidth	nm	＞0.2	＞0.4	＞0.4	＞0.7
Full 3 dB Bandwidth	nm	＞0.4	＞0.6	＞0.7	＞1.0
Optical Insertion Loss	dB	3.7	4.5	3.7	4.5
Loss Uniformity	dB	1.0	1.0	0.8	0.8
Adjacent Channel Crosstalk	dB	27.0	27.0	28.0	28.0
Non-adjacent Channel Crosstalk	dB	30.0	30.0	30.0	30.0
Optical Return Loss	dB	＞40	＞40	＞40	＞40
Polarization Loss	dB	＜0.5	＜0.5	＜0.5	＜0.5
Dimension	mm	120x70x12.3 / 85x58x113
Operating Temperature	℃	-20- 70
