Product : Zip-Cord Duplex Spiral Armored Cable

Category :
								Indoor Fiber Cable

Sub-Category :
										Spiral Tube Armored Cable

Item Code :

Sub-Title : Indoor Optic Cable /Spiral Tube Armored Cable,Duplex Armored Cable, Duplex Spiral TubeArmored Cable

Key Tags :  Armored Cable,Zip-Cord Duplex,2CoreTight Buffer Fiber, Single-Mode, Aramid Yarns Strength Member, LSZH Jacket

Applications : All kinds of connector
Fiber optic pigtails, patch cords
Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
Fiber optic equipment and instrument
Indoor cabling,building cabling,LAN, etc
Long distance, outdoor/indoor cabling, trunking,etc
Backbone network to the equipment in the building
Small installation space cabling

General Description

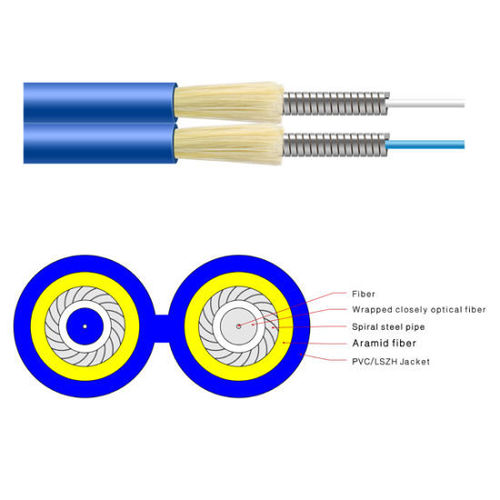

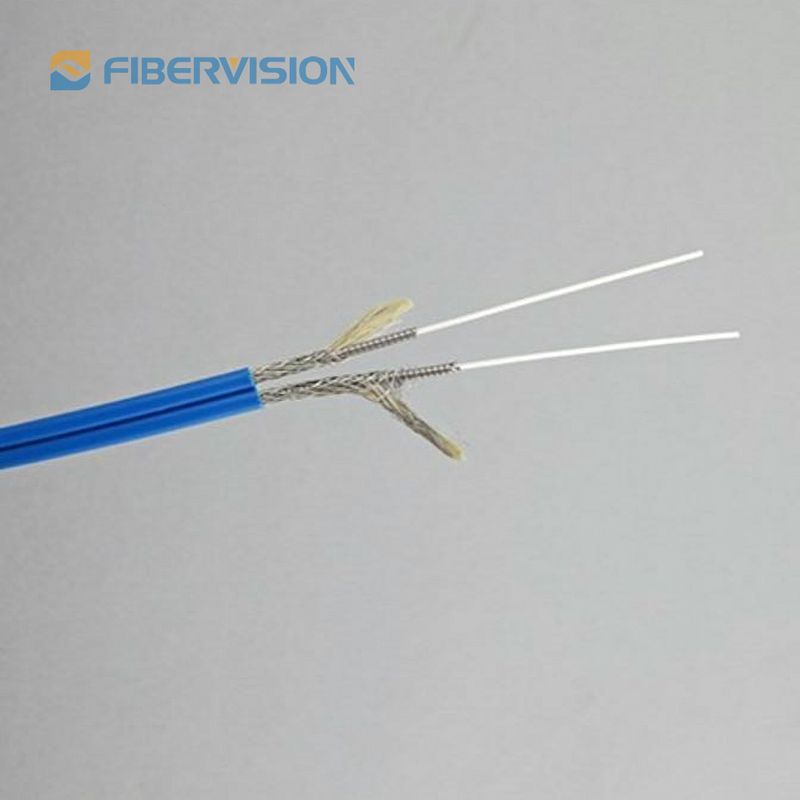

Duplex Double Tube Spiral Armored Cable, 900μm or 600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath.

indoor-duplex-armored-optical-fiber-cable-151 (1).jpg

Product Features

2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
High strength aramid yarn, the high-performance outer sheath
Lightweight, flexibility, and friendly installation
Good mechanical and environmental performance
Flame retardant outer sheath provides good safety

Technical Details

Cable Type	Tight Diameter	Cable Diameter	Cable Weight	Tensile Strength Long/Short Term	Crush Resistance Long/Short Term
	mm	mm	Kg/km	N	N/100m
GJSFJBV	0.6	2.0*4.1	30	300/750	200/1000
GJSFJBV	0.6	2.8*5.7	35	300/750	200/1000
GJSFJBV	0.9	3.0*6.1	43	300/750	200/1000

Ordering Information

Module	xxx	xx	X	X
YD-	cores	Fiber model	Sheath Material	Fiber type
(model)	001=1	SM=9/125um	1=PU	1=G652D
	002=2		2=LSZH	2=G655
	004=4		3=PVC	3=G657A1
	006=6		4=PE	4=G657B3
	008=8		5=else	5=OM1
	012=12	MM=62.5/125um		6=OM2
	016=16	MM=50/125um		7=OM3
	024=24			8=OM4
	048=48			9=OM5
	…….			…….

Datasheet Download
