2023-12-15

Category :
								Optic Cable Assembly

Sub-Category :
									Armored Patch Cords

Item Code :

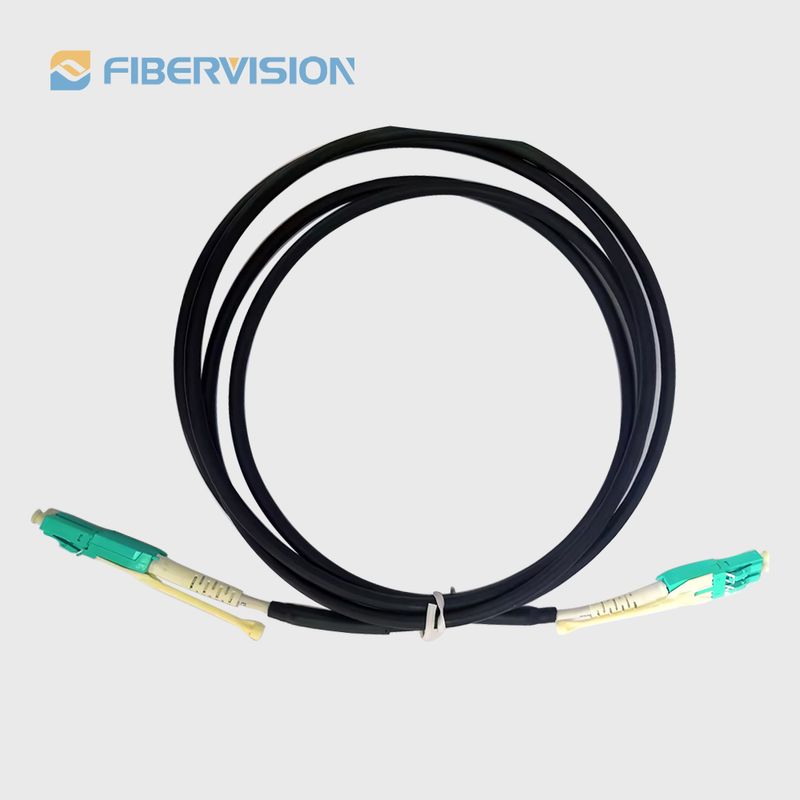

Product Name : Plugable Uniboot Armored Patch Cord

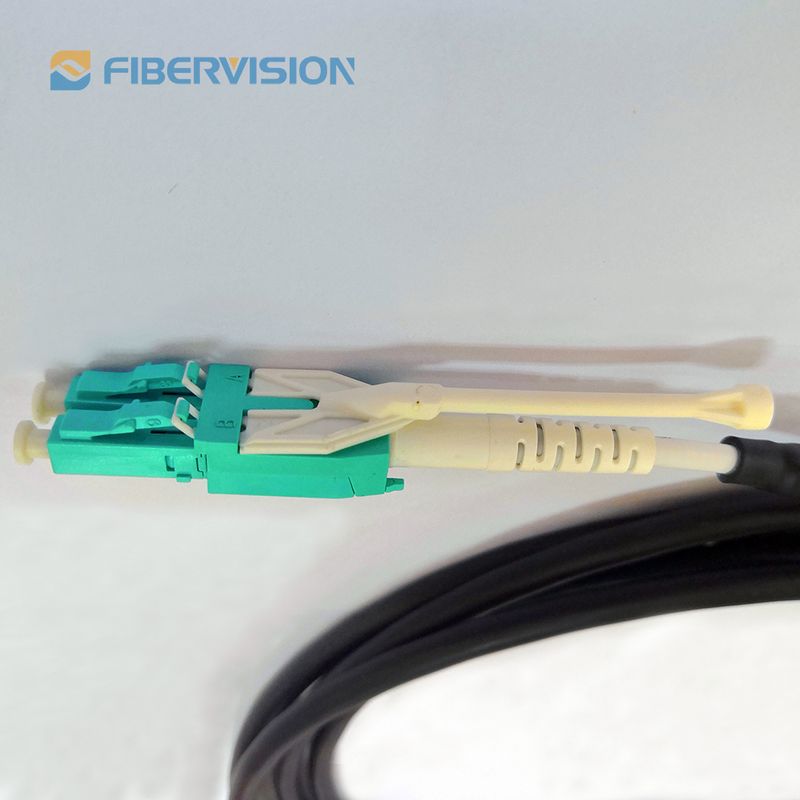

Key Points : Armored Cable, Duplex,Plugable Uni-boot ,LC-LC, LSZH

Applications : Telecommunication networks Intelligent fiber optic networks
CCTV security networks
FTTx
CATV networks
Fiber-to-the-home

General Description

Armored Patch Cords are suitable for harsh environmental conditions without the need for additional protection. They are typically used in industrial environments, outdoor to indoor telecommunication networks, FTTx, FTTH and some critical applications. The patch cords provide sturdy interconnectivity to active equipment, passive optical devices and cross-connects. Armored patch cords come double armored with steel tape for better crush resistance and steel mesh for better tensile strength. Through this they have a high durability and a good crush resistance to ensure a longer life.

Product Features

• Rugged and flexible

• Ideal for harsh environment
• Available with all types of connectors and fibers

• 100% factory terminated and tested

• Individual test report and traceability ID number

• Single or double armored

Technical Details

SINGLE FERRULE CONNECTOR SPECIFICATION

Parameters	IL – Max	IL – Typical	RL (PC/APC)
SM – Standard	< 0.30 dB	< 0.20 dB	> 55/65 dB
MM – Standard	< 0.30 dB	< 0.18 dB	> 28 dB

CABLE CHARACTERISTICS

Cable Characteristics	Units
Cable Material		LSZH/ PVC
Cable Diameter	mm	1F – 3.0 / 2F – 3.3
Strength Member		Aramid + Steel Mesh
Max Crush resistance	N/100mm	3000
Max tensile load	N	300
Operating Temperature	˚C	-25 to 70

Ordering Information

Datasheet Download
