Product : Simplex Spiral Armored Cable Multi-Mode

Category :
								Indoor Fiber Cable

Sub-Category :
										Spiral Tube Armored Cable

Item Code :

Sub-Title : OEM Indoor Simplex Multi Mode MM 50/125 OM1 OM2 OM3 Spiral Steel Armored Fiber Optic Cable

Key Tags :  Armored Cable,Simplex,1CoreTight Buffer Fiber, Multi-Mode, Aramid Yarns Strength Member, LSZH Jacket

Applications : All kinds of connector
Fiber optic pigtails, patch cords
Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
Fiber optic equipment and instrument
Indoor cabling,building cabling,LAN, etc
Long distance, outdoor/indoor cabling, trunking,etc
Backbone network to the equipment in the building
Small installation space cabling

General Description

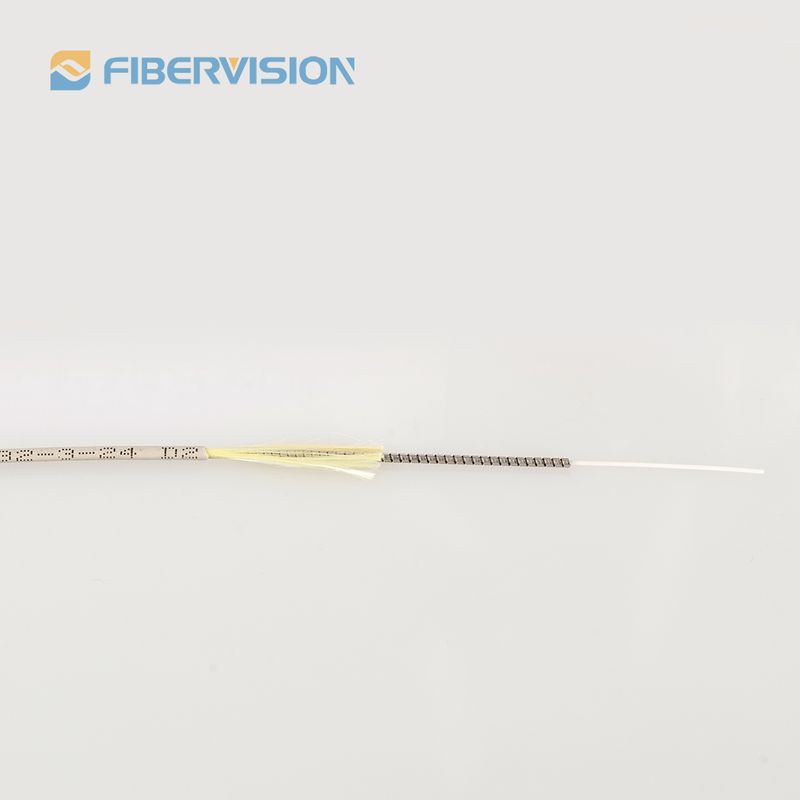

Simplex Tube Spiral Armored Cable, 900μm or 600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

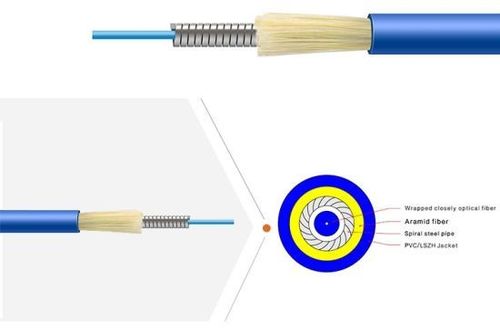

The structure of the cable is put 900μm or 600μm tight buffer fibers with aramid yarn,then covered with a layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally into fiber optic cable with PVC or LSZH sheath.

Product Features

•Good mechanical and environmental characteristics
• Flame retardant characteristics meet the requirements of relevant standards
• The mechanical characteristics of jacket meet the requirements of relevant standards
• Soft, flexible, easy to lay and splice, and with big capacity data transmission
• LSZH and flame retardant sheath

• Tight tube and dry core structure make is simplify installation and maintenance

Technical Details

Cable Dimensions and Constructions

Item		Description
Tight Buffer Fiber	Fiber count	1
	Diameter	0.9 mm
	Buffer material	LSZH
	Color code	Blue
Spiral Tube	Diameter	Φ 2.0mm
Spiral Tube	Material	SUS 200CU
Strength member		Aramid yarns
Outer Sheath	Material	LSZH
Outer Sheath	Color code	White
Cable diameter		4.0±0.2mm
Cable weight		25kg/km

Mechanical and Environmental Characteristics

Item		Description
Tensile Strength	IEC 60794-1-2-E1	Short-term	200N
		Long-term	100N
Crush Resistance	IEC 60794-1-2-E3	Short-term	3000N/100mm
		Long-term	2000N/100mm
Temperature Range	IEC 60794-1-2-F1	-20℃-+60℃
Bending Radius	Static	10xCable diameter
	Dynamic	20xCable diameter

Ordering Information

Module	xxx	xx	X	X
YD-	cores	Fiber model	Sheath Material	Fiber type
(model)	001=1	SM=9/125um	1=PU	1=G652D
	002=2		2=LSZH	2=G655
	004=4		3=PVC	3=G657A1
	006=6		4=PE	4=G657B3
	008=8		5=else	5=OM1
	012=12	MM=62.5/125um		6=OM2
	016=16	MM=50/125um		7=OM3
	024=24			8=OM4
	048=48			9=OM5
	…….			…….

Datasheet Download
