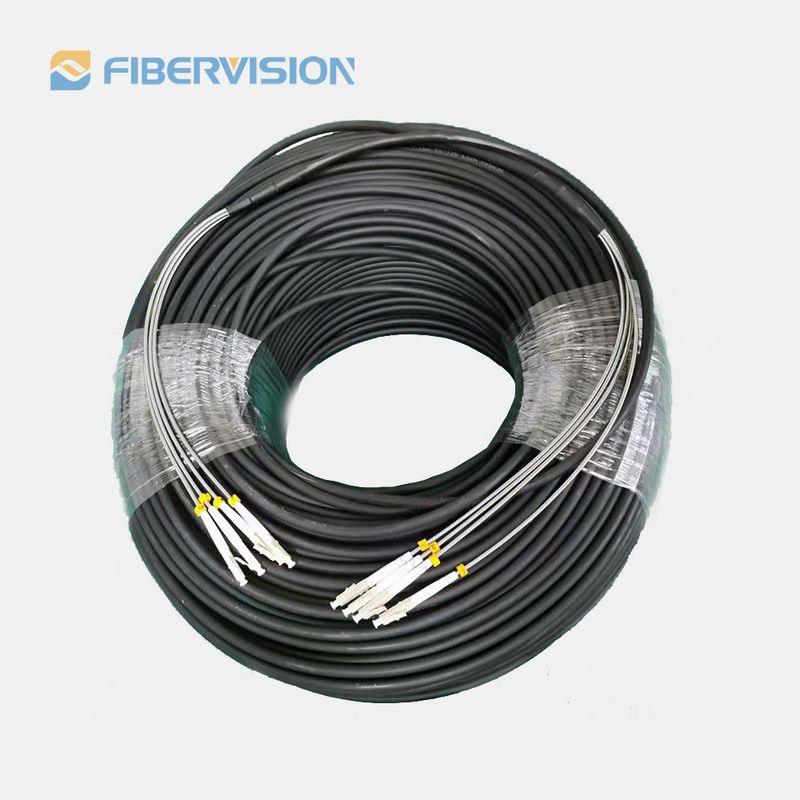

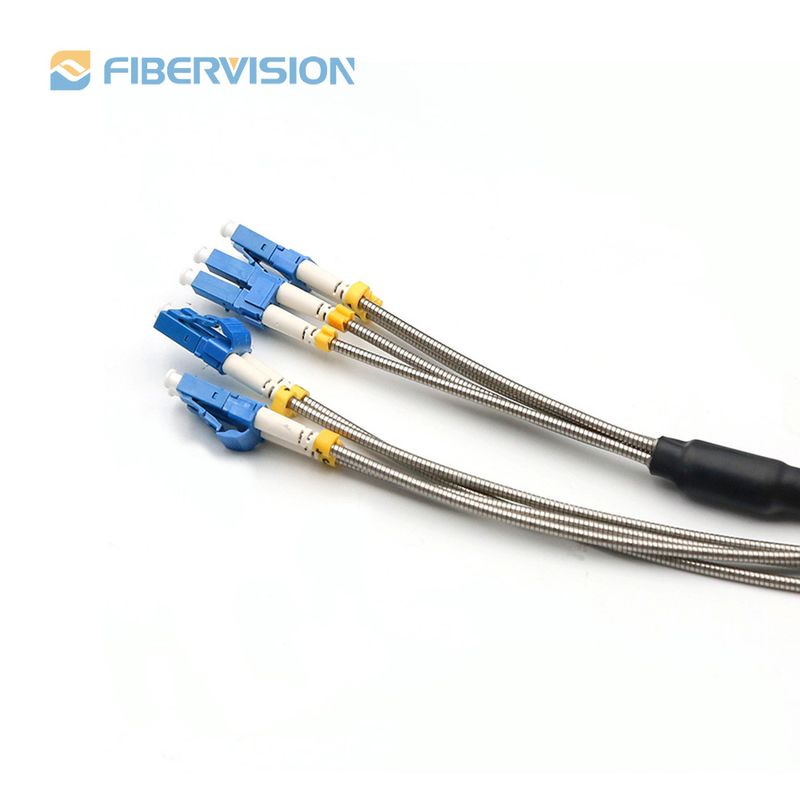

Product : 4 Cores CPRI Patch Cable DLC-DLC for BBU-RRU

Category :
								Fiber Cable Assembly

Sub-Category :
										CPRI Patch Cable for FTTA

Item Code :

Sub-Title : 1 2 4 8 CoreOutdoor cable CPRI FTTA Armored Patch Cord Single Mode Duplex LC Connector LSZH Fiber Patch Cable for BBU-RRU

Key Tags : Armored Patch Cable,No Housing,Single-Mode, 4 cores,Duplex LC-LC,LSZH

Applications : 1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH(RRU).
3.Deployment in Remote Radio Head cell tower applications.
FTTA & FTTH Base station, BTS installation, BBU to RRU Indoor/outdoor building cabling – Harsh environments application – Long haul networking -Direct burial and aerial lashing

General Description

CPRI stands for Common Public Radio Interface, used to carry data between cell sites and base stations. CPRI fiber patch cable is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.

Product Features

1.Easily add/install jumper cables for a future expansion.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Flexibility with small bending radius and excellent cable routing properties.
5.End-face geometry and quality superior than IEC and Telcordia standards.
6.The material in the jumpel cable are all-weather and UV-resistant.
7.Mechanical performance: IEC 61754-20 standard.
8.RoHS and REACH materials compliant.

Technical Details

Parameters	SC,LC,FC,E2000			ST,MU		MTRJ
	SM		MM	SM	MM	SM	MM
	UPC	APC	UPC	UPC	UPC	UPC	UPC
Work Wavelength (nm)	1310,1490,1550		850,1300	1310,1490,1550	850,1300	1310,1490,1550	850,1300
Insertion Loss(dB)	≤0.25	≤0.20	≤0.25	≤0.25	≤0.25	≤0.25	≤0.25
Return Loss(dB)	≥55	≥65	≥35	≥50	≥35	≥50	≥35
Repeatability(dB)	≤0.10
interchangeability(dB)	≤0.20
Plug Testing(time)	≥1000
Tensile Strength(N)	0.9mm(9N);2.0mm(70N);3.0mm(75N)
Durability(dB)	≤0.20
Operation Temperature(°C)	-40~+85
Storage Termperature(°C)	-40~+85
End Face Geometry(3D)	Radius of Curvature:5-12mm(APC); 10-25mm(PC) ;(LC/PC 7-25mm) Apex Offset: 0-50um; Fiber Height : -100 to +100nm; Angle: 0°±2°(PC);8°±3°(APC)

Mechanical Characteristics
Test	Conditions
Endurance	500 matings
Vibration	Frequency: 10 to 55Hz,Amplitude: 0.75mm
Cable retention	400N (main cable); 50N (connector part)
Strength of coupling mechanism	80N for 2 to 3mm cable
Cable torsion	15N for 2 to 3mm cable
Fall	10 drops, 1m drop height
Static lateral load	1N for 1h (main cable); 0.2N for 5min (ranch part)
Cold	-25°C, 96h duration
Dry heat	+70°C, 96h duration
Change of temperature	-25°C to +70°C, 12 cycles
Humidity	+40°C at 93%, 96h duration
