								Optic Cable Assembly

Sub-Category :
									CPRI Patch Cable for FTTA

Item Code :

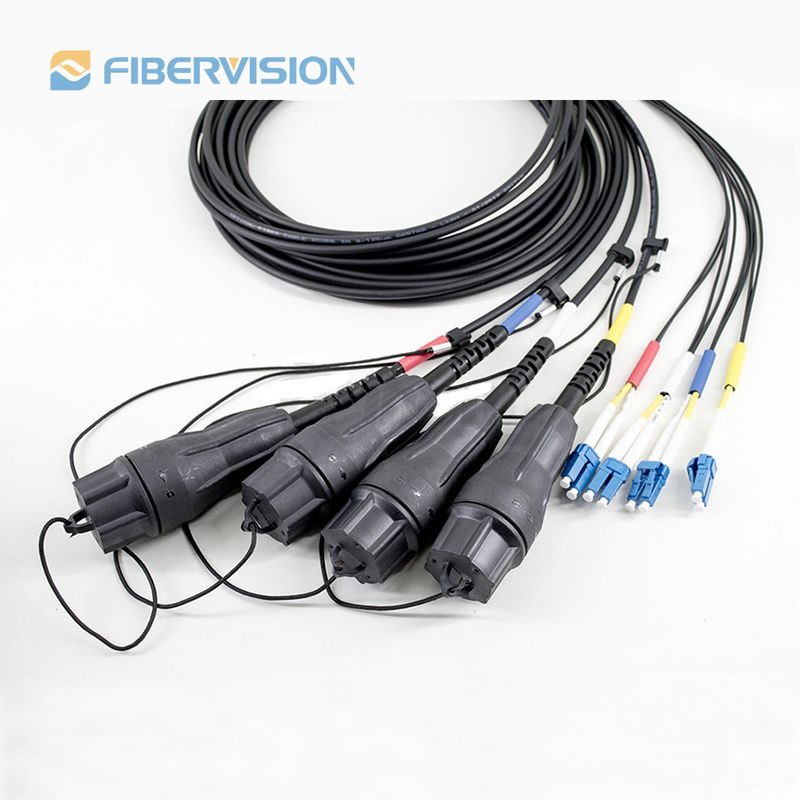

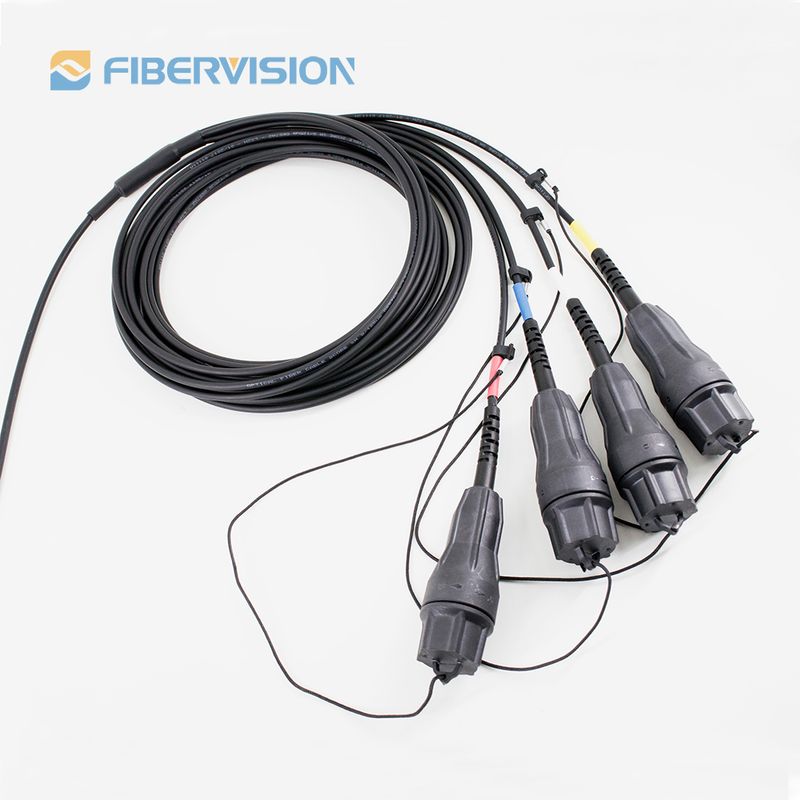

Product Name : 8 Cores CPRI Patch Cable with FullAXS-DLC

Key Points : Armored Patch Cable,Single-Mode, 8 core, FullAXS-DLC,LSZH

Applications : FTTA,FTTH Application.
3G,4G,5G Base Station.
Horizontal and Vertical Cabling.
BBU,RRU,RRH,LTE

General Description

IP-FX FullAXS is a outdoor connector that designed to provide IP-67 water and dust seal over Fullaxs-LC Duplex, MTP/MPO and other connector types. Angnet's FullAXS Connector Cable Assemblies meets the needs of next generation WiMAX and Long Term Evolution (LTE) Fiber/Power/Signal To The Antenna (x-TTA) connectivity designs, This allows for the usage of strong cable assemblies on the outdoors.Features include a water tight seal up to IP67 levels, Applications include WiMAX and LTE Base Stations, Remote Radio Heads (RRH), FTTA outdoor applications.

Product Features

Factory terminated (tested cables) or Field installable version available

Ruggedised sealing system for Fiber-to-the-Antenna (FTTA) and industrial applications

IP67 water, dust proof and corrosion resistant, UV-resistant

Open bulkhead for easy access to SFP

Duplex LC interface

Waterproof, dust proof and corrosion resistant

Robust bayonet locking for easy, fast and secure mating

Expansion to RJ45 and power possible

Technical Details

Fiber Type	SM	MM
Connector Type	FullAXS-LC
Insertion Loss(Typical)	0.12	0.12
Insertion Loss(Max)	0.25	0.25
Return Loss	≥ 50dB(UPC)	≥ 35dB
	≥ 60dB(APC)
Durability	(1000 matings) < 0.2dB
Interchangeability	< 0.2dB
Operation Temperature	-40℃ ~ +75℃
Storage Temperature	-40℃ ~ +85℃

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
