								Optic Cable Assembly

Sub-Category :
									CPRI Patch Cable for FTTA

Item Code :

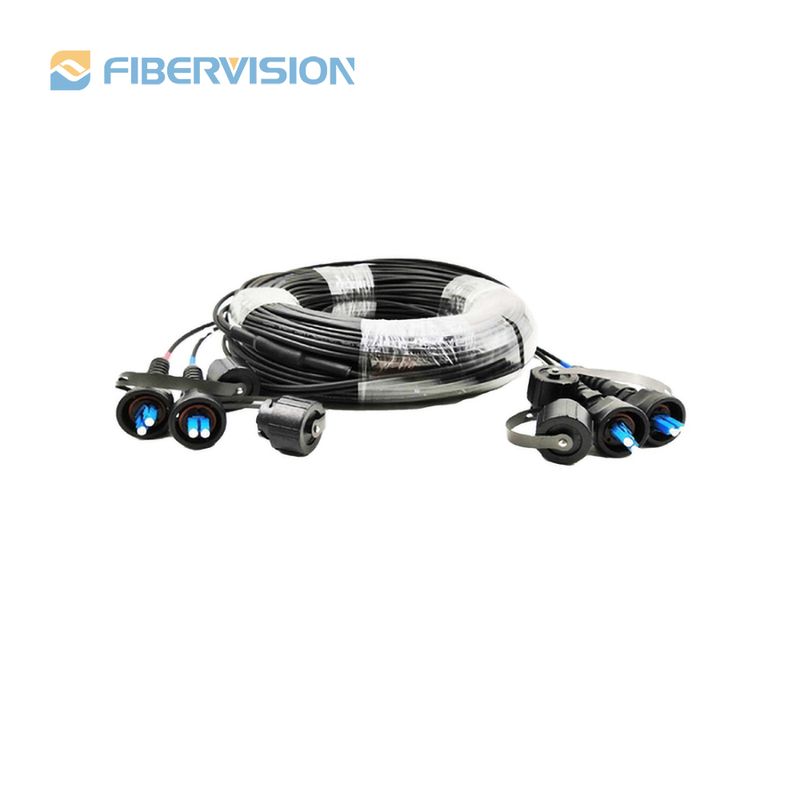

Product Name : 4 Cores CPRI Patch Cable with ODVA-ODVA

Key Points : Armored Patch Cable,Single-Mode,Duplex 4 core, ODVA-ODVA,LSZH

Applications : FTTA,FTTH Application.
3G,4G,5G Base Station.
Horizontal and Vertical Cabling.
BBU,RRU,RRH,LTE

General Description

ODVA fiber optic patch cable assemblies provides low cost ideal solution for CATV, RRH remote radio heads, FTTX harsh environment connectivity. This ODVA-LCDX, ODVA-SC and ODVA-MPO is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use.

Product Features

IP67 rated for water and dust protection, corrosion resistance
Screwed mating mechanism to ensure the connection
Shock, vibration and mechanical crush resistance
Designed for harsh environment application with a broad temperature range
Customized cable length, and fiber type
Plug and play, easy and reliable, cost effective connection
Flame retardant and waterproof

Technical Details

Connector	ODVA-ODVA

Fiber Core	4
Mode	Singlemode		Multimode
Operating Wavelength(nm)	1310/1550		850/1310
Polishment	UPC	APC	UPC
Insertion Loss(Max.dB)	0.2		0.3
Return Loss(Min.dB)	55	60	35
Mating times	500 Min
Durability(Max.dB)	0.2
Reaptability(Max.dB)	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85

Ordering Information

Datasheet Download
