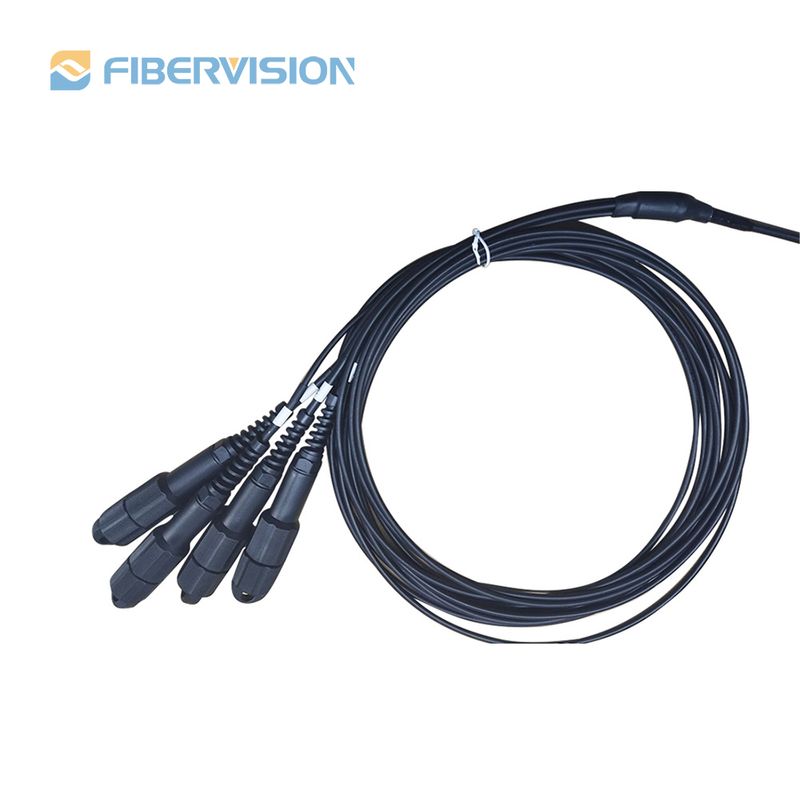

Product : 8 Cores CPRI Patch Cable with PDLC Housing

Category :
								Fiber Cable Assembly

Sub-Category :
										CPRI Patch Cable for FTTA

Item Code :

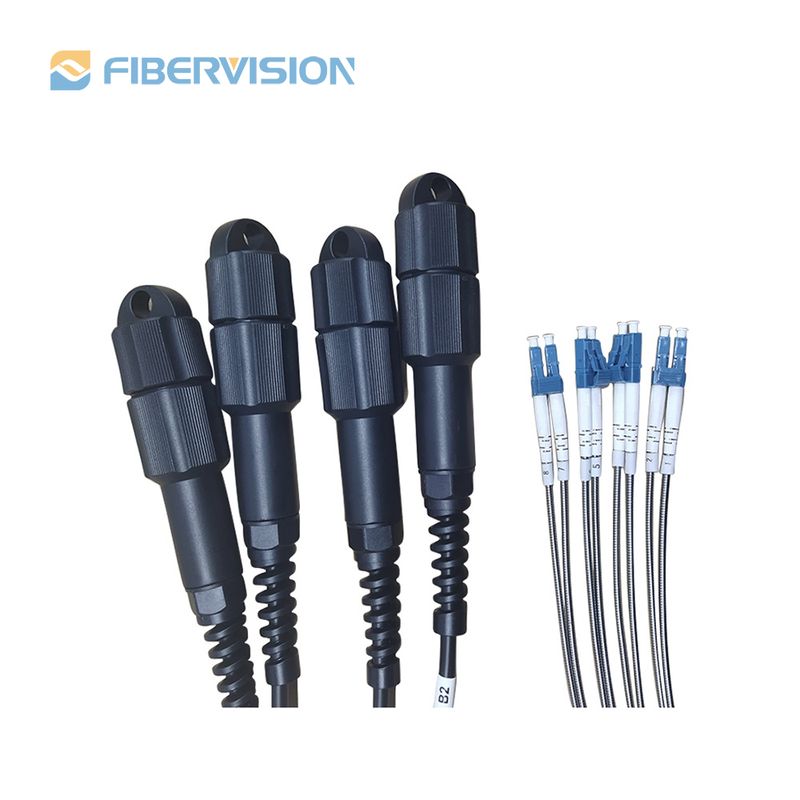

Sub-Title : Outdoor FTTA Waterproof Patch Cord Armored CPRI Cable Singlemode 8Core PDLC To DLC for 4G 5G base station

Key Tags : Armored Patch Cable,Single-Mode,8 Core, Housing PDLC-DLC,LSZH

Applications : Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FTTA & FTTH Base station, BTS installation, BBU to RRU Indoor/outdoor building cabling – Harsh environments application – Long haul networking -Direct burial and aerial lashing

General Description

Product Features

Technical Details

Connector: PDLC--PDLC Housing
Fiber Number	8 Core
Insertion loss	Single mode:Typical l value≤0.15dB;Maximum≤0.30
Insertion loss	Multi mode:Typical l value≤0.15dB;Maximum≤0.25
Return loss	SM: ≥ 60dB (APC); ≥ 50dB (UPC) MM:≥ 35dB (UPC)

Mechanical Characteristics
Test	Conditions
Endurance	500 matings
Vibration	Frequency: 10 to 55Hz,Amplitude: 0.75mm
Cable retention	400N (main cable); 50N (connector part)
Strength of coupling mechanism	80N for 2 to 3mm cable
Cable torsion	15N for 2 to 3mm cable
Fall	10 drops, 1m drop height
Static lateral load	1N for 1h (main cable); 0.2N for 5min (ranch part)
Cold	-25°C, 96h duration
Dry heat	+70°C, 96h duration
Change of temperature	-25°C to +70°C, 12 cycles
Humidity	+40°C at 93%, 96h duration
