Product : FTTA CPRI Patch Cable with PDLC-DLC

Category :
								Fiber Cable Assembly

Sub-Category :
										CPRI Patch Cable for FTTA

Item Code :

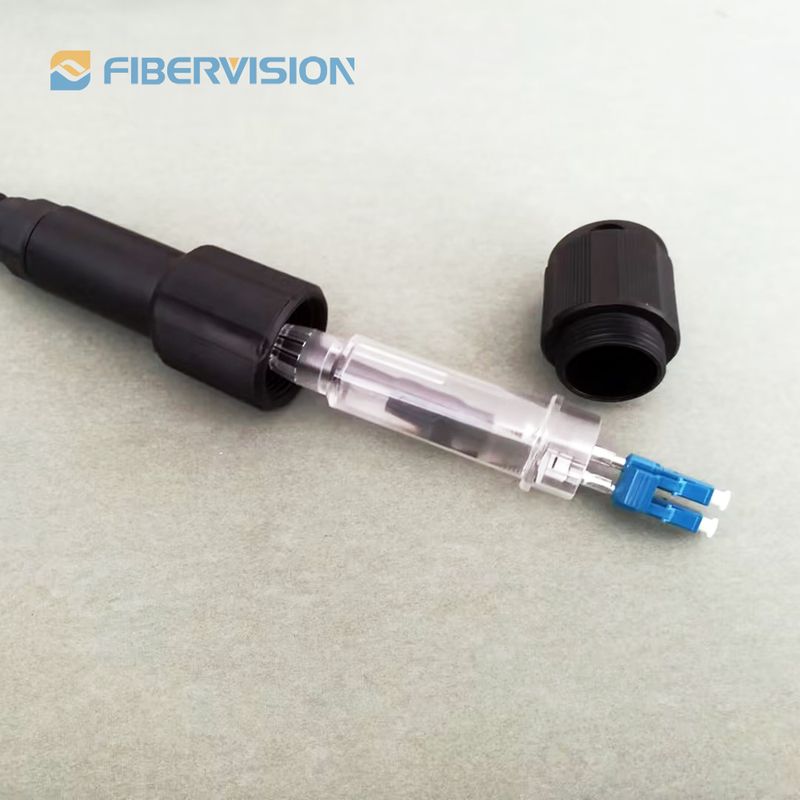

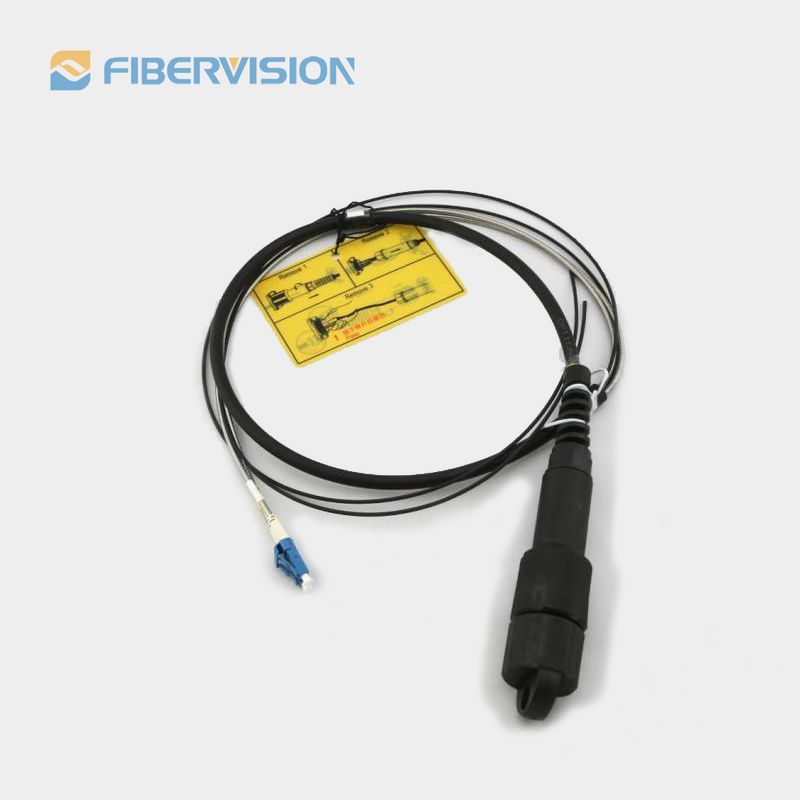

Sub-Title : PDLC-DLC CPRI Fiber Patch Cord LC Duplex Armoured SM FTTA Waterproof 7.0 Mm fiber optic jumper for 4G 5G base station

Key Tags : Armored Patch Cable,Single-Mode,2 Core, PDLC-DLC,LSZH

Applications : Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FTTA & FTTH Base station, BTS installation, BBU to RRU Indoor/outdoor building cabling – Harsh environments application – Long haul networking -Direct burial and aerial lashing

General Description

PDLC connectors and required optical cables have become standard interface applications for 4G, 5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.

Product Features

Standard Duplex LC connector, low IL, high RL.

IP67 protection, salt-mist proof, humidity proof,dust proof.

Easy Operation, reliable and cost-effective Installation.

100% optically tested to ensure quality performance assemblies.

Technical Details

Connector: PDLC--DLC
Item	Parameter
Insertion loss	Single mode:Typical l value≤0.15dB;Maximum≤0.30
Insertion loss	Multi mode:Typical l value≤0.15dB;Maximum≤0.25
Return loss	SM: ≥ 60dB (APC); ≥ 50dB (UPC) MM:≥ 35dB (UPC)

Mechanical Characteristics
Test	Conditions
Endurance	500 matings
Vibration	Frequency: 10 to 55Hz,Amplitude: 0.75mm
Cable retention	400N (main cable); 50N (connector part)
Strength of coupling mechanism	80N for 2 to 3mm cable
Cable torsion	15N for 2 to 3mm cable
Fall	10 drops, 1m drop height
Static lateral load	1N for 1h (main cable); 0.2N for 5min (ranch part)
Cold	-25°C, 96h duration
Dry heat	+70°C, 96h duration
Change of temperature	-25°C to +70°C, 12 cycles
Humidity	+40°C at 93%, 96h duration

Ordering Information
