Product Name : Enhanced Performance Fiber Units (EPFU) Air-blown Cable

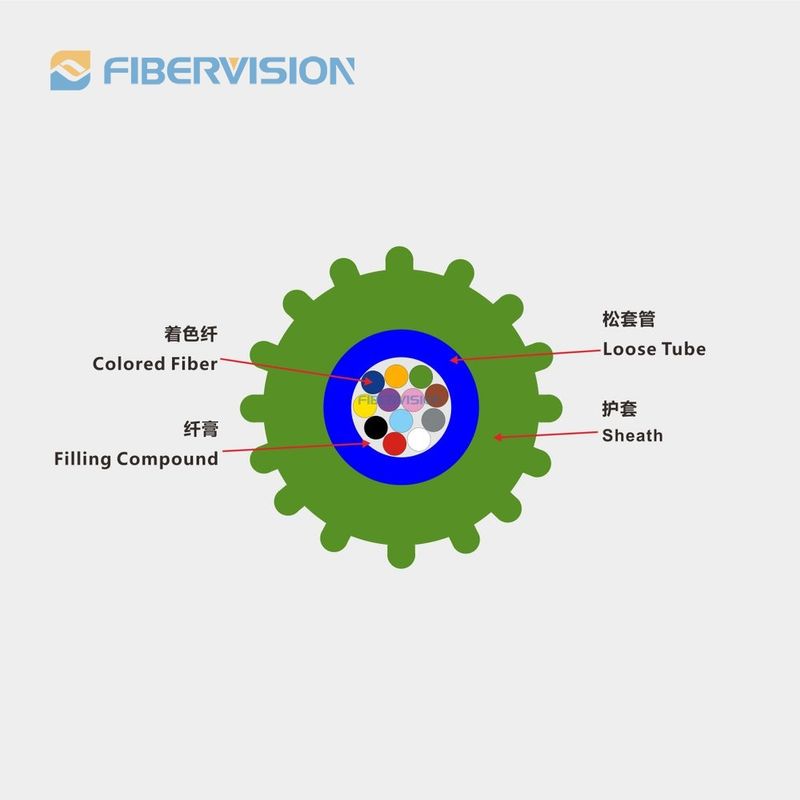

Key Points : 1-12 colored Fiber, uni-tube, gel filling, LSZH jacket

Applications : FTTH Network GPON, EPON.
Rural communication
Local trunk line
CATV
Computer networks system

General Description

Enhanced Performance Fiber Unit (EPFU) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.


Product Features

Smaller diameter
Frees up capital to expand network and client base
Network design flexibility
5/3.5mm microduct suitable
Easy to upgrade
Greater blowing distance
Fiber: G.G652D, G.657A1, G.657A2

Technical Details

Specification:

Fiber count (F)	Nominal diameter (mm)	Nominal weight (kg/km)	Min. bend radius (mm)	Temperature (℃)
2	1.15±0.05	1	50	-30 to +60
4	1.15±0.05	1	50
6	1.35±0.05	1.3	60
8	1.50±0.05	1.8	80
12	1.65±0.05	2.2	80

Blowing Test:

Fiber count (F)	Blowing machine	Suitable microduct (mm)	Blowing pressure (bar)	Blowing distance (m)	Blowing time (min)
2	PLUMETTAZ UM25 ERICSSON F CATWAY FBT-1.1	3/2.1 or 5/3.5	7/10	500/1000	10/18
4		3/2.1 or 5/3.5		500/1000	10/18
6		5/3.5		500/1000	10/18
8		5/3.6		500/1000	13/18
12		5/3.5		500/800	15/20

Attenuation:

fiber Type	SM G.652D、G.655、G.657	MM 62.5/125
Attenuation	0.38dB/km max @1310nm 0.26dB/km max @1550nm	3.5dB/km max @850nm 1.5dB/km max @1300nm
