Fiber Distribution Box
Fiber Distribution Box
2023-12-08
FTTH, FTTB, FTTC
Telecommunication Network
Local Area Network
CATV

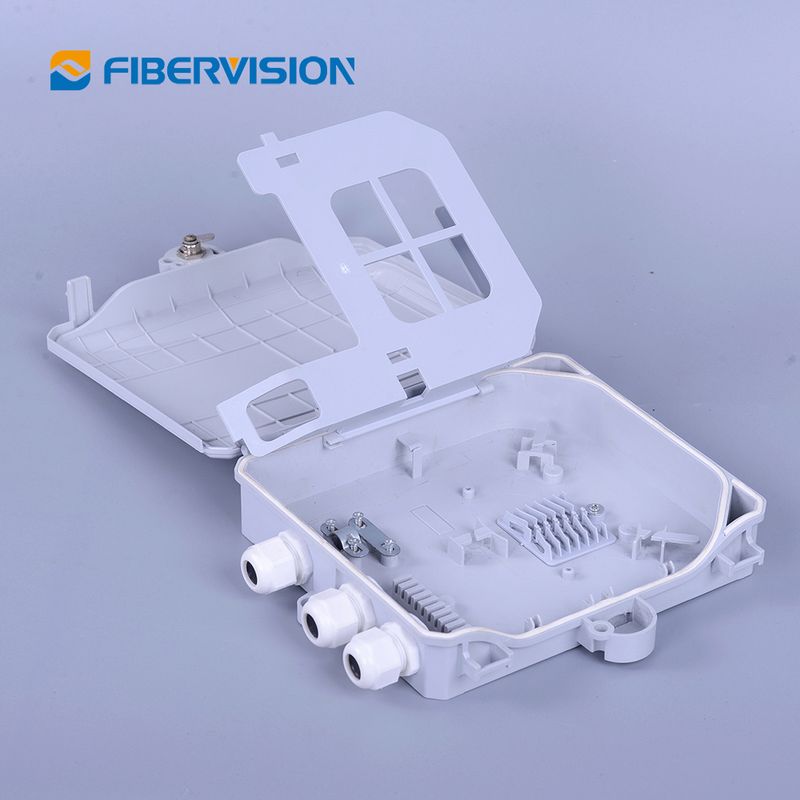

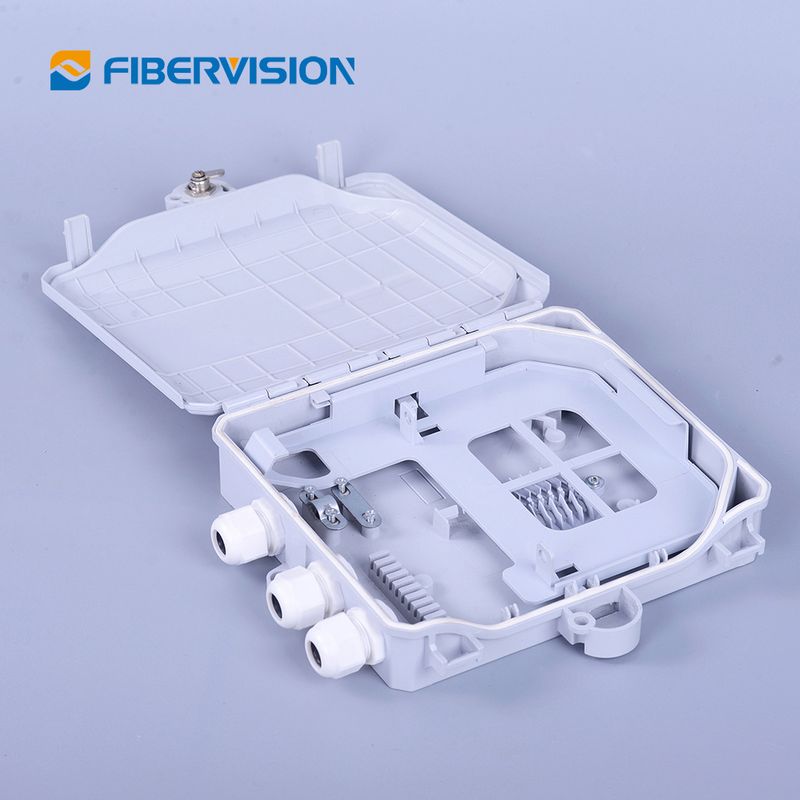

Fiber Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. We provide Optical Distribution Box made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.
Water-proof design with IP65 Protection level
Integrated with splice tray and cable management system
Fiber bending radius control more than 40mm
Suitable for the fusion splice or mechanical splice
1×8 blockless spitter can be installed as an option
Max. Capacity | SC: 8 fibers LC: 16 fibers |
Max. Inlet Cable Diameter | 12mm |
Inlet Cable Number | 2pcs |
Max. Outlet Cable Diameter | 2×3mm |
Outlet Cable Number | 8pcs |
Protection Grade | IP65 |
Installation Method | Wall mounting and pole mounting (pole rings are optional) |
Working Environment | Outdoor and indoor |
Dimension | 230(H)*180(W)*55(D)mm |
Working Temperature | -20°C~+60°C |
Storage Temperature | -40°C~+70°C |
Relative Humidity | 0%~95% |
Air Pressure | 70~106KPa |
Model | FV-FDB-D08B-3WP |
XX: Adapter | None: without adapter |
XX: Pigtail | None: without pigtail |
XX: Splitter | None: without splitter |
XX: Mounting Method | W: wall mounting |
