Product Name : Fiber Distribution Box FDB-E12F-2WP

Key Words : outdoor FTTH 8 12 core FTB FSB Fiber Optic Distribution box Terminal Splitter splice junction box fiber terminal box

Applications : FTTH, FTTB, FTTC
Telecommunication Network
Local Area Network
CATV

Description
Features
Parameters
Ordering Info
DataSheet

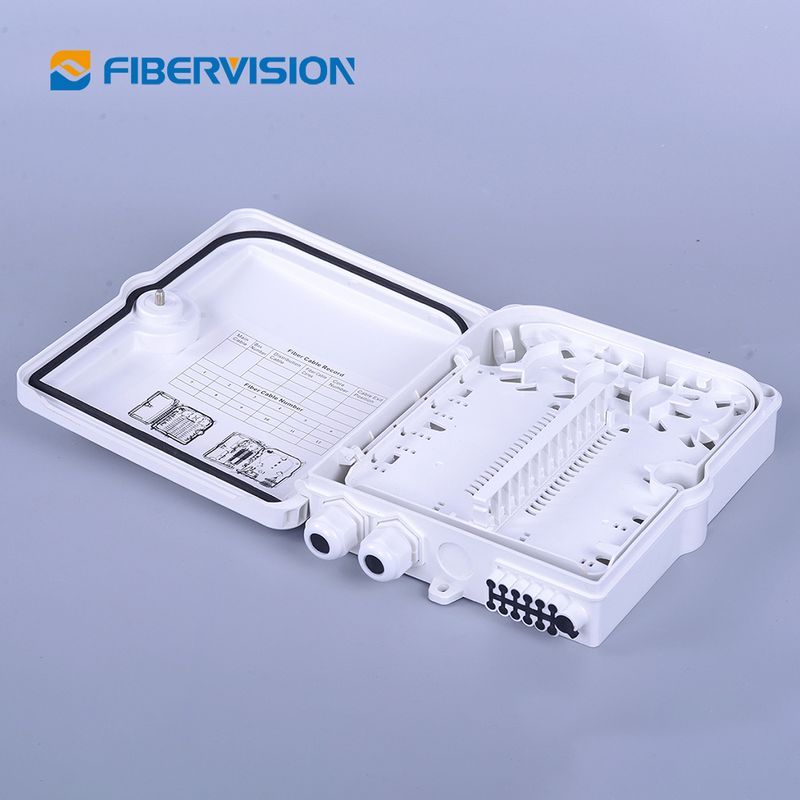

Fiber Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. We provide Optical Distribution Box made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

Water-proof design with IP65 Protection level

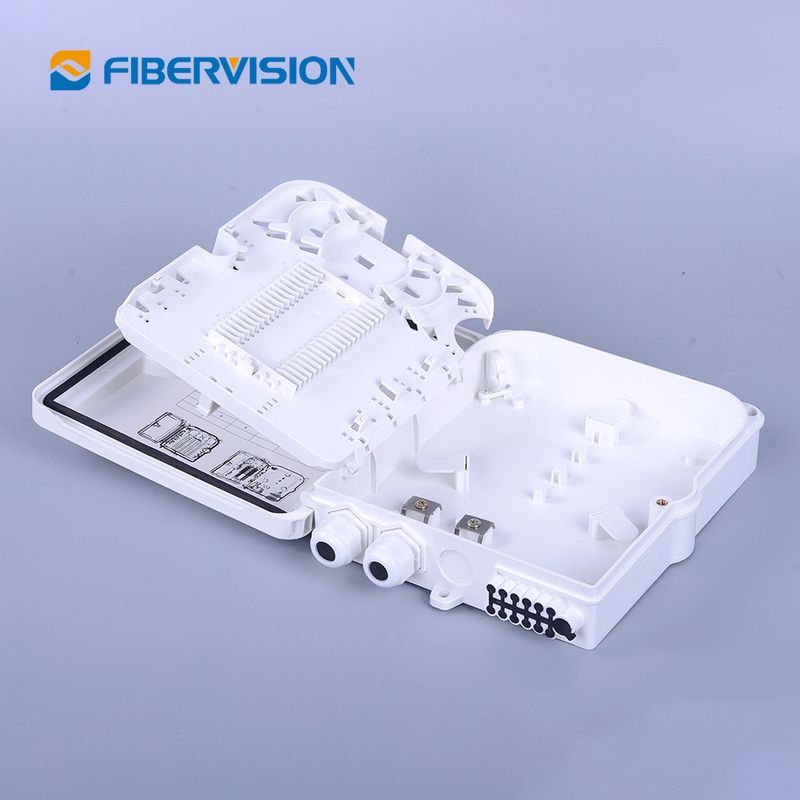

Integrated with splice tray and cable management system

Fiber bending radius control more than 40mm

Suitable for the fusion splice or mechanical splice

1×8 blockless spitter can be installed as an option

Specification:

Max. Capacity	SC: 12 fibers LC: 24 fibers
Max. Inlet Cable Diameter	15mm
Inlet Cable Number	2 cable glands or 1 uncut cable port
Max. Outlet Cable Diameter	2×3mm
Outlet Cable Number	12pcs
Protection Grade	IP65
Installation Method	Wall mounting and pole mounting (pole rings are optional)
Working Environment	Outdoor and indoor
Dimension	225(H)200(W)65(D)mm
Working Temperature	-20°C~+60°C
Storage Temperature	-40°C~+70°C
Relative Humidity	0%~95%
Air Pressure	70~106KPa

Model	FV-FDB-E12F-2WP
XX: Adapter	None: without adapter SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC
XX: Pigtail	None: without pigtail SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC
XX: Splitter	None: without splitter B12: 1×2 B14: 1×4 B18: 1×8
XX: Inlet Cable Port	CG: waterproof cable gland UN: uncut cable port
XX: Mounting Method	W: wall mounting P: pole mounting
