2023-12-14

Category :
ODN Cabling Product
Sub-Category :
Fiber Distribution Box
Item Code :

Product Name :

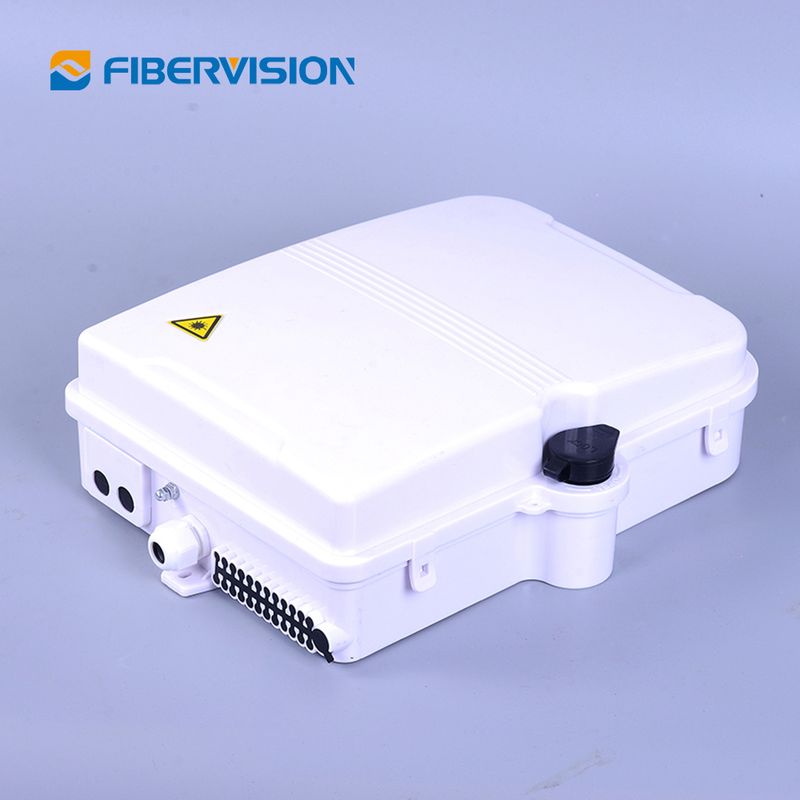

Fiber Distribution Box FDB-J24F-1W2U

Key Words :
IP66 waterproof Fiber optic splice closure 24 Core Waterproof Terminal Box junction box

Applications :

- PON networks;
- Widely used in FTTX systems such as: FTTA, FTTB, FTTH, FTTO, ...
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- Data communications networks
- Telecommunication networks;


Fiber Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. We provide Optical Distribution Box made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

Burglar-proof padlock

Efficient cable management

UV protection and anti-aging material

Water-proof design with IP65 Protection level

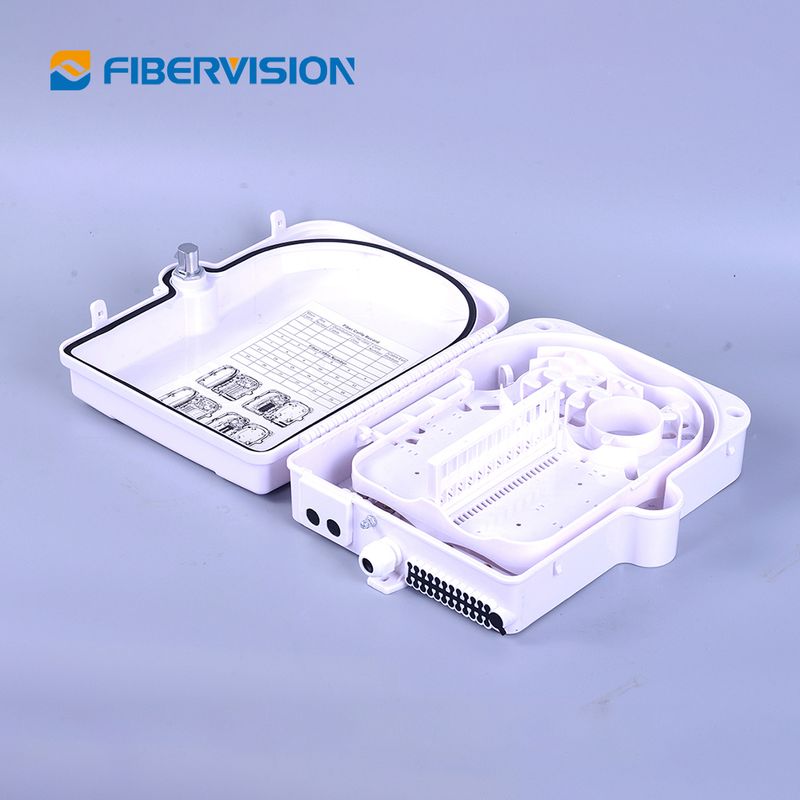

Integrated with splice tray and cable management system

Fiber bending radius control more than 40mm

Suitable for the fusion splice or mechanical splice

1×8 or 1×16blockless splitter can be installed as an option


Specification:

Product Name

24 Cores Outdoor Fiber Optic Termination Box

Model No.

FDB-J24F

Full Loading 1

with 24 PCS SC SIMPLEX ADAPTOR

Full Loading 2

with 2PCS 1x 8 PLC or 1PCS 1x16 PLC

Product Size (mm)

330x275x100

Fiber Count

24 C

Adataptor Type

SC /LC /FC

Unit Weight (kg)

1.6

Qty Per Carton

10

Packing Size (CM)

68 x 36 x 60 mm

Gross weight

17 KGS

Volume

0.15CBM

Optional Accessory

Adaptors,Pigtails, PLC

Working Temperature

-40~ 60 ℃

Installation Method

wall mounted

Application

FTTH, PON ,OBD Cabling system

Warranty

3Years

Feature

Wet-proof, dust-proof and anti-aging



Model

FV-FDB-G16F-2WP

XX: Adapter

None: without adapter
SU: SC/UPC
SA: SC/APC
LU: LC/UPC
LA: LC/APC

XX: Pigtail

None: without pigtail
SU: SC/UPC
SA: SC/APC
LU: LC/UPC
LA: LC/APC

XX: Splitter

None: without splitter
B12: 1×2
B14: 1×4
B18: 1×8
B116: 1×16

XX: Inlet Cable Port

CG: waterproof cable gland
UN: uncut cable port

XX: Mounting Method

W: wall mounting
P: pole mounting

XX: Box Color

G: gray
B: black
