Fiber Distribution Box
Fiber Distribution Box
2023-12-14
- PON networks;
- Widely used in FTTX systems such as: FTTA, FTTB, FTTH, FTTO, ...
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- Data communications networks
- Telecommunication networks;

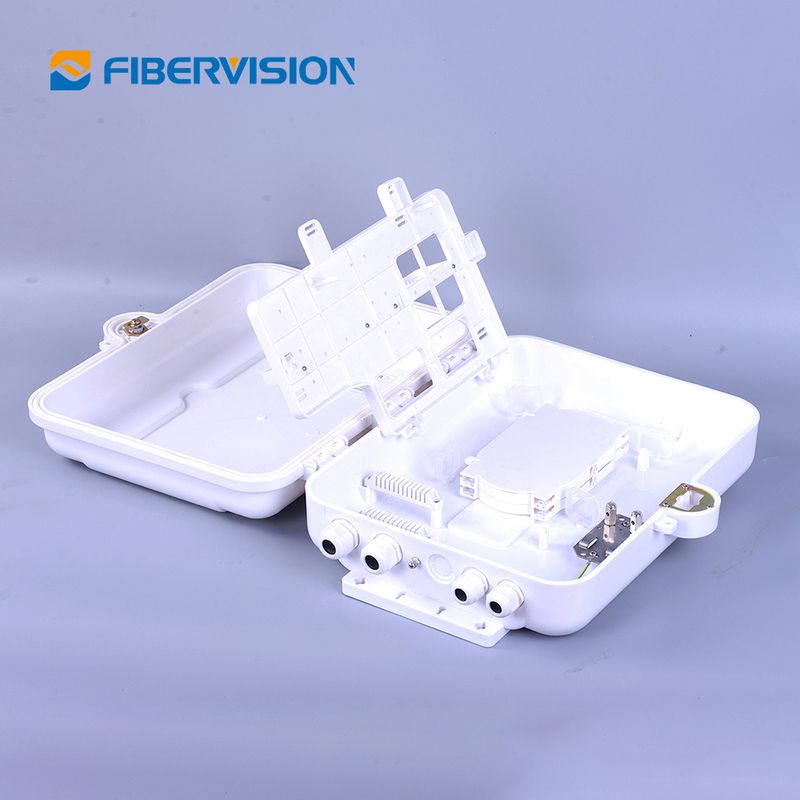

Fiber Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. We provide Optical Distribution Box made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.
Burglar-proof padlock
Efficient cable management
UV protection and anti-aging material
Water-proof design with IP65 Protection level
Integrated with splice tray and cable management system
Fiber bending radius control more than 40mm
Suitable for the fusion splice or mechanical splice
1×8 or 1×16blockless splitter can be installed as an option
Specification:
Adapter Capacity | SC Simplex |
32 | |
Dimensions (W*H*D) | 350 mm*340 mm*120 mm |
Number of Cable Entrance | Max Diameter 24mm*Q2, 12mm*Q2 |
Number of Cable Exit | Max Diameter 30mm*Q2, Up to 32 Drop Cables |
Weight | 3.5 KG |
Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Optical Splitter, Splice Tray |
Installation | Wall-Mounted or Pole-Mounting |
Model | FV-FDB-K32F-5WP |
XX: Adapter | None: without adapter |
XX: Pigtail | None: without pigtail |
XX: Splitter | None: without splitter |
XX: Inlet Cable Port | CG: waterproof cable gland |
XX: Mounting Method | W: wall mounting |
XX: Box Color | G: gray |
