Product Name : Fiber Distribution Box FDB-A06F

Key Words : Outdoor 1*16 PLC splitter cto otb 16 ports fiber optical distribution box optical terminal box

Applications : FTTH, FTTB, FTTC
Telecommunication Network
Local Area Network
CATV

Description
Features
Parameters
Ordering Info
DataSheet

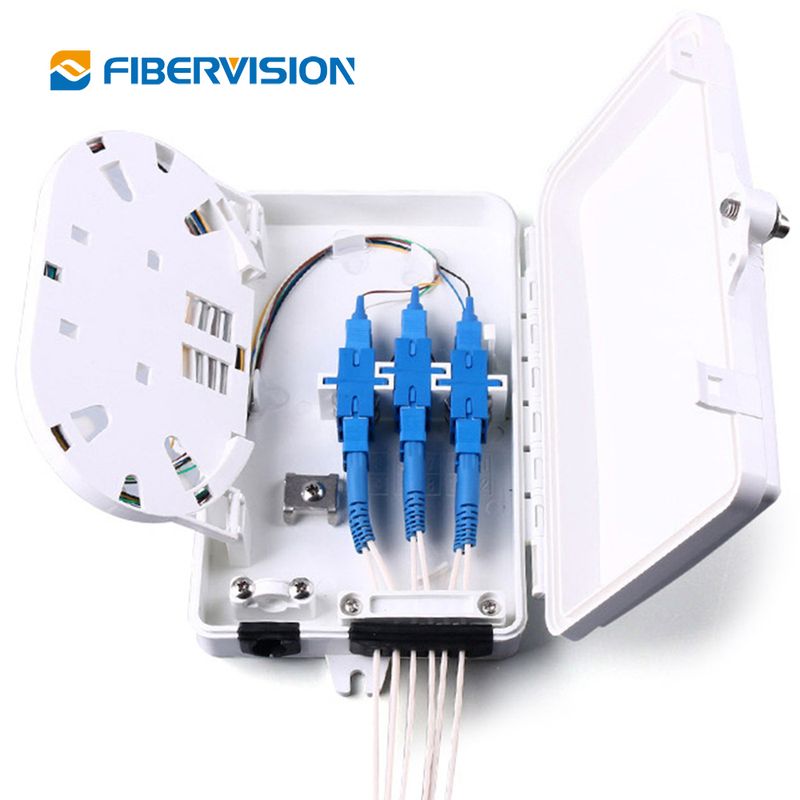

Fiber Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. We provide Optical Distribution Box made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

Water-proof design with IP65 Protection level

Integrated with splice tray and cable management system

Fiber bending radius control more than 40mm

Suitable for the fusion splice or mechanical splice

1×6 blockless spitter can be installed as an option

Max. Capacity	SC: 6 fibers LC: 12 fibers
Max. Inlet Cable Diameter	10mm
Inlet Cable Number	1pc
Max. Outlet Cable Diameter	3×3mm flat drop cable
Outlet Cable Number	6pcs
Protection Grade	IP65
Installation Method	Wall mounting
Working Environment	Outdoor and indoor
Dimension	210(H)140(W)40(D)mm
Working Temperature	-20°C~+60°C
Storage Temperature	-40°C~+70°C
Relative Humidity	0%~95%
Air Pressure	70~106KPa

Model	FV-FDB-A06F
XX: Adapter	None: without adapter SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC
XX: Pigtail	None: without pigtail SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC
XX: Splitter	None: without splitter B12: 1×2 B14: 1×4 B16: 1×6
