High quality Multi-cores Fan-out pigtails SC-UPC 12 Colors Break-out Pigtail Single Mode Fiber Laser Pigtail Fiber Optic Pigtail-FIBERVISION

2023-12-15

Category :
								Optic Cable Assembly

Sub-Category :
									Fiber Optic Pigtails

Item Code :

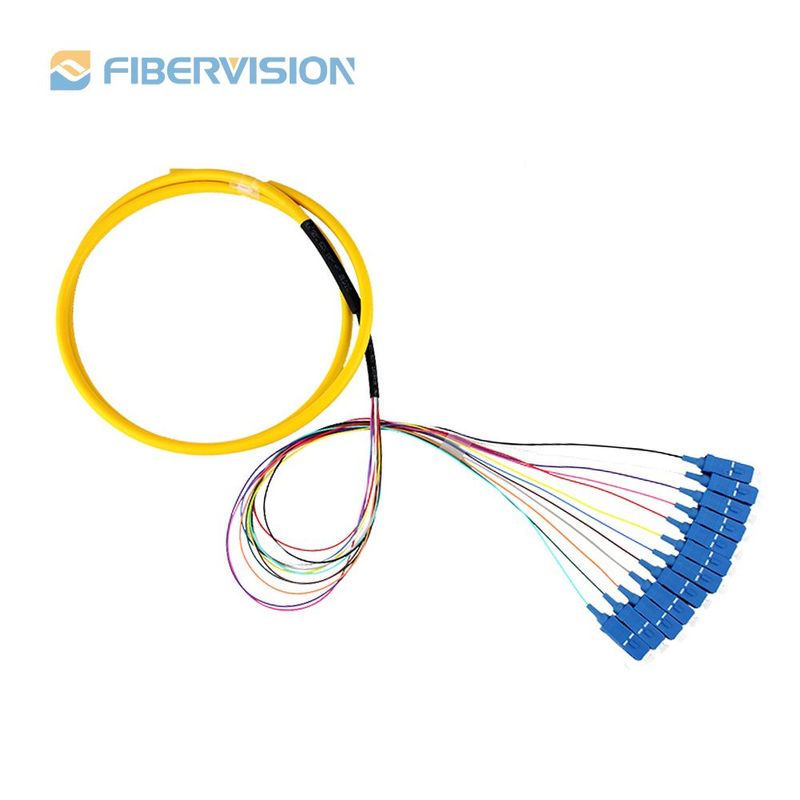

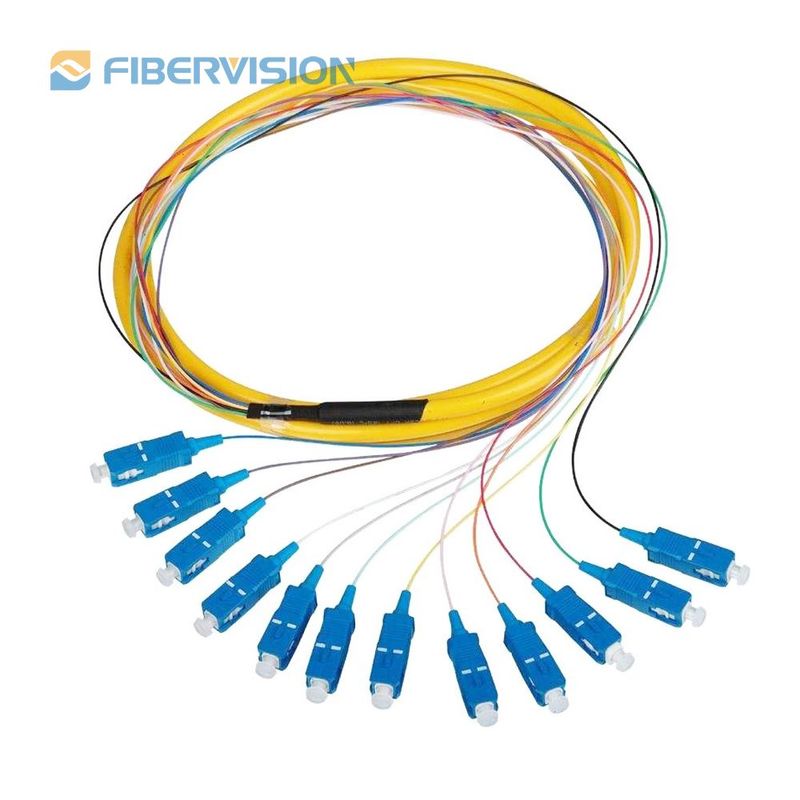

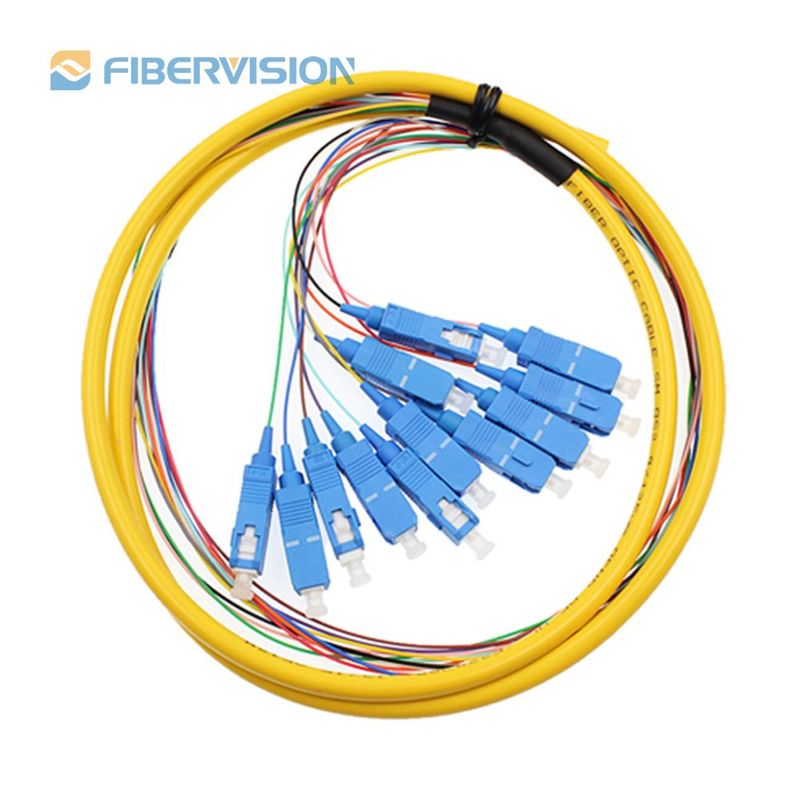

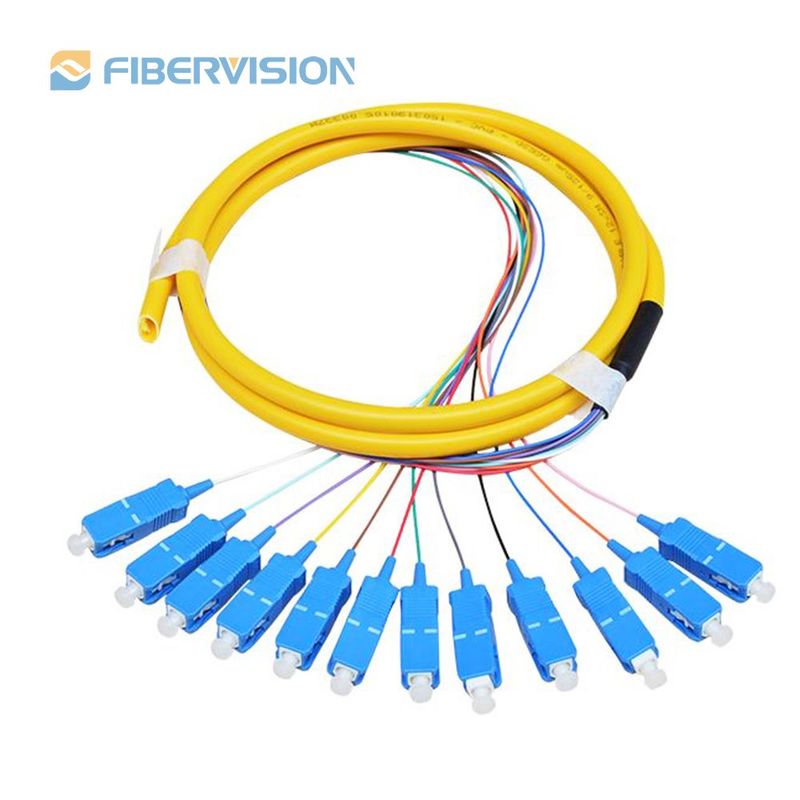

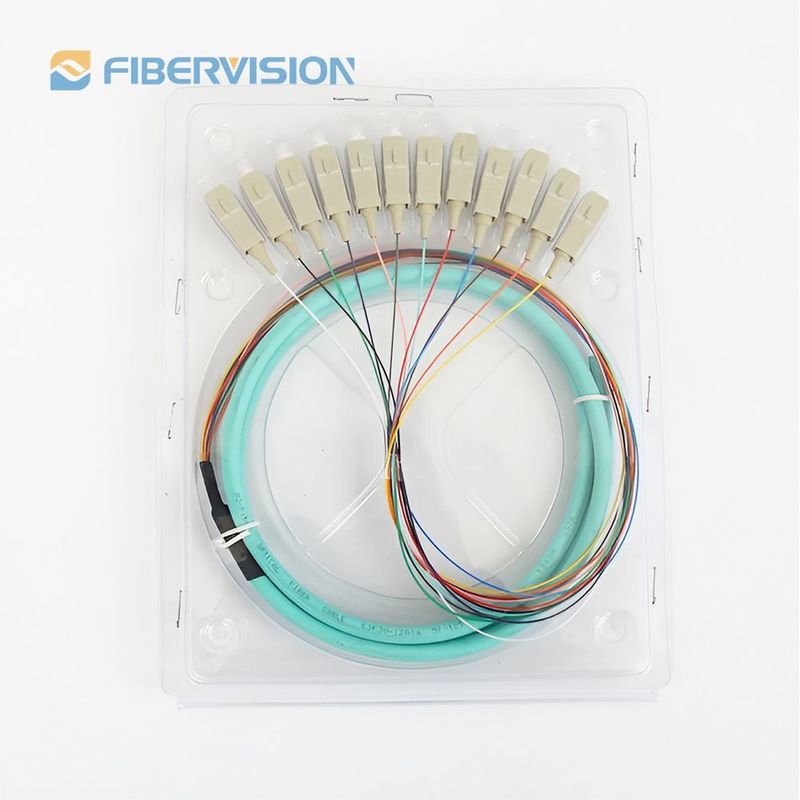

Product Name : Multi-Cores Fan-out Pigtails SC/UPC

Key Words : High quality Multi-cores Fan-out pigtails SC-UPC 12 Colors Break-out Pigtail Single Mode Fiber Laser Pigtail Fiber Optic Pigtail

Applications : · Data Centers
· Telecommunications Networks
· Industrial Networks
· Medical Equipment
· Military and Aerospace Applications.

Description
Features
Parameters
Ordering Info
DataSheet

Bunchy Pigtails are high-quality optical fiber cables that are used to terminate, splice, and connect optical fibers in telecommunications, data centers, local area networks (LANs), and other optical network applications. These cables consist of multiple optical fibers bundled together with a jacket, with each fiber terminating in a connector on one end.

· High-quality optical fibers and connectors for reliable signal transmission

· Fanout design provides flexibility and easy connectivity.

· Low insertion loss and high return loss for optimal performance

· Available in a variety of fiber types, connector types, and cable lengths to fit any application.

· Custom jacket materials and cable diameters available upon request.

· Compliant with industry standards for quality and safety.

Parameters	Standard & Parameters
Fiber Type	Singel-Mode (G.652D/G.657A1/G657A2)	Multi-Mode (OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH /OFNR /PVC
Connector Type	FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30nm, 1550±30nm	850±30nm, 1300±30nm
Insertion Loss (dB) (TIA/EIA-455-107)	≤0.25dB	≤0.3dB
	(PC/UPC/APC)	(PC/UPC)
Return Loss (dB) (TIA/EIA-455-107)	≥50dB (PC/UPC)	≥40dB (PC/UPC)
	≥60dB (APC)
Exchangeability	≤0.2dB
Cable Assemblies	Fanout Pigtails
Operating Temperature	-20 ~ +70 (℃)
Storage Temperature	-40 ~ +85 (℃)
All values specified are tested with connectors

产品类别	光纤芯数		线缆外径	护套材质		光纤类别	A接头+抛光	A分支长度		总长度
CAT. Code	No. Cores	-	Cable OD	Sheath	-	Fiber Type	Connector A	A Fanout L.	-	Length
F101-PGT3 = Optic Fanout Pigtails	SX=Simplex	-	09=0.9mm	V=PVC	-	SMD=SM G.652D	SCU=SC/UPC	030=0.3M	-	0.5M
	DX=Duplex		20=2.0mm	H=LSZH		SM1=SM G.657.A1	SCA=SC/APC	050=0.5M		1.0M
	X= X Cores		30=3.0mm	E=FEPE		SM2=SM G.657.A2	LCU=LC/UPC	100=1.0M		1.5M
			16=1.6mm	O=OFNP		SM3=SM G.657.B3	LCA=LC/APC			2.0M
			24=2.4mm	R=OFNR			FCU=FC/UPC			3.0M
			48=4.8mm				FCA=FC/APC			…
						OM1=MM 62.5/125	STU=ST/UPC
						OM2=MM 50/125	STA=ST/APC
						OM3=MM 50/125*	E2U=E2000/UPC
						OM4=MM 50/125	E2A=E2000/APC
						OM5=MM 50/125

	or		or	or		or	or	or		or
	Specified		Specified	Specified		Specified	Specified	Specified		Specified
