Category :
								Outdoor Optic Cable

Sub-Category :
									Fiber Ribbon Type

Item Code :

Product Name : Fiber Ribbon Cable GDXTW

Key Points : Fiber Ribbon,PBT tube,gel filling,corrugated steel plastic tape,Two parrelled steel wire as strength member,PE Jacket

Applications : Metropolitan area network especially the main Cabling in the loop;
Duct and aerial Self-Supporting.

General Description

GYDXTW (Opticalfiber ribbon, Central tube structure, Flooding jelly compound,Steel-polyethylene adhesive sheath)

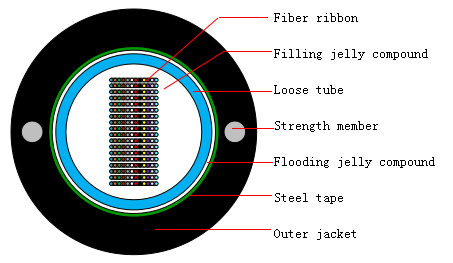

Product Structure:

Product Features

The concentration of the fibers is high;

Excellent performance of water-blocking;

Excellent performance of resistance to temperature.

Four steel wires provide better mechanical properties.

The size of the cable is small, the laying is more convenient, and the cost is saved.

Technical Details

Technical Parameters(Typical Value):

Fiber Count	Structure	Diameter (mm)	Weight (kg/km)	Tensile(N) Long/Short term		Crush(N) Long/Short term		Bending Radius(mm) Static/Dynamic
48	Central tube	13.5	171	600	1500	300	1000	10D	20D
72	Central tube	14.3	190	600	1500	300	1000	10D	20D
144	Central tube	16. 5	250	600	1500	300	1000	10D	20D
216	Central tube	18. 5	310	600	1500	300	1000	10D	20D
288	Central tube	19. 2	335	600	1500	300	1000	10D	20D

Ordering Information

Datasheet Download
