Category :
								Outdoor Optic Cable

Sub-Category :
									Fiber Ribbon Type

Item Code :

Product Name : Fiber Ribbon Cable GYTDS

Key Points : Central Strength Member,Fiber Ribbon,Stranded PBT tube,gel filling,corrugated steel plastic tape,PE Jacket

Applications : Metropolitan area network especially the main Cabling in the loop;
Duct and aerial non Self-Supporting.

General Description

GYDTS (Opticalfiber ribbon, Loose tube stranding, Metal strength member, Flooding jellycompound, Steel-polyethylene adhesive sheath)

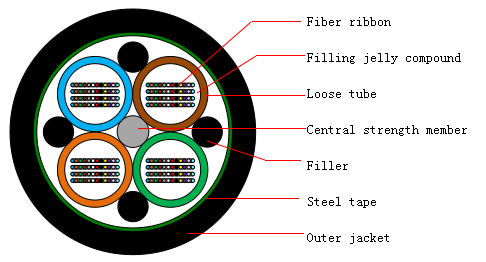

Product Structure:

Product Features

The concentration of the fibers is high;

Excellent performance of water-blocking;

Excellent performance of resistance to temperature.

Four steel wires provide better mechanical properties.

The size of the cable is small, the laying is more convenient, and the cost is saved.

Technical Details

Technical Parameters(Typical Value):

Fiber Count	Structure	Diameter (mm)	Weight (kg/km)	Tensile(N) Long/Short term		Crush(N) Long/Short term		Bending Radius(mm) Static/Dynamic
48-144	1+4	17. 2	276	600	1500	300	1000	10D	20D
156-192	1+4	17. 2	283	600	1500	300	1000	10D	20D
194-216	1+4	18. 7	334	600	1500	300	1000	10D	20D
218-288	1+4	18. 7	337	600	1500	300	1000	10D	20D
290-432	1+4	20. 6	400	600	1500	300	1000	10D	20D
434-576	1+4	22.8	478	600	1500	300	1000	10D	20D
