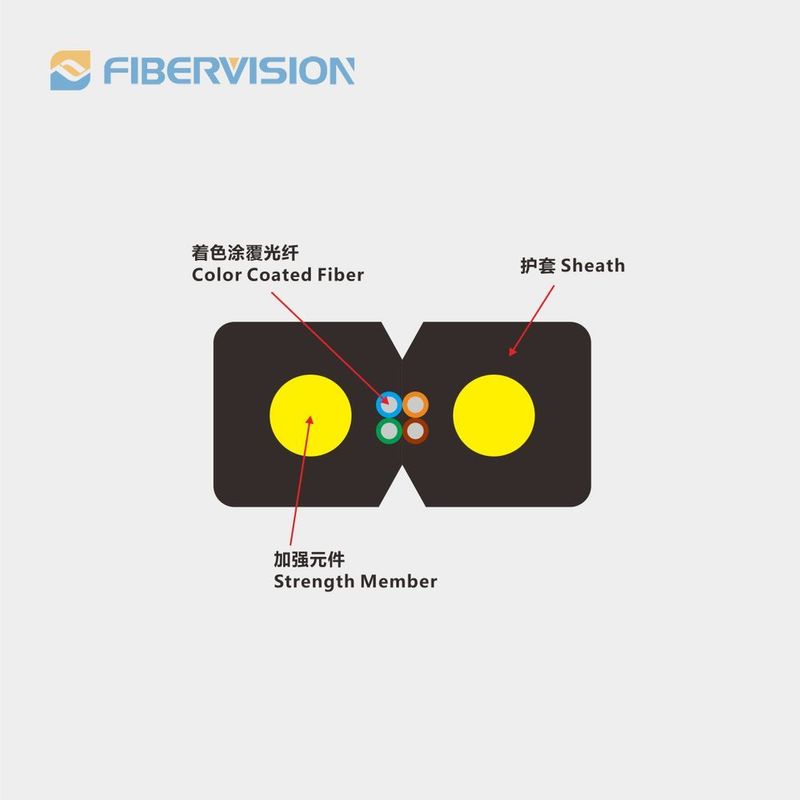

The bow type FTTH drop cable is the last mile fiber optic cable in the FTTH network. It connects the distributed fiber optic cable from communication system and the multimedia box in end users households or offices. It has environment friendly lszh outer sheath, small bending radius and excellent flexibility, which can meet various indoor wiring environments of FTTH network.

For various enviroment, FTTH cable has different structure and materials, such as bow type or butterfly type and self-supporting structure, metal steel wire strength member and FRP dielectric strength member.

Low bend-sensitivity fiber provides high bandwidth and excellent transmission property;
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Two parallel strength members ensure the protection to the bare fibers in the cable,
Low smoke, zero halogen and flame retardant sheath.

Fiber Cores can be 1 up to12 cores;
Bare Fiber can be G652D,G657A1 or G657A2;
Strength Member can be Steel Wire, GFRP or KFRP;
Self supporting Unit can be Solid Steel Wire or Stranded wire;
Reel Length can be 500m,1000m, 2000m,
Packing can be wooden reels on pallet, or wooden reels in cartons.
