MPO/MTP Fiber Patch Cable
FIBERVISION offers customer 8-144Fibers MPO/MTP fiber optic patch cords/patch leads for High-Speed Data Transmission, suitable For High-Bandwidth Applications.
2023-12-15
1).Gigabit Ethernet
2).Active Deviced/Transceiver Interface
3).CATV, Video and Multimedia
4).Premise Installations
5).Telecommunication Networks

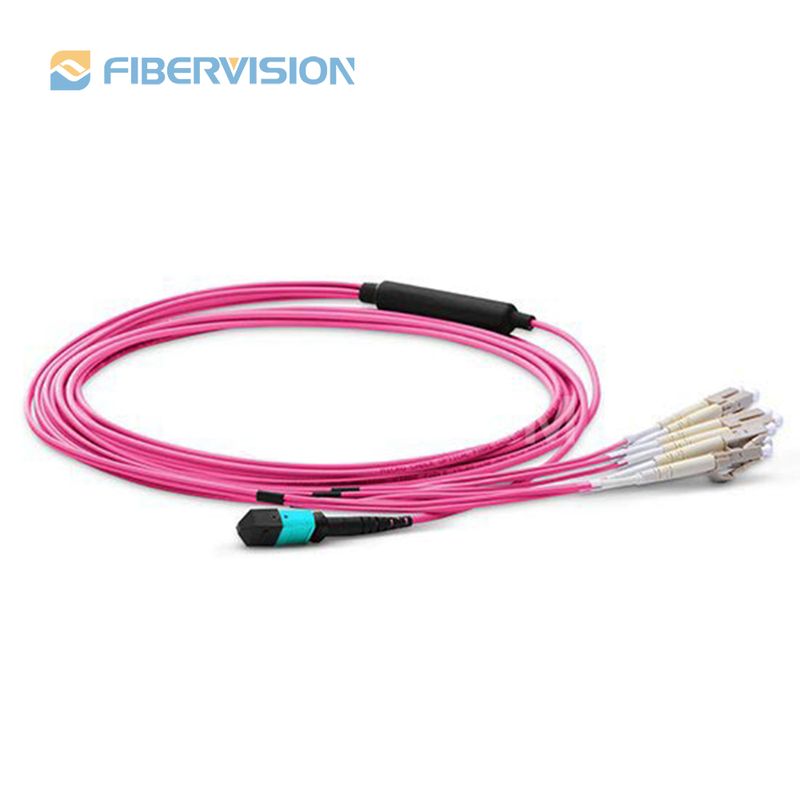

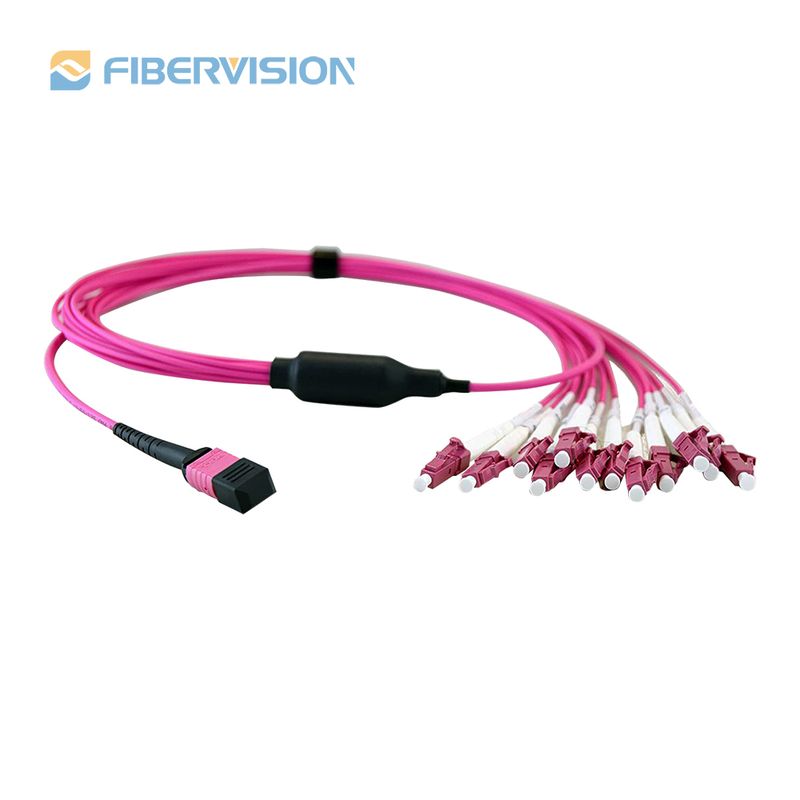

MPO Fanout cable is Designed for high-density connections between 40GBASE-SR4 network equipment. It cross-connects from structured cabling directly into active transceivers with an MPO interface. Fanout cables are available in 8, 12 and 24 fibres in Multimode OM1 62.5/125, OM2 50/125, OM3 50/125, OM4 50/125 and Singlemode OS1 9/125 options. It is manufactured under strict test procedures to ensure optimum performance.
MTP/MPO multi-fiber trunk cables are usually in mini-round cables and ribbon cables, with fanout kits broken down into 2~24 fiber 0.9mm or 2.0mm tails with connector LC, SC, ST, FC, etc. cable total length, fanout length, connector type are customized.
Product Construction:
A: MPO connectot
L: Total length
L1: Fanout length
B: Connector ( FC, LC, ST, SC, ...)
With 12-fiber and 24-fiber MPO/MTP connector standard
1).Available in SM, OM1,OM2, OM3 and OM4
2).Available in FC,LC, SC, ST, MU, and MTP
3).Interface polished type has PC, UPC and APC
4).Support use in attaching directly to 40/100G transceivers
5)· Polarity options are Type A, B, or C (Method A& B are standard)
6).They are designed for high density applications requiring high performance and speedy installation.
7). Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors.
Connector A | MPO/MTP Female (pinless) | Connector B | FC,LC,SC, ST, MU option |
Fiber Mode | G652D, G.657A1, OM3, OM4 ,OM5 option | Wavelength | 850/1310 nm |
MPO connector IL | ≤ 0.35 dB | LC Connector IL | ≤ 0.30 dB |
MPO connector RL | ≥ 20 dB | LC Connector RL | ≥ 35 dB |
Cable Jacket | LSZH or PVC | Fiber Count | 8,12,24 fiber |
Cable Type | Round cable&Ribbon cable | Jacket OD | 3.0 mm&2.0mm*5.0mm |
Operating Temperature | -10°C to 70°C | Storage Temperature | -40°C to 85°C |
