PRODUCTS

HIGH QUALITY PRODUCTS & WIDE RANGE!

2023-12-05

Category :
Indoor Optic Cable
Sub-Category :
Multi-Cores Indoor Cable
Item Code :

Product Name :
Multi-Cores Branch Cable 12F

Key Points :
Multi-Cores Branch Cable, Central Strength Memeber, 12F Subunit, Water-Blocking Tape, LSZH Jacket

Applications :

1. Used in indoor cabling, especially used as breakout cable
2. Used as interconnect lines of equipments and optical connections in optical communication equipment rooms and distribution frames
3. Used as pigtails and patch cords
4. Used as access building cable


General Description

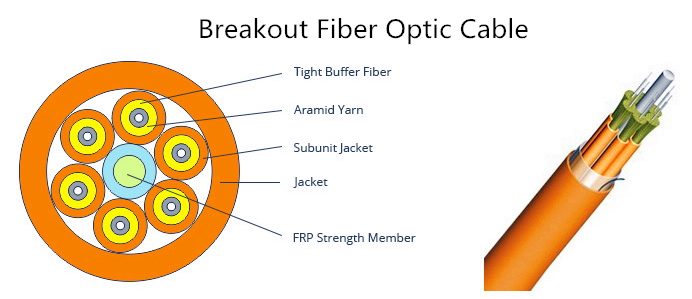

The indoor multi-core branch cable, the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units,multi fibers as the subunit twist with FRP(and some cushions) into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.Indoor Breakout cable.png

Product Features

1. Good mechanical and environmental characteristics

2. Flame retardant characteristics meets the requirements of relevant standards

3. The mechanical characteristics meet the requirements of relevant standards

4. Soft, flexible, easy to splice, and with big capacity data transmission

5. Meet various requirements of market and clients


Technical Details

Optical Characteristics


G.652

G.655

50/125μm

62.5/125μm

Attenuation
     (+20℃)

@850nm



≤3.5dB/km

≤3.5dB/km


@1300nm



≤1.5dB/km

≤1.5dB/km


@1310nm

≤0.45dB/km

≤0.45dB/km




@1550nm

≤0.30dB/km

≤0.30dB/km



Bandwidth (Class A)

@850



≥500MHZ·km

≥200MHZ·km


@1300



≥1000MHZ·km

≥600MHZ·km

Numerical Aperture




0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength


≤1260nm

≤1480nm





Technical Parameters

Fiber Count

Subunit Diameter
  mm

Cable Diameter
  mm

Cable Weight
 Kg/km

Tensile Strength
Long/Short Term
     N

Crush Resistance

Long/Short Term
     N/100m

 Bending Radius
 Static/Dynamic
     mm

2

2.0

7.0±0.5

45

500/1000

400/800

30D/15D

4

2.0

7.0±0.5

45

500/1000

400/800

30D/15D

6

2.0

8.3±0.5

62

500/1000

400/800

30D/15D

8

2.0

9.4±0.5

85

500/1000

400/800

30D/15D

10

2.0

10.7±0.5

109

500/1000

400/800

30D/15D

12

2.0

12.2±0.5

140

500/1000

400/800

30D/15D

Ordering Information

Datasheet Download
