Category :
								Indoor Optic Cable

Sub-Category :
									Multi-Cores Indoor Cable

Item Code :

Product Name : Multi-Cores Mini Cable 12F

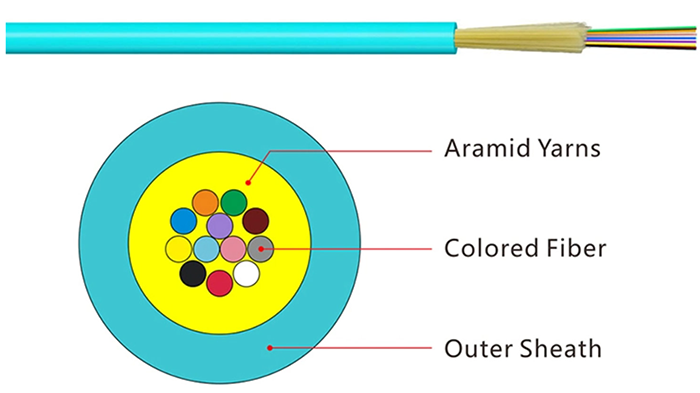

Key Points : 250um colored fiber,Strands of Aramid yarns as the strength member, LSZH Jacket

Applications : Distribution cable
Indoor cabling, for FTTx
Data center
Multi cores pigtails and patchcords, upto 48 cores per cable

General Description

Indoor distribution tight buffer cable are used for LAN connections, patch cords, MTP/MPO, pigtails and internal point-to-point links(data cabinets, equipment rooms, wall outlets and computers). with 250um fibre, the cable is suitable for industry standard connectors and can be easily made into assemblies for MTP/MPO patch cords. they can also be supplied in PVC (OFNR & OFNP) or LSZH jackets


Product Features

Good mechanical and environmental characteristics
Flame retardant characteristics
Excellent mechanical characteristics
Soft, flexible, easy to installation
Meets international standards

Technical Details

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥200MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short N	Crush Resistance Long/Short N/100m	Bending Radius Static/Dynamic mm
GJFV	2-12	3.0	7.5	150/300	80/150	30D/15D
GJFV	14-24	3.5	8	150/300	80/150	30D/15D

Storage/Operating temperature:-20℃～﹢60℃
