Product Name : Outdoor Power Grid Optic Cable OPPC With Second Layer

Key Points :

Applications : It is mainly applied in voltage classes under 110kV, urban power distribution grid and rural power grid.

General Description

Optical Phase Conductor(OPPC)

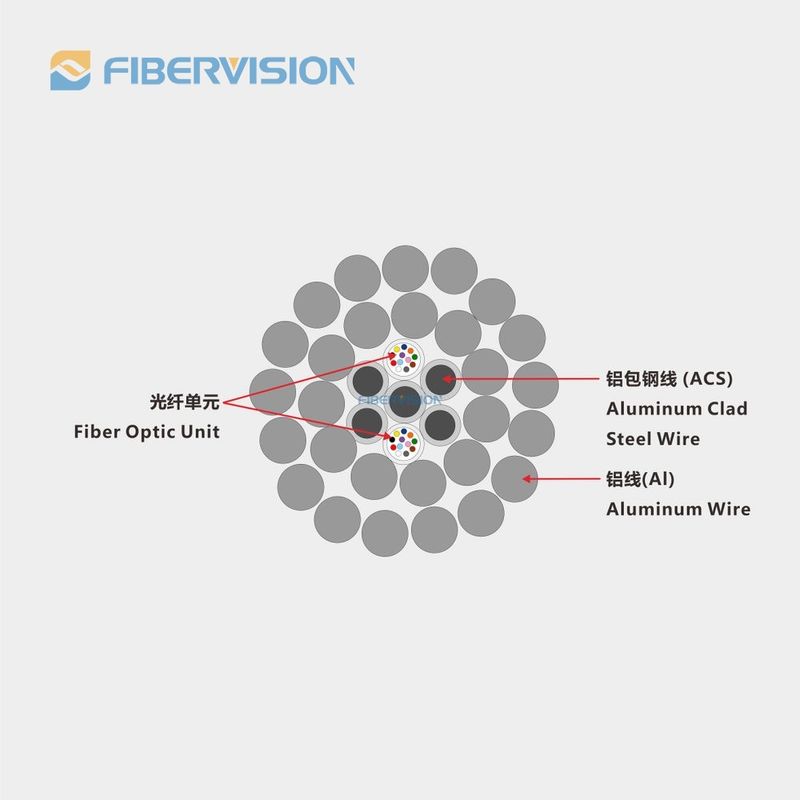

OPPC is a new kind of special electric cable which compounds fiber unit into phase with function of both phase and

communication.

Product Features

● Can meet high electrical performance requirements, and have excellent corrosion resistant performance.
● Applicable to coastal areas and areas with heavy pollution.
● Short-circuit current has little effect on the fiber.

Technical Details

Technical Parameter

Model	Conductor model	Structure(No.of wires/wire dia-spec.)					Cross section			Outer diameter	Unit weight	Rated tensile strength	20℃ DC resistance	Carrying capacity
		Centre layer	First layer		Second layer	Third layer	AS	AW	Total					40℃-70℃	40℃-80℃	40℃-90℃
		AS	Optical unit	AS	AW	AW
		n/mm- AS	n/mm- core	n/mm-AS	n/mm	n/mm	mm2	mm2	mm2	mm	Kg/km	kN	Ω/km	A	A	A
OPPC-16B1-85/25	LGJ-95/20	1/2.4-20AS	1/2.3-16B1	5/2.3-20AS	9/3.5	-	25.30	86.59	111.9	14.0	430	40.9	0.303	233	277	319
OPPC-36B1-90/50	LGJ-95/55	1/3.4-14AS	1/3.2-24B1	5/3.3-14AS	13/3.0	-	51.84	91.89	143.7	16.0	650	85.5	0.277	230	270	301
OPPC-16B1-120/20	LGJ-120/20	1/2.4-20AS	1/2.3-24B1	5/2.3-20AS	8/4.2	-	25.30	110.84	136.1	15.4	490	45.5	0.242	265	315	365
OPPC-24B1-120/25	LGJ-120/25	1/2.5-20AS	1/2.4-24B1	5/2.4-20AS	8/4.35	-	27.53	118.89	146.4	16.0	530	49.3	0.225	285	348	399
OPPC-16B1-150/25	LGJ-150/25	1/2.4-20AS	1/2.3-16B1	5/2.3-20AS	11/2.6	17/2.6	25.30	148.66	174	17.4	595	54.5	0.184	331	407	469
OPPC-24B1-150/30	LGJ-150/35	1/2.6-14AS	1/2.5-24B1	5/2.5-14AS	12/2.5	18/2.5	29.85	147.26	177.1	17.6	640	65.7	0.188	330	405	466
OPPC-16B1-185/25	LGJ-185/25	1/2.4-20AS	1/2.3-16B1	5/2.3-20AS	10/3.0	16/3.0	25.30	183.78	209.1	19.0	695	65.8	0.150	379	468	540
OPPC-24B1-185/40	LGJ-185/45	1/2.85-20AS	1/2.7-24B1	5/2.8-20AS	12/2.8	18/2.8	37.17	184.73	221.9	19.65	795	79.7	0.147	379	469	541
OPPC-24B1-240/25	LGJ-240/30	1/2.5-20AS	1/2.4-24B1	5/2.4-20AS	9/3.6	15/3.6	27.53	244.29	271.8	21.7	885	76.6	0.114	445	552	639
