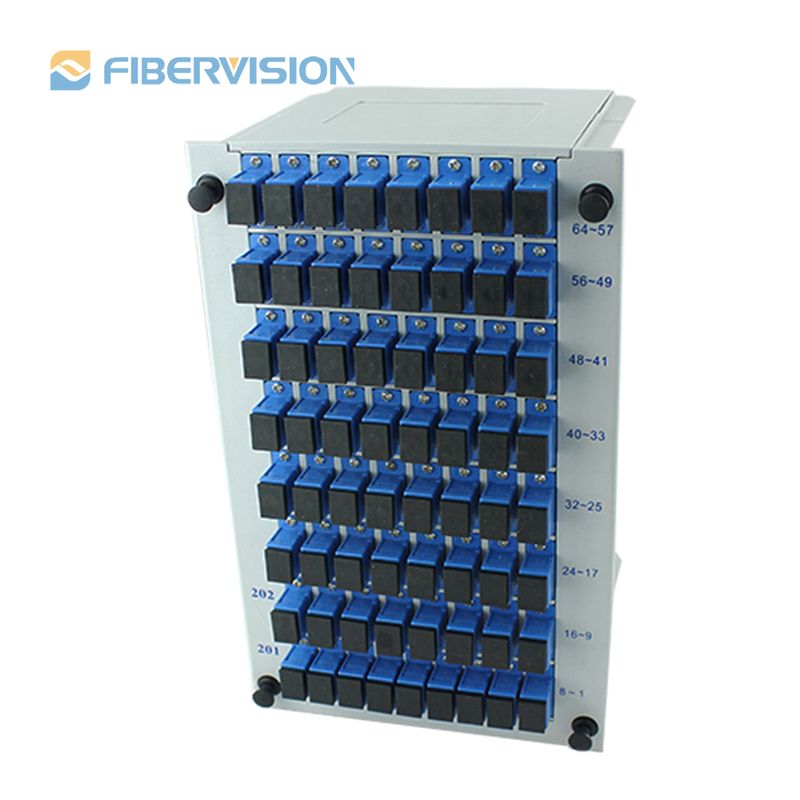

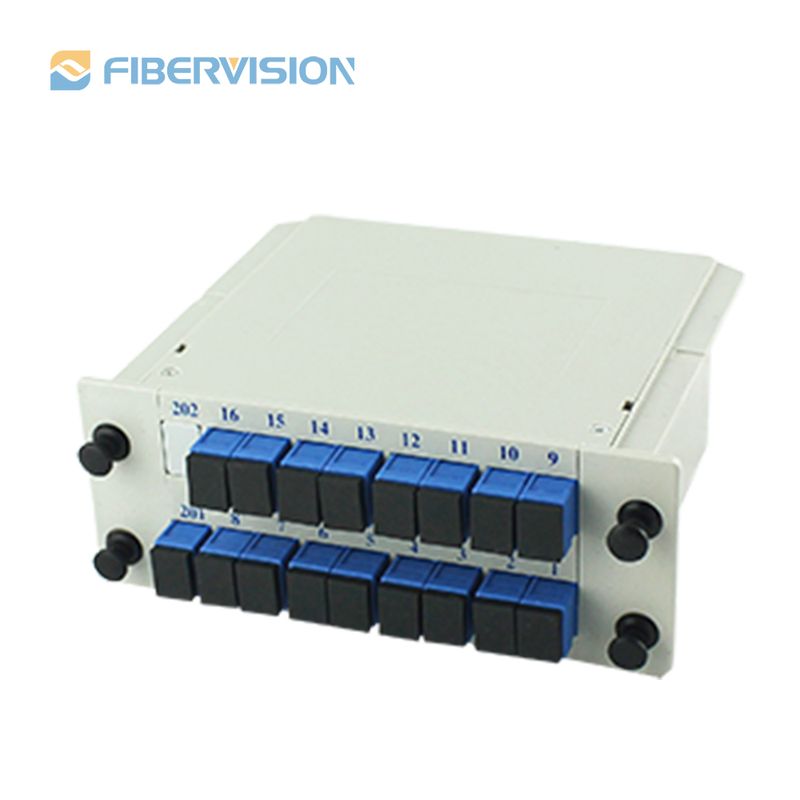

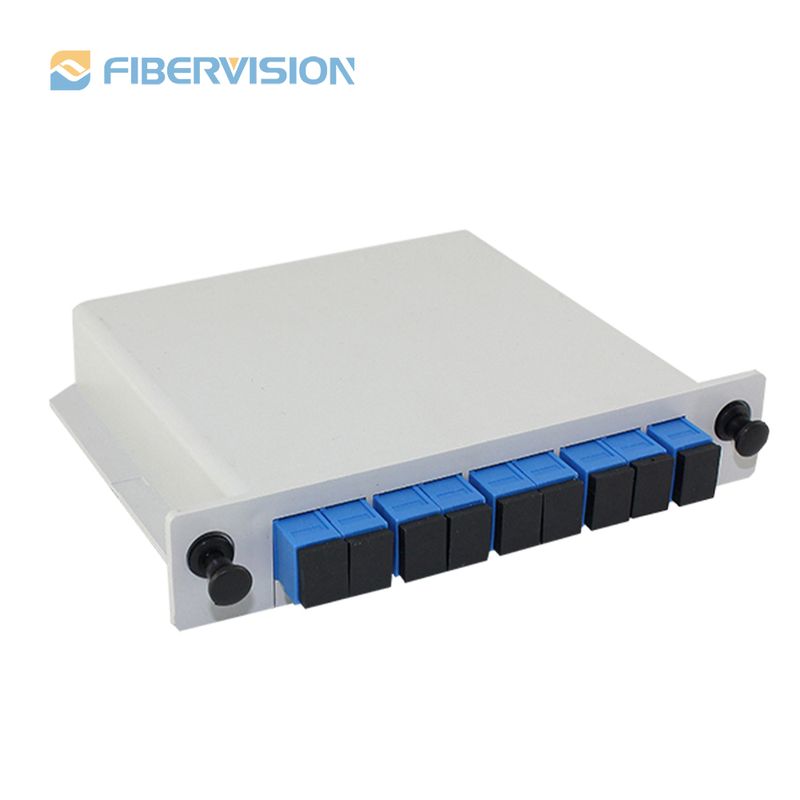

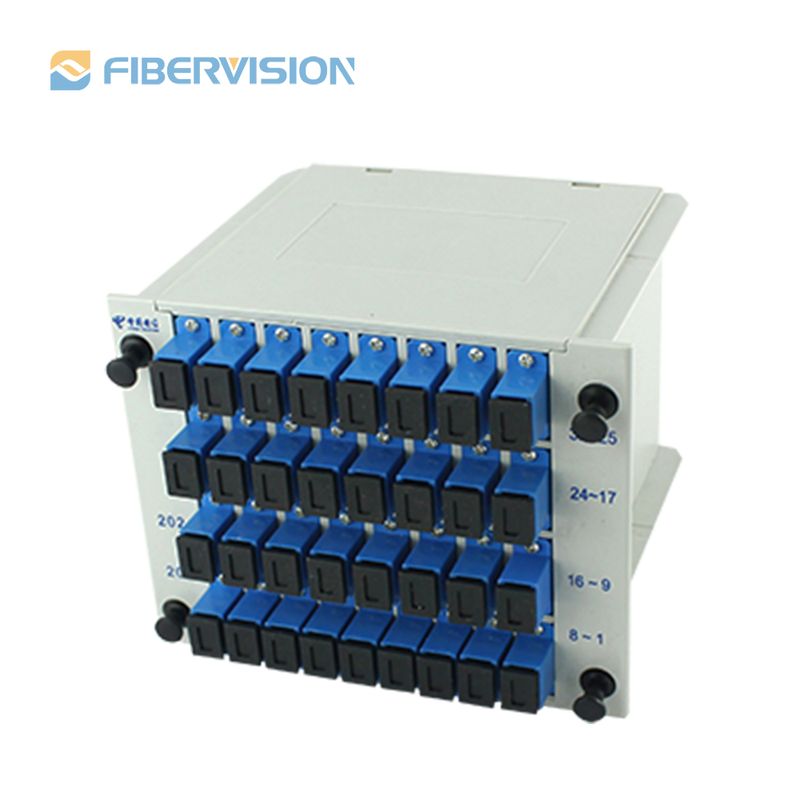

A slot box PLC (Planar Lightwave Circuit) splitter is an optical splitter that allows multiple input fibers to split into multiple output fibers. The splitter is designed to fit into a slot box or cassette, which can be conveniently mounted in a data center or telecommunication facility. Slot box PLC splitters use a planar waveguide circuit to distribute the optical signal evenly across the output ports, thus minimizing signal loss and ensuring uniform power splitting. They are available in various splitter configurations, such as 1x2, 1x4, 1x8, 1x16, 1x32, and 1x64, to meet different networking requirements. The connectors of the slot box PLC splitter are typically placed on the front of the cassette, making it easy to attach and detach input and output fibers. Slot box PLC splitters provide a high-density and easy-to-install solution for fiber optic applications. They can be used in various optical fiber networking applications such as FTTx (fiber-to-the-x), Data Center and Enterprise networks, and Telecommunications.

Uniform power splitting

Compact package dimension

Low polarization dependent loss

Good channel-to-channel uniformity

Low Insertion Loss and high Return Loss

Environmentally and mechanically stable

Wide operating wavelength range from 1260nm to 1650nm

Specifications:

Note: All measurements are done at room temperature without connectors.
