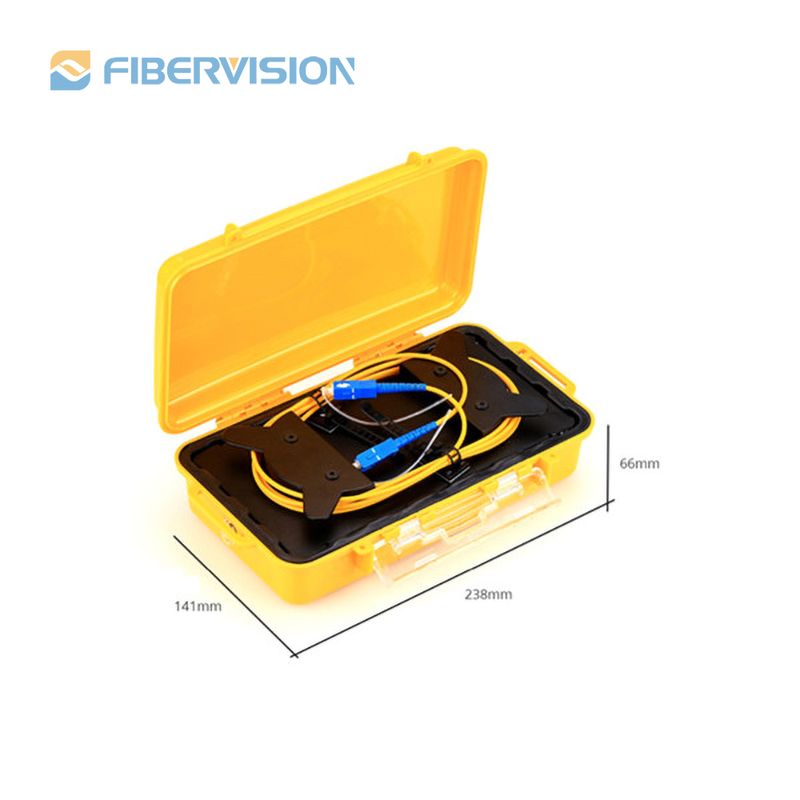

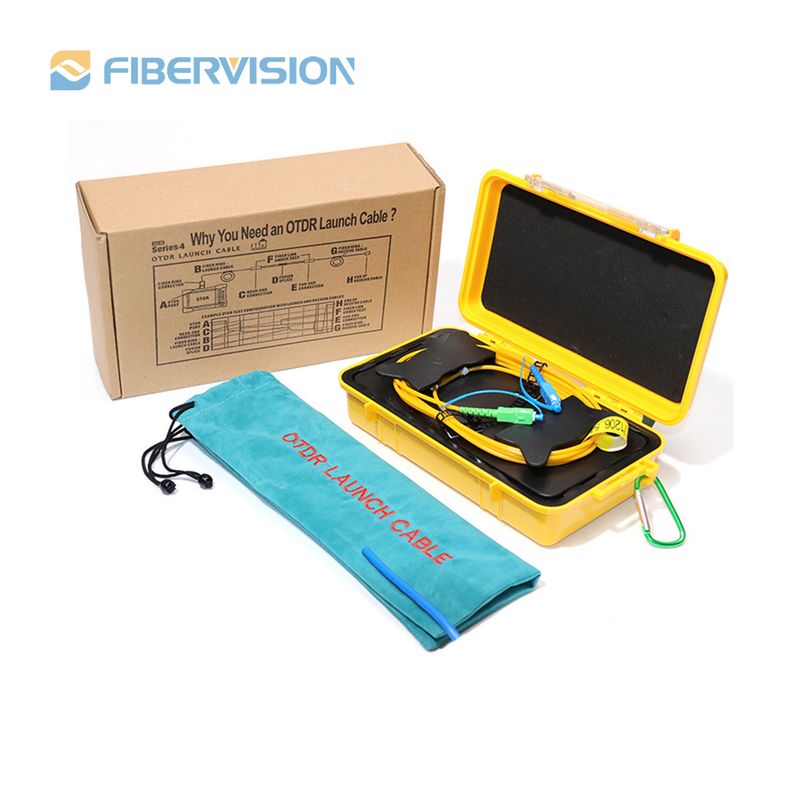

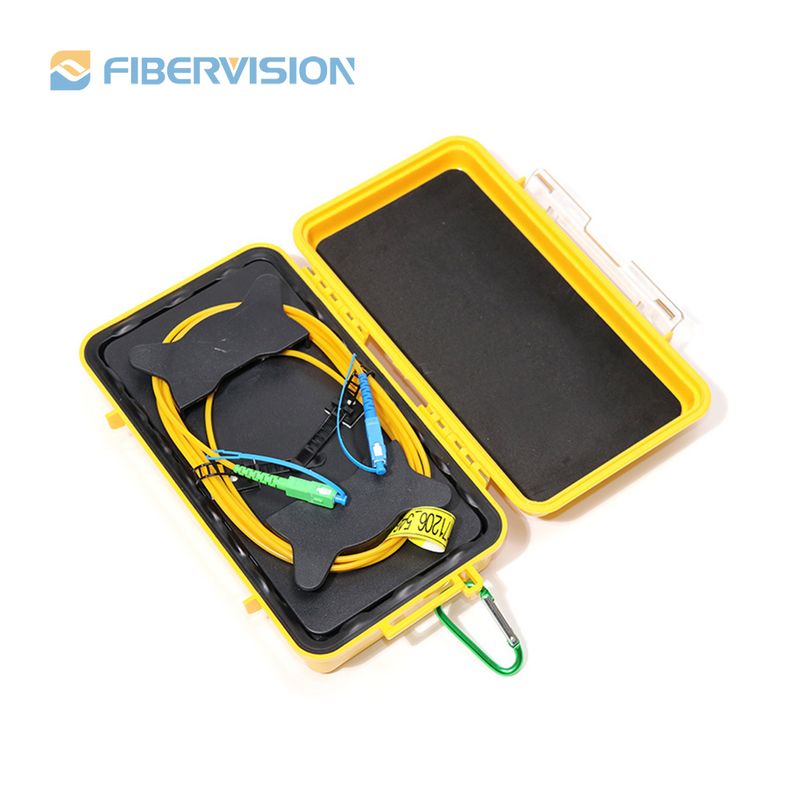

The FV-73901OTDR Testing Launch Cable is used with Optical Time Domain Reflectometer (OTDR)  when carrying a measurement on a fiber network. This launch cable helps in minimizing the effects  of the OTDR’s launch pulse on measurement uncertainty.  The FV-73901 OTDR Testing Launch Cable is available in various configurations of connectors and  fiber lengths and is useful for testing fiber optic cable when using an OTDR, also for measuring the  insertion loss and reflectance of near- and far-end connections of a fiber optic link.

➢ Pulse Suppressor, Launch Box, Delay Line

➢ Compound Latch for positive seal and easy opening with locking feature

➢ Auto Purge Valve for changes in altitude and temperature

➢ Case can house up to 5,000m of bare fiber

➢ Non-metal construction will not dent, corrode, or conduce electricity

➢ Water and dust-proof allowing the unit to be taken into almost any environment

Specification:
