Fiber Connectors
Optic Fiber Connectors
2023-12-29
CATV
LAN & WAN
Telecommunication networks
PON (Passive Optical Network)
FTTX, FTTH (Fiber to the Home)

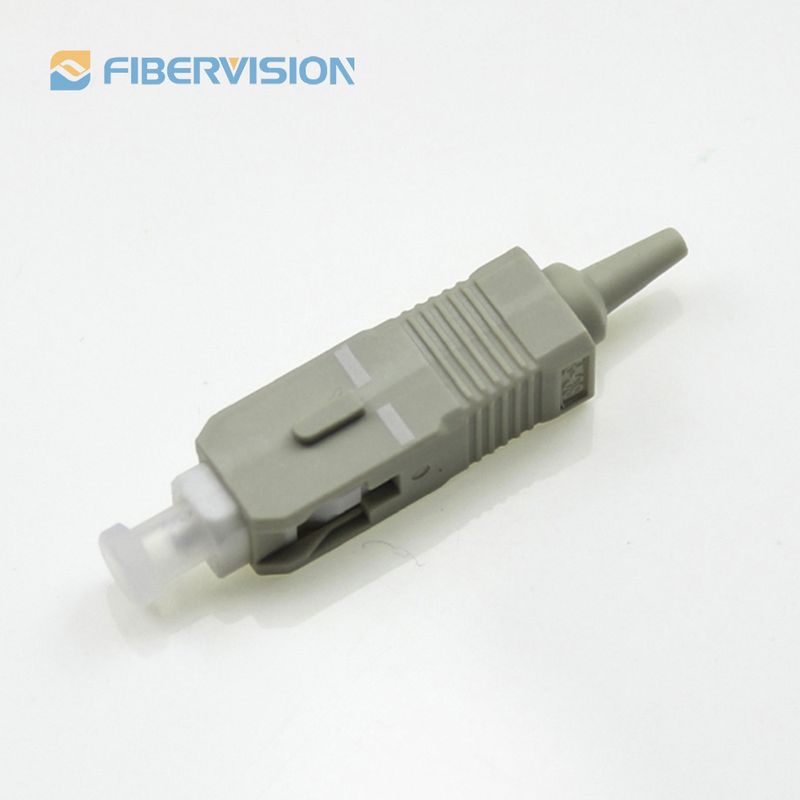

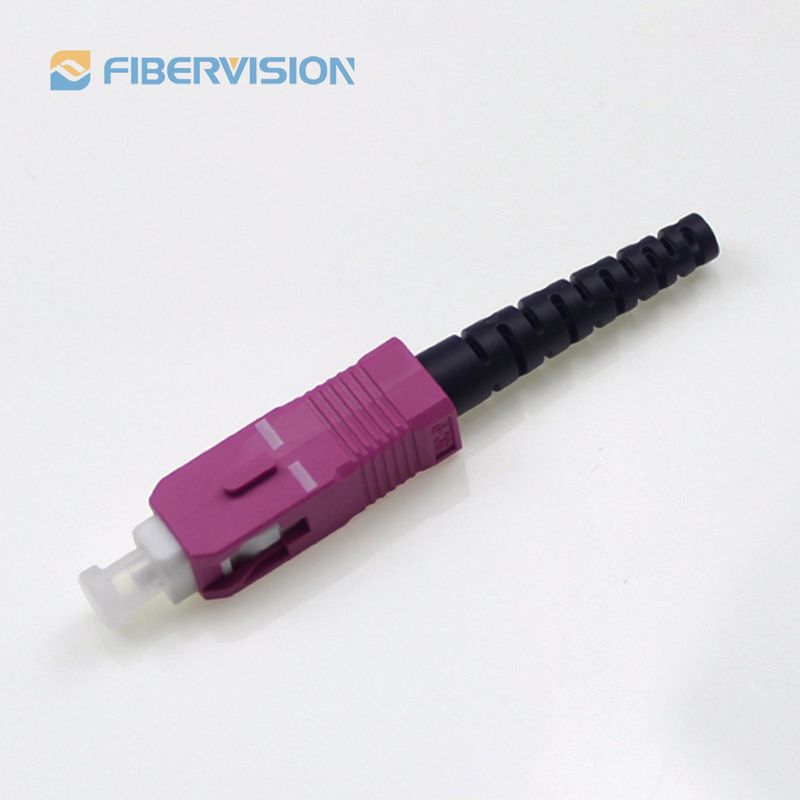

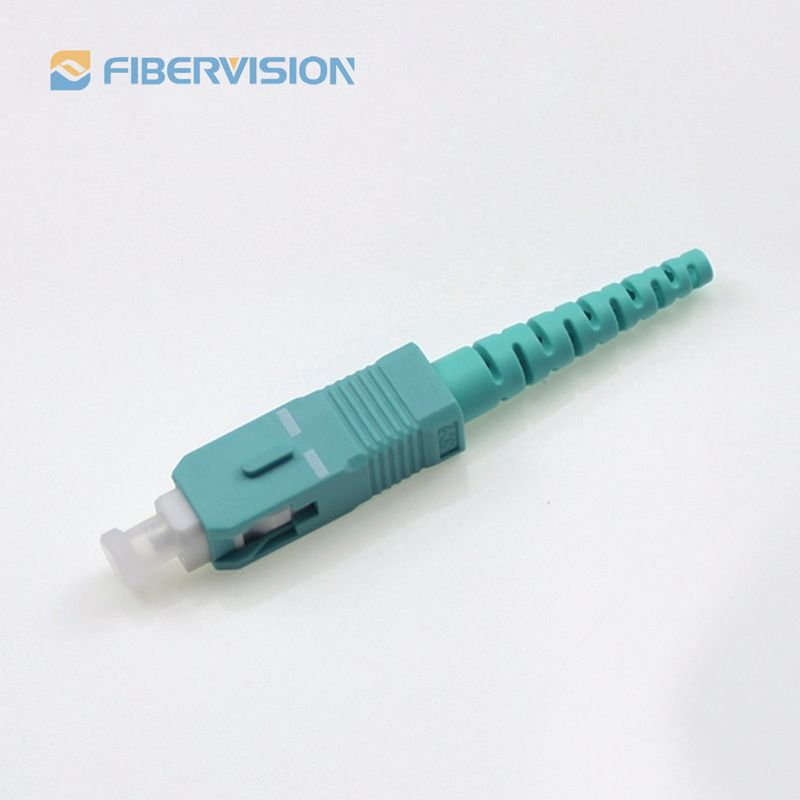

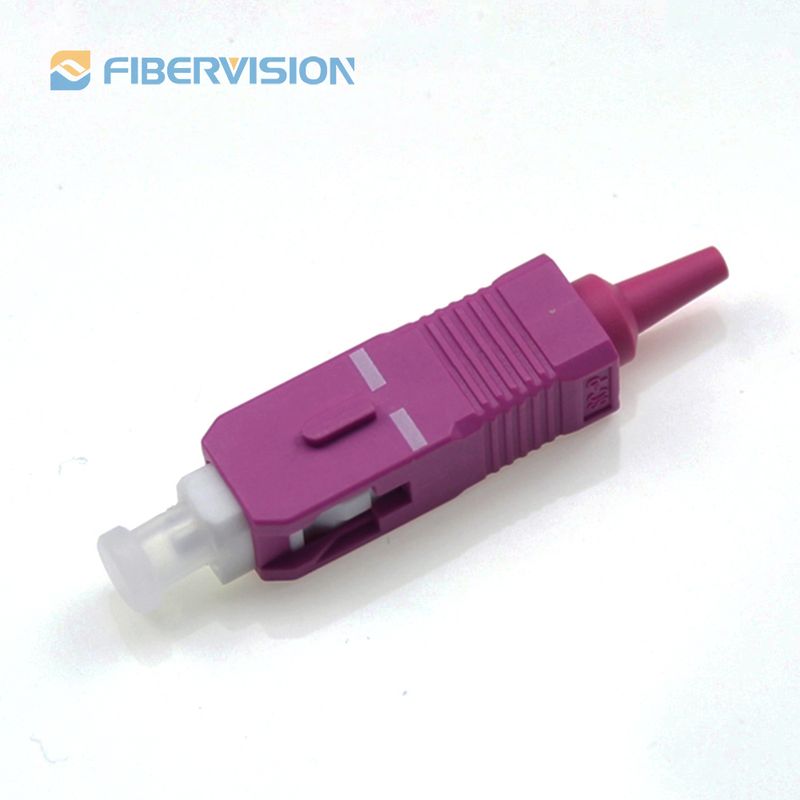

SC is the abbreviation of Subscriber Connector, which has also been referred to as Square Connector or Standard Connector. It’s a popular fiber optic connector due to its low cost, durability and simple installation for both point-to-point and passive optical networking.
Low insertion loss
High return loss
Good repeatability
Good interchangeability
High temperature stability
Specifications:
Mode | SM | MM | |
Polishing | UPC | APC | UPC |
Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
Return Loss | ≥55dB | ≥65dB | ≥35dB |
Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | |
Ferrule Concentricity | ≤1um | ≤4um | |
Interchangeability | ≤0.2dB | ||
Salt Spray | ≤0.2dB | ||
Repeatability | ≤0.1dB (1,000 times) | ||
High Temperature | ≤0.2dB (+85°C 168 hours) | ||
Low Temperature | ≤0.2dB (-40°C 168 hours) | ||
Temperature Cycle | ≤0.2dB (-40°C~85°C 21 cycles 168 hours) | ||
Humidity | ≤0.2dB (95% 75°C 168 hours) | ||
Durability | ≥1,000 Times | ||
Vibration | ≤0.1dB (10-55Hz 1.5mm) | ||
Falling | ≤0.2dB (1.5m high, 8 times) | ||
Operating Temp. | -40°C~+85°C | ||
Name | Connector | |
Type | SC | |
Polishing Endface | UPC; APC | |
Fiber Count | Simplex (SX); Duplex (DX) | |
Mode | SM; MM (OM1; OM2; OM3; OM4) | |
Color | Outer Housing | Blue; Orange; Green; Brown; Gray; White; Red; Black; Yellow; Fuchsia; Pink; Aqua Green |
Boot | ||
Clip | ||
Cable Diameter | 0.9mm;1.2mm; 2.0mm; 3.0mm | |
Insertion Loss | 0.3dB; 0.1dB | |
Assembling Situation | Before Assembling; Half after Assembling | |
Boot Length:
0.9mm Boot Length | 15mm; 20mm; 21.7mm; 22mm; 24mm; 29mm |
1.2mm Boot Length | 24mm |
2.0mm Boot Length | 25mm; 32mm; 40mm; 44mm |
3.0mm Boot Length | 25mm; 32mm; 33mm; 40mm; 44mm |
For Example:
Connector SC/UPC, SX, SM, blue color, 2.0mm cable, 0.3dB insertion loss, half after assembling, 40mm boot.
