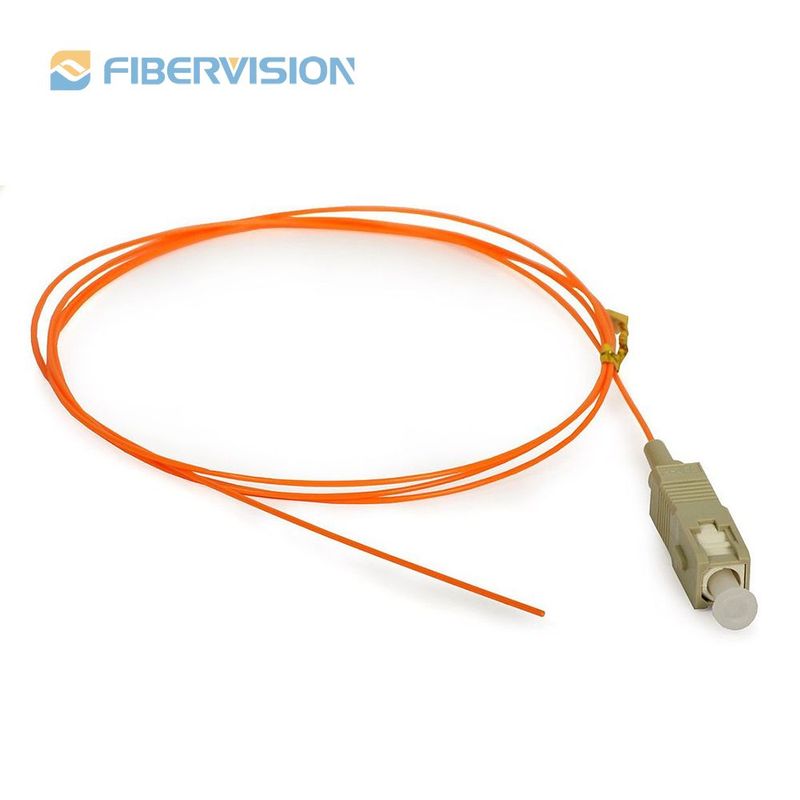

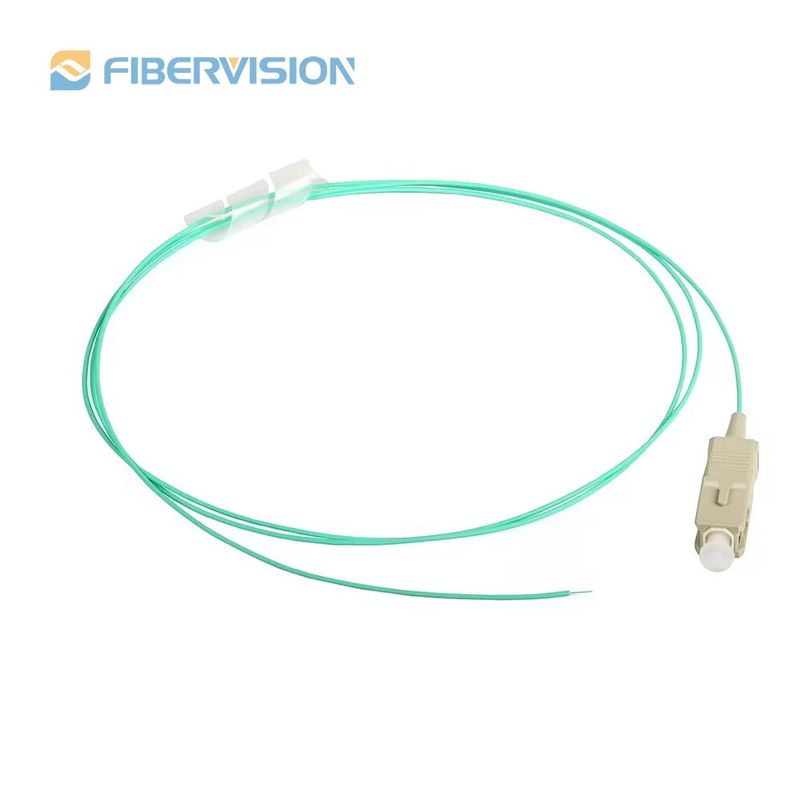

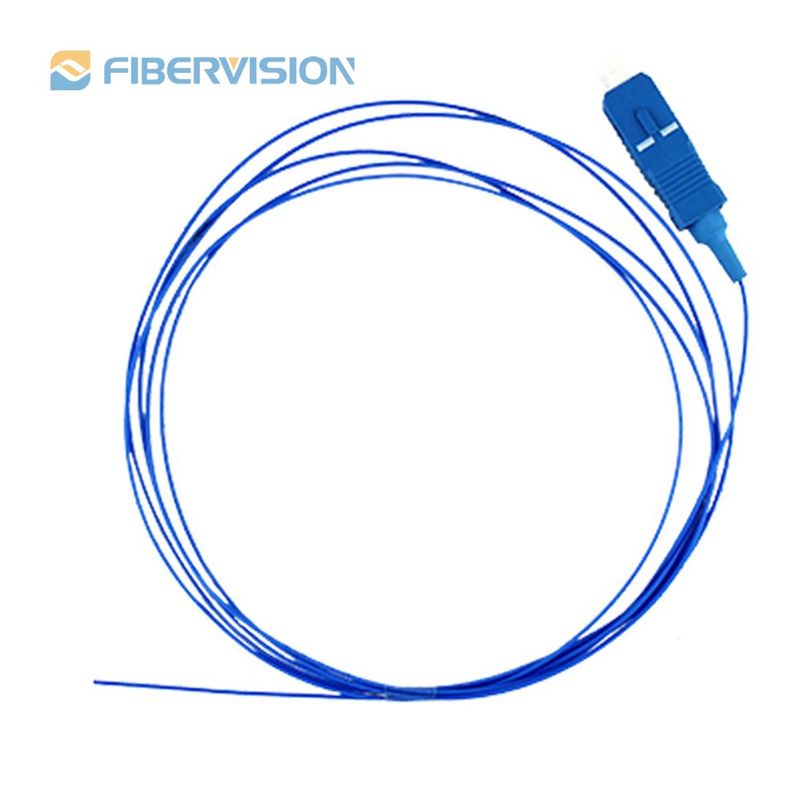

Product Name : Fiber Pigtail SC/UPC

Key Points : Optic Pigtail, Simplex,Multi-mode, OM2, SC/UPC connector

Applications : Optical devices such as patch panels, fiber optic transceivers, and terminal boxes.
Telecommunication networks, CATV networks, LANs, WANs, and other high-speed data transmission systems

General Description

Optic pigtail is a fiber optic cable that has a connector already terminated on one end and a piece of exposed fiber on the other end. It is often used for connecting optical devices such as patch panels, fiber optic transceivers, and terminal boxes. The pigtails are available in different types of connectors to meet various application needs.

Product Features

Ø Available in different connector types including LC, SC, ST, FC, etc.

Ø High-quality ferrule ensures low insertion loss and high return loss.

Ø Consistent performance with tight tolerance on key parameters

Ø Made from high-quality materials for durability and long service life.

Ø Easy installation and maintenance

Technical Details

Testing Items	Unit	Technical Parameters
		FC/UPC	FC/APC	LC/UPC	LC/APC	SC/UPC	SC/APC	ST/UPC
Return Loss (SM)	dB	≥50	≥60	≥50	≥60	≥50	≥60	≥50
Insertion Loss -Typical	dB	≤0.20		≤0.20		≤0.20		≤0.20
Insertion Loss -Max.	dB	≤0.30		≤0.30		≤0.30		≤0.30
Repeatability	dB	≤0.10		≤0.10		≤0.10		≤0.10
Exchangeability	dB	≤0.20		≤0.20		≤0.20		≤0.20
Operation Temperature	℃	-40 ~ +80		-40 ~ +80		-25 ~ +75		-40 ~ +80
Storage Temperature	℃	-40 ~ +85		-40 ~ +85		-40 ~ +85		-40 ~ +85
Durability	-	≥ 1000 Times
Industry Standard	-	TIA, IEC & YD/T Standards

Ordering Information

产品类别	单工双工		线缆外径	护套材质		光纤类别	A接头+抛光		总长度
CAT. Code	No. Cores	-	Cable OD	Sheath	-	Fiber Type	Connector A	-	Length
F101-PGT = Optic Pigtail	SX=Simplex	-	09=0.9mm	V=PVC	-	SMD=SM G.652D	SCU=SC/UPC	-	0.5M
	DX=Duplex		20=2.0mm	H=LSZH		SM1=SM G.657A1	SCA=SC/APC		1.0M
	X= X Cores		30=3.0mm	E=FEPE		SM2=SM G.657A2	LCU=LC/UPC		1.5M
			16=1.6mm	O=OFNP		SM5=SM G.655	LCA=LC/APC		2.0M
			24=2.4mm	R=OFNR		SM6=SM G.656	FCU=FC/UPC		3.0M
			48=4.8mm				FCA=FC/APC		…
						OM1=MM 62.5/125	STU=ST/UPC
						OM2=MM 50/125	STA=ST/APC
						OM3=MM 50/125 *	E2U=E2000/UPC
						OM4=MM 50/125	E2A=E2000/APC
						OM5=MM 50/125

	or			or		or	or		or
	Specified			Specified		Specified	Specified		Specified
