Fig-8 Self-Supporting
Fig-8 Self-Supporting
2023-12-15
Self supporting Aerial for FTTH Solution
1. Used for indoor wiring, the end user with cable directly;
2. Used for building introduction of optical cable;
3. The user in the FTTH indoor wiring.

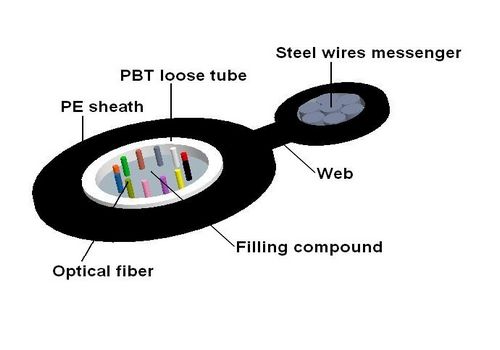

GYXTC8Y aerial fiber optic cable is a non armored unitube fiber optic cable with a stranded wire self supporting unit alongside. The cable is composed of central loose tube with up to 2-24 fibers. It’s an ideal outdoor self supporting aerial cable.
This cable is a small size figure 8 fiber optic cable. With advantages of light, flexible and easy to construction, it’s one of the alternative cable for FTTH cabling network.
Small diameter and figure 8 structure
Easy to install with figure 8 aerial fiber cable structure
Good performance of mechanical and temperature
High strength loose tube that is hydrolysis resistant
Medium density, high density polyethylene jacket, low friction installation
CSM, tube filling compound, 100% cable filling and APL to ensure cable to be watertight
Technical Data(7X1.0mm messenger wire) | ||||||||
Fiber count | Cable size (mm) | Cable weight (kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2-12 | 5.5*12.4 | 84 | 10D | 20D | 3000 | 1000 | 600 | 300 |
14-24 | 6.2*13.1 | 91 | 10D | 20D | 3000 | 1000 | 600 | 300 |
Remark:
1. Fiber: single mode fiber G.652.D,G.657,G.655,multi mode fiber 50/125,62.5/125 or specified by customer;
2. Sheath material: PE,LSZH material or specified by customer;
3. Stranded steel wire:7X(0.5~2.0mm) or specified by suctomer;
4. The parameters in above table are nominal values, all sizes and performance values can be specified by customer.
