2023-12-16

Category :
Outdoor Optic Cable
Sub-Category :
Air-Blowing Cable
Item Code :

Product Name :
Uni-tube Air-blown Micro Cable GCYFXTY

Key Points :
1-12 colored Fiber, uni-tube, gel filling,Aramid Yarns Strength Member, LSZH jacket

Applications :

Duct, Air blowing,FTTH Network GPON, EPON,Rural communication,Local trunk line,CATV,Computer networks system.



General Description

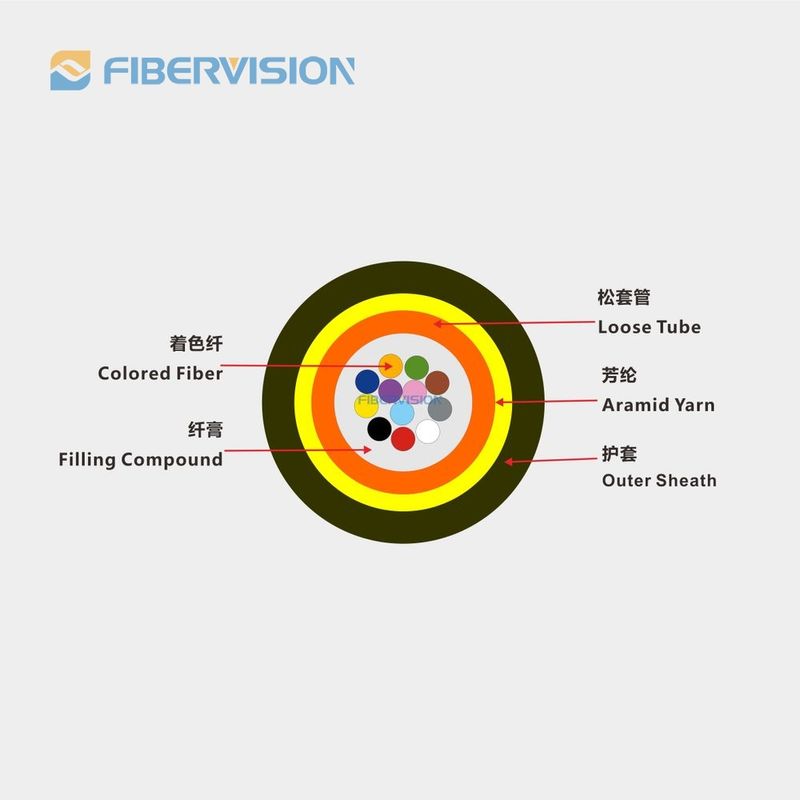

GCYFXTY Non-metal reinforced member, central beam tube filled type,polyethylene sheathed outdoor optical cable for communication] The structure of the optical cable is that a single-mode or multi-mode fiber sleeved into a high-modulus plastic-filled waterproof compound loose tube. And placed in the center of the cable. Aramid yarn reinforced yarn and extruded polyethylene outer sheath to form the cable.

Product Features

  • Perfect cable structure with high fiber density

  • Accurate fiber length balance to ensure stable performance

  • No gel in cable core for water blocking

  • Sheath structure innovation to enhance blowing performance

  • Greater blowing distance

  • Fiber: G.G652D, G.657A1, G657A2 & multimode fiber

Technical Details

Type

O.D.(mm)

Weight(Kg/km)

Tensile strength Long/short term
N)

Crush Long/short term
N/100mm)

GCYFXTY-2B1.3

2.3

4

0.15G/0.5G

150/450

GCYFXTY -4B1.3

2.3

4

0.15G/0.5G

150/450

GCYFXTY -6B1.3

2.3

4

0.15G/0.5G

150/450

GCYFXTY- 8B1.3

2.3

4

0.15G/0.5G

150/450

GCYFXTY- 12B1.3

2.3

4

0.15G/0.5G

150/450

GCYFXTY- 24B1.3

2.7

6.5

0.15G/0.5G

150/450
