Fiber Identifying
Fiber Identificator
2023-08-02

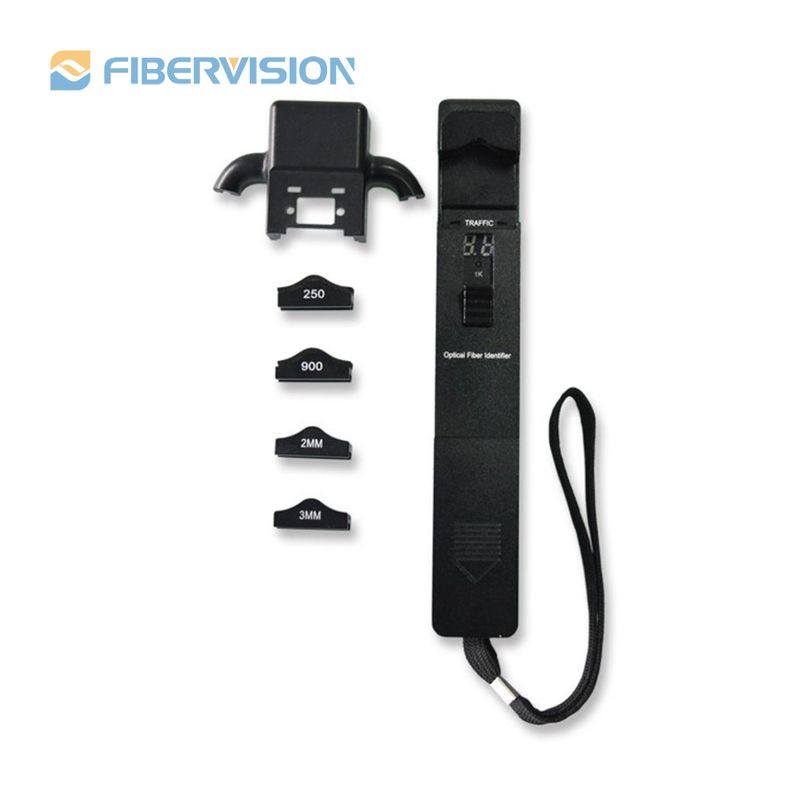

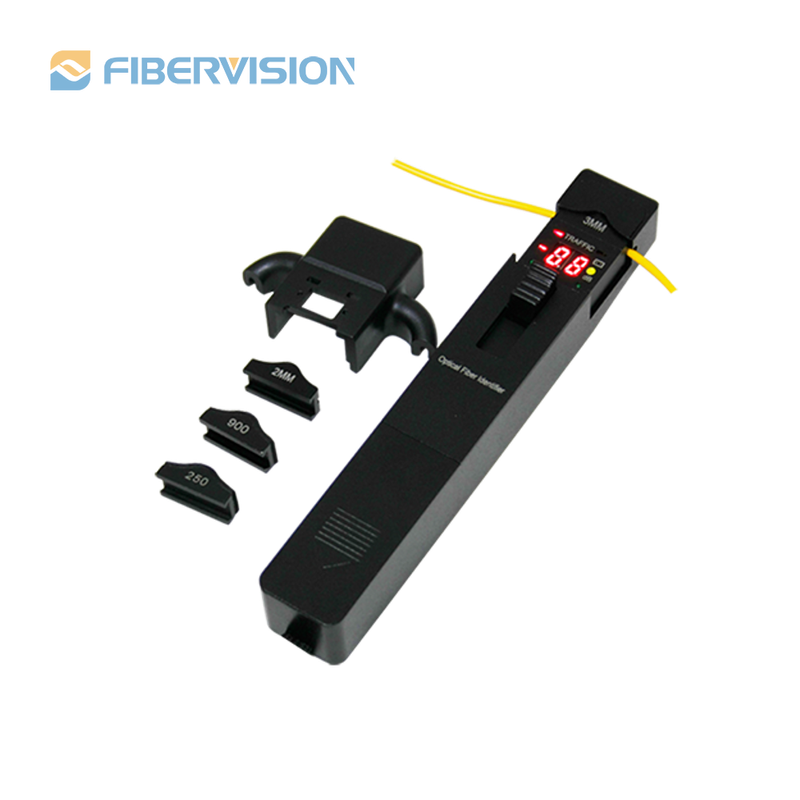

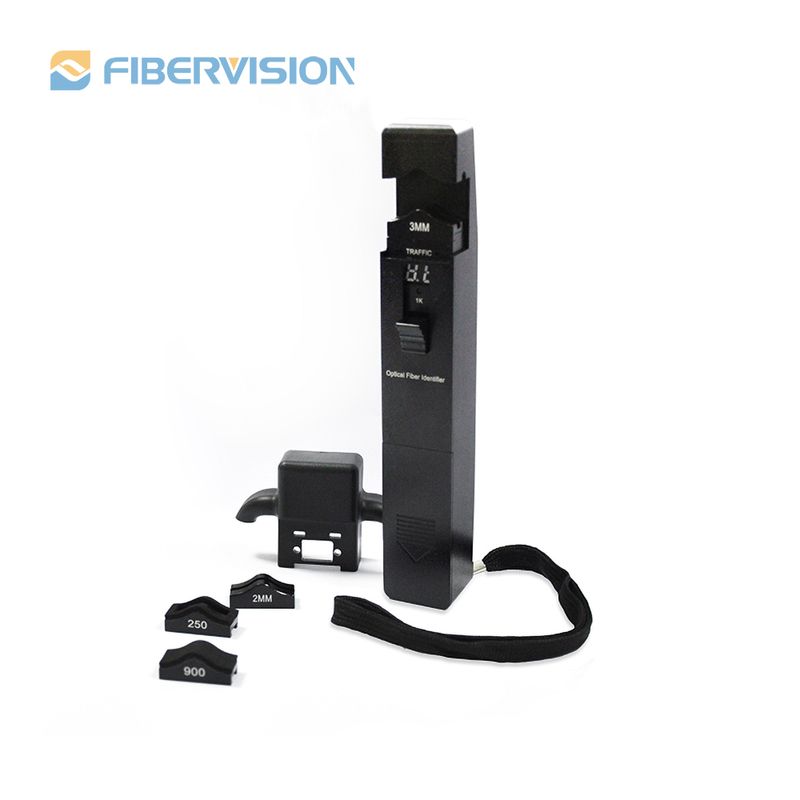

FV-74202B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bend fiber. When the traffic is present, the intermittently audible tone is activated. The FV-74202B optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø 0.25, Ø 0.9, Ø 2.0 and Ø 3.0. The FV-74202B optical fiber identifier is powered by a 9V alkaline battery.
➢ Easy-to-use with “ONE KEY” operation.
➢ Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
➢ Displays the relative core power
➢ More accurate test with Sunshade
➢ Easy-to-replace adaptors
➢ Durable metal housing and quality construction
➢ Lower power indication
Specification:
Type | FV-74202B | |
Identified Wavelength Range | 800-1700 nm | |
Identified Signal Type | CW, 270Hz±5%, 1kHz±5%, 2kHz±5% | |
Detector Type | Ø 1mm InGaAs 2pcs | |
Adapter Type | Ø 0.25 (Applicable for Bare Fiber), Ø 0.9 (Applicable for Ø 0.9 Cable ) | |
Ø 2.0 (Applicable for Ø 2.0 Cable ), Ø 3.0 (Applicable for Ø 3.0 Cable ) | ||
Signal Direction | Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range (dBm, Average Value) | Ø 0.9, Ø 2.0, Ø 3.0 | -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø 0.25 | -25~0 (270Hz,1KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battery (V) | 9 | |
Operating Temperature (℃) | -10 ~ +60 | |
Storage Temperature (℃) | -25 ~ +70 | |
Dimension (mm) | 196*30.5*27 | |
Weight (g) | 200 | |
