Product Name : Optical Fiber Ranger FV-74104N

Key Points :

Applications : ⚫    Testing the distance of the fiber and identify the faults’ location in the fiber link.
⚫     Locates reflective and non-reflective breaks in the fiber network.
⚫     Inspection of fiber repair and maintenance.
⚫     FV-74104N Fiber Ranger is ideal to be used in FTTx network installation and maintenance.

General Description

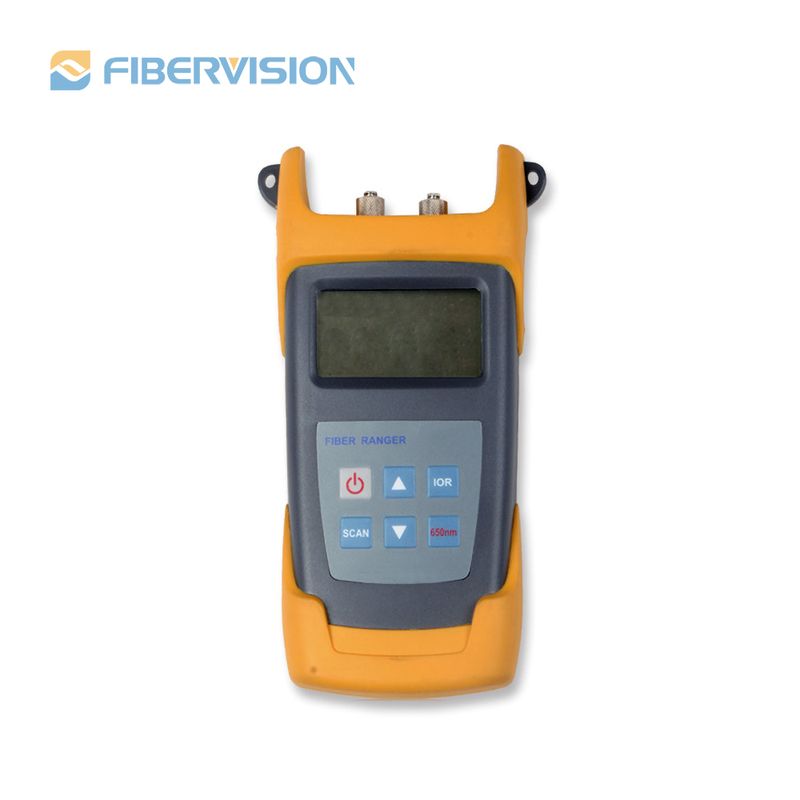

FV-74104N Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the FV-74104N fiber ranger detect fiber fault’s location more accurate and easier.

Product Features

➢ Portable, rugged, lightweight; Easy to use.

➢ More accurate testing results and better repeatability.

➢ Up to 8 fiber faults can be detected in each measurement.

➢ Automatic Pulse Width Control design to ensure a convenient operation.

➢ Easy to identify the faults’ location.

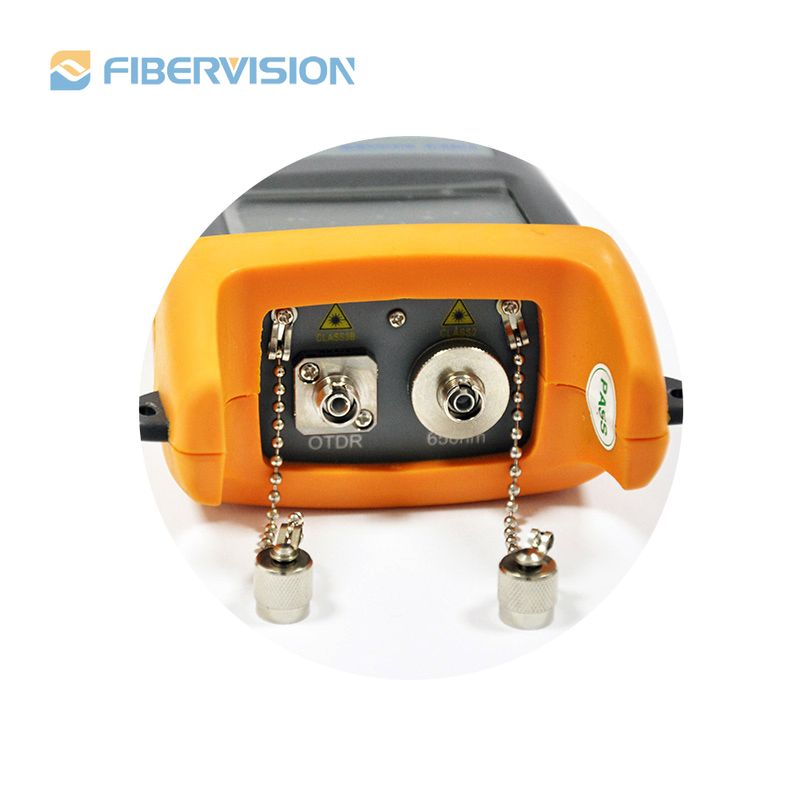

➢ Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.

➢ Designed for field use, dust-free, waterproof, and impact-proof.

➢ Long battery life, up to 5000 measurements operation.

Technical Details

Specification:

Model		FV-74104N
Operating Wavelength		1550nm (1310nm Optional)
Fiber Type		9/125um SM Fiber
Optical Connector Type		FC/PC
Detector Type		InGaAs
Peak Power of laser		≥60mW
Max. Displaying Distance	Reflection Event	60km (≥1dB)
	Non-reflection Event	20km (≥2.5dB)
Measurement Unit		m
Reflection Event Dead Zone		15m
Distance Accuracy (Reflection Event)		± (2m+210 (-4)Distance)
Wavelength of VFL Option		650nm
Output Power of VFL Option		>=1mW

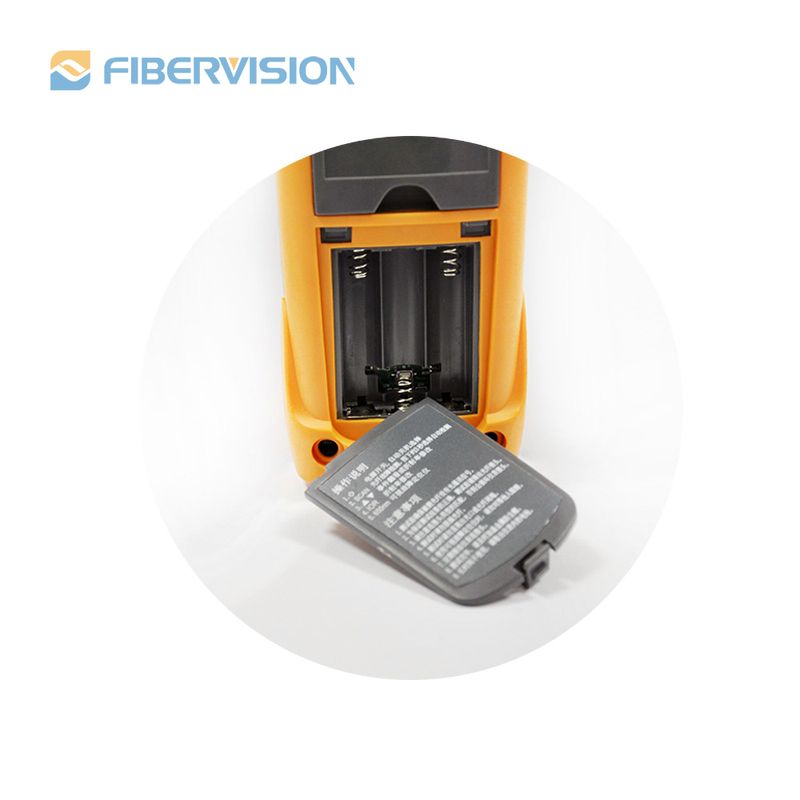

Power Supply		Alkaline Battery (3pcs AA 4.5V Batteries)
Battery Operating Time		≥5000 measurements
Working Temperature		-5~40℃
Storage Temperature		- 10~60℃
Humidity		0~85% (non-condensation)

Dimensions	19010050mm
Weight (g)	450
