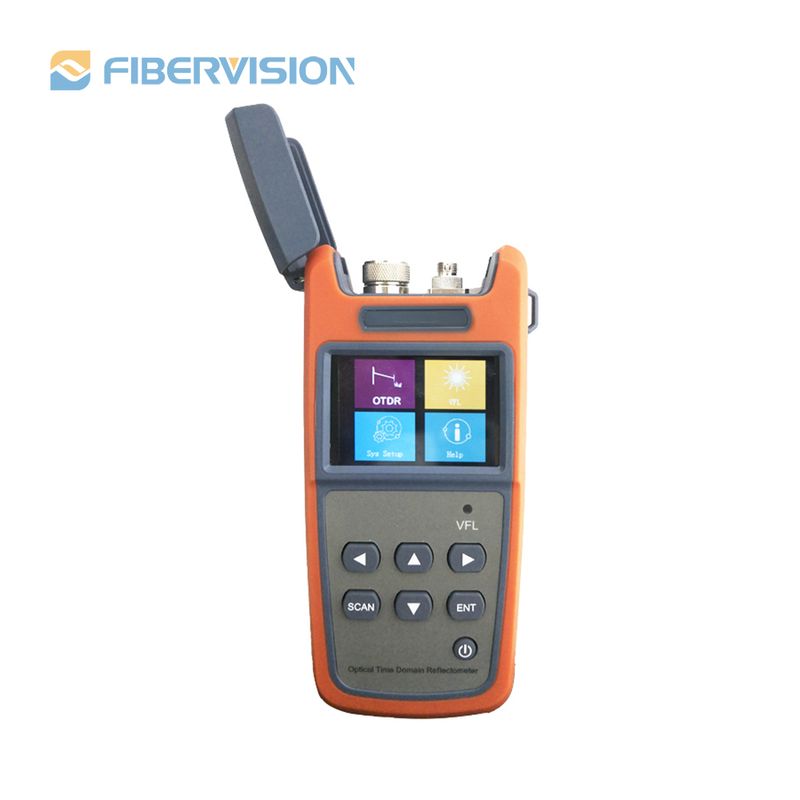

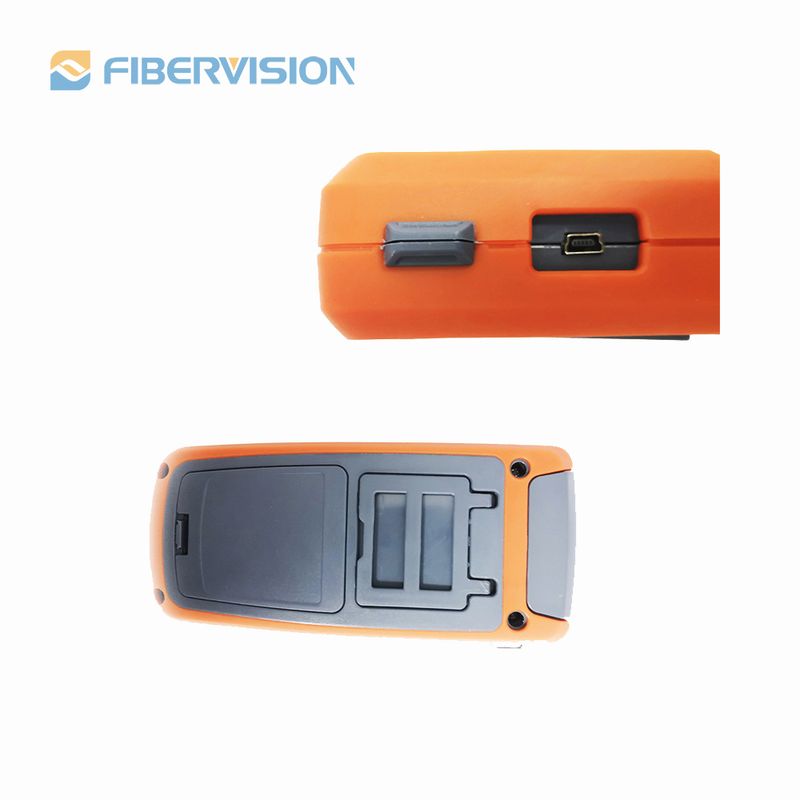

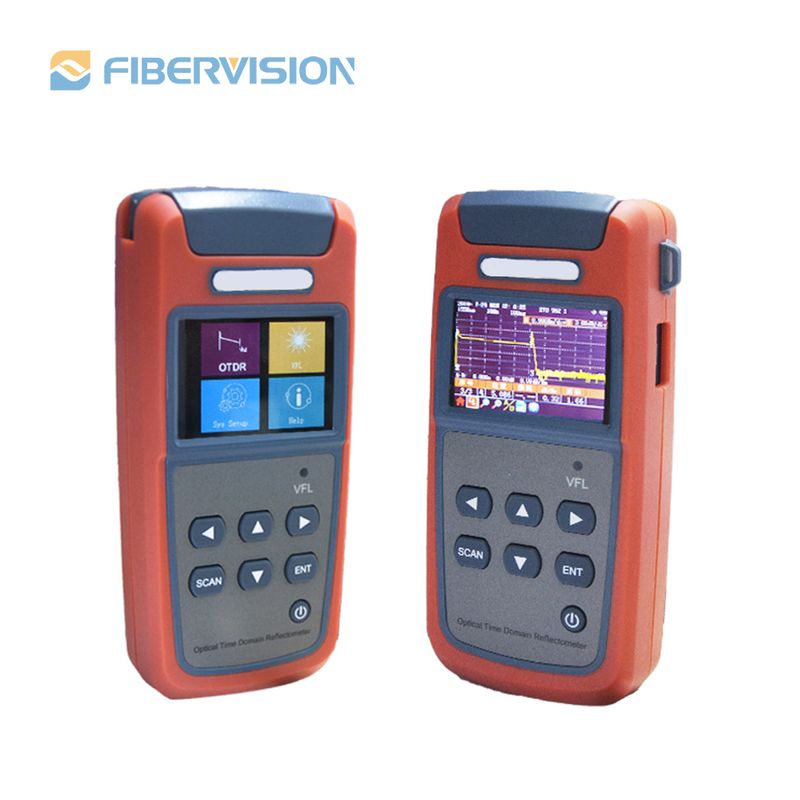

Product Name : Handheld Mini-OTDR FV73105

Key Points :

Applications : Fiber-to-the-home (FTTH)
Metropolitan area networks
Backbone network construction
Line maintenance
Emergency testing
Fiber optic cable research and production measurement

General Description

Mini OTDR is the most portable test instrument in the industry. It adopts the OTDR tech nical principles and integrates the powerful analysis software, which enables the OTDR f iber ranger detect fiber fault location more accurate and easier.

Product Features

*Portable, rugged, lightweight; Easy to use.

*More accurate testing results and better repeatability.

*Automatic Pulse Width Control design to ensure a convenient operation.

*Easy to identify the faults location.

*Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.

*Dust, water and shock proof, designed for field use.

*Long battery life, up to 5000 measurements operation.

*2.6 inch screen, data saves in SOR format.

Technical Details

Technical Specifications

Model	MINI ODTR
Wavelength	1310nm or 1550nm
Type of fiber	9/125um SM Fiber
Connector	FC 、SC/PC
Dynamic Range	22dB
Pulse Width	5ns~ 8000ns ，Auto
Measurement	m
Event blind zone	3m
Attenuation blind	10m
Range accuracy	± (1m+2×10-4×distance)
OPM	-50~+26dBm
OPM	850/1300/1310/1490/1550/1625nm
VFL	≥10mW
Optical Light Source	1550nm
iLOM (Event Map)
Power Supply	3pcs of Dry battery
Battery Work time	≥2000 times measure
Save Data	＞500
Work Temperature	-5~40C
Save Temperature	-10~60C
Humidity	0~85% (no condensation)
Net weight	300g
