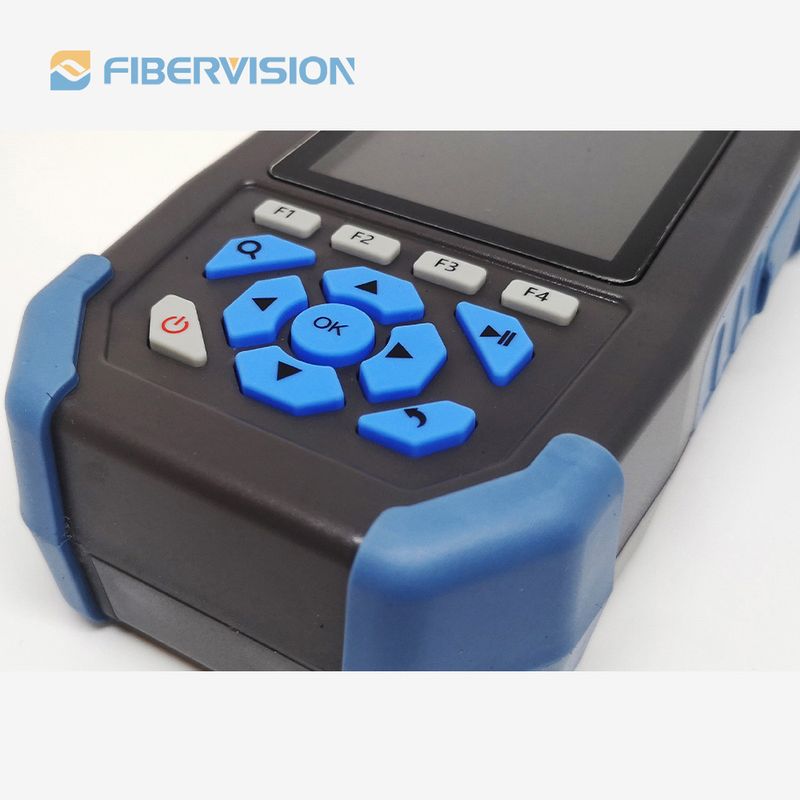

Product Name : Handheld Mini-OTDR FV73122S

Key Points :

Applications : Fiber-to-the-home (FTTH)
Metropolitan area networks
Backbone network construction
Line maintenance
Emergency testing
Fiber optic cable research and production measurement

General Description

FV-73122S Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof, and drop-proof. The tester also combines 8 functions with highly integrated OTDR, Event maps, Stable Light source, Optical power meter, Visual Fault Locator, cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging. It is a good choice for long term field work.

Product Features

*Portable, rugged, lightweight; Easy to use.

*More accurate testing results and better repeatability.

*Automatic Pulse Width Control design to ensure a convenient operation.

*Easy to identify the faults location.

*Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.

*Dust, water and shock proof, designed for field use.

*Long battery life, up to 5000 measurements operation.

*2.6 inch screen, data saves in SOR format.

Technical Details

Technical Specifications

FV-73122S Mini-Pro OTDR
Model	FV-73122S
Wavelength	1310nm/1550nm±20nm
Fiber Type	G.652 SM or G.57A SM Fiber
Dynamic Range	24dB / 22dB
Event Blind Zone	≤3m
ATT Blind Zone	≤8m
Test Range	500m~60km
Pulse Width	3ns~10us
Ranging Accuracy	±(1m+Sampling Interval +0.005％×Test Distance)
Loss Accuracy	±0.2dB/dB
Sampling Points	16k~128k
Sampling Resolution	0.05m~8m
Reflection Accuracy	±3dB
Data Storage	Internal: ≥600；External: TF Card
Laser Safety Level	Class Ⅱ level
File Format	SOR Standard File Format

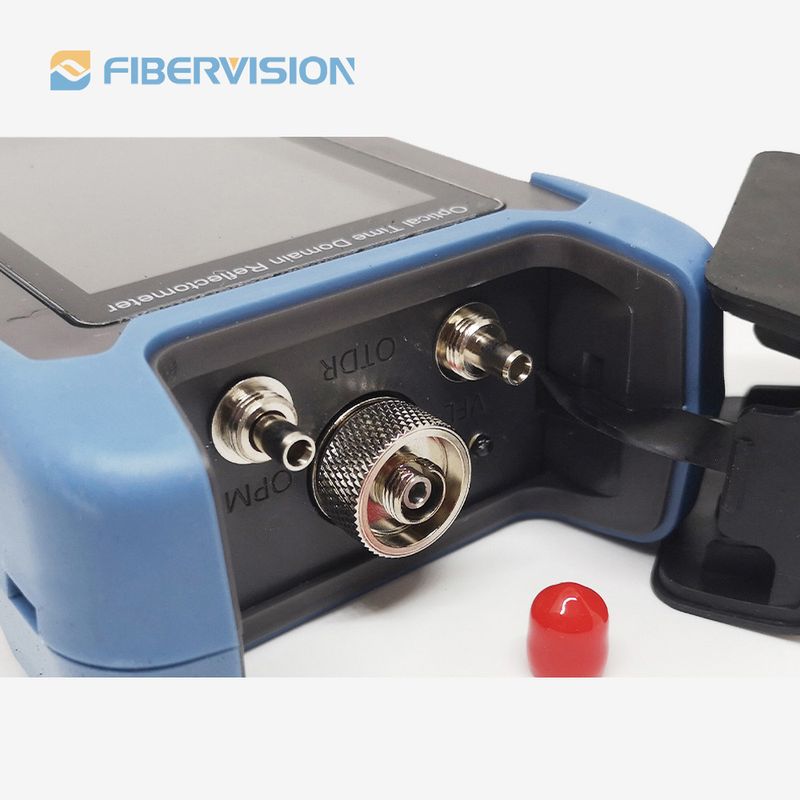

Connector	Default: SC/APC Adaptor [ Optional: FC/SC/ST, etc.]
OPM
Wave Range	800nm~1700nm
Interface Type	Universal Joint for FC/SC/ST
Test Range	-50dBm~+26dBm
Uncertainty	±5%
Frequency Identification	CW/270/330/1k/2kHz
Calibration Wavelength	850/980/1300/1310/1490/1550/1625/1650nm
Light Source
LD Type	FP-LD
Output Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Output Power	≥-5dBm
Modulation Frequency	270/330/1k/2kHz
Stability	CW, ±0.5dB/15min (Test after 15mins of preheating)
Connector	Default: SC/APC Adaptor [ Optional: FC/SC/ST, UPC/APC ]

VFL Moudule
Work Wavelength	650nm±20nm
Output Power	≥10mW
Mode	CW/1Hz/2Hz
Connector	FC/SC/ST

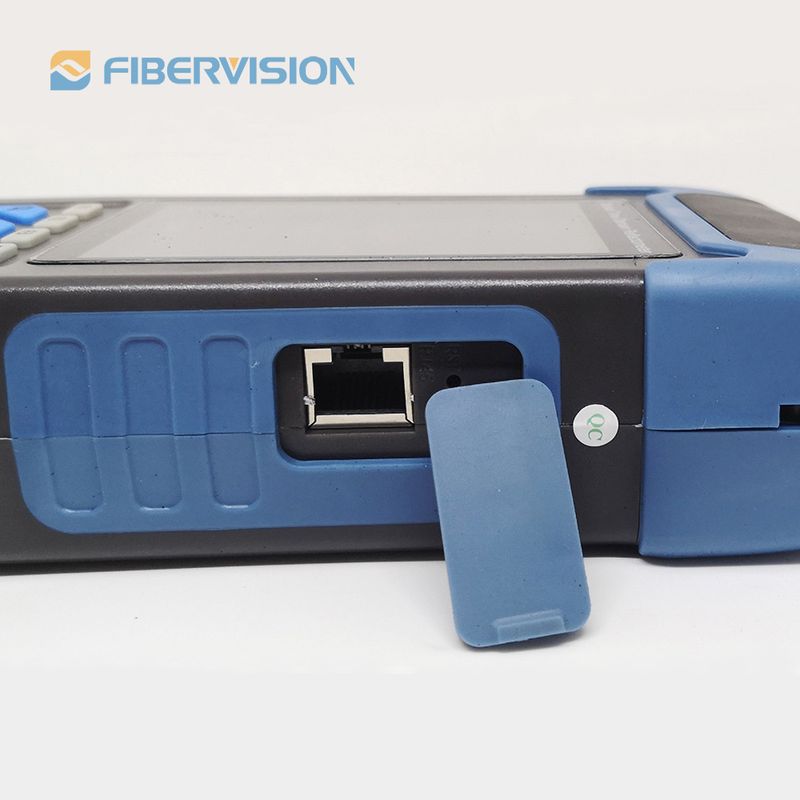

RJ45 Cable Length Measurement
Test Range	300m
Other Parameters
Display	3.5-inch Color LCD
Data Interface	Micro USB
External Storage	TF Card
Power Supply	Polymer Li-battery: 3.7V, 4000mAh Power Adapter: 5VDC, 2A
Battery Life	Standby＞20h；Measuring Time＞12h
Operating Temperature	-10C~+50C
Storage Temperature	-40C~+70C
Relative Humidity	0~95％Non Condensing
Weight	≤350g
Dimension	173mm×82mm×37mm
