FV-72213 PON Optical Power Meter is designed based on 72203 PON power meter. This power meter is able  to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the  construction and maintenance of the PON projects.

➢  It can experiment at Voice, data and video signal synchronous measurement and display on          BPON/EPON/GPON.

➢  Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm).

➢  Used in Burst mode measurement of 1310nm upstream.

➢  Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.

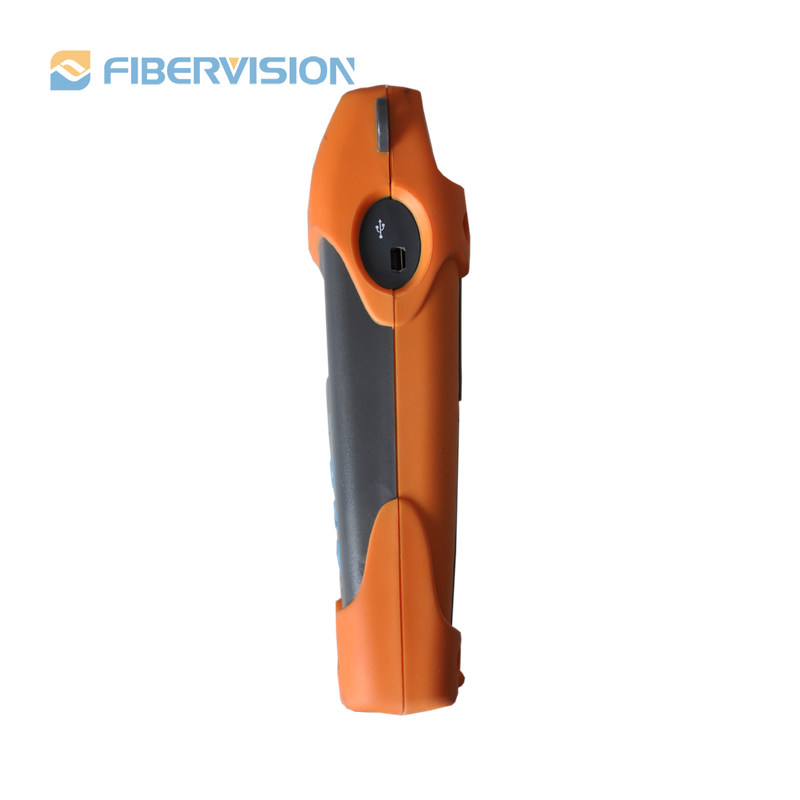

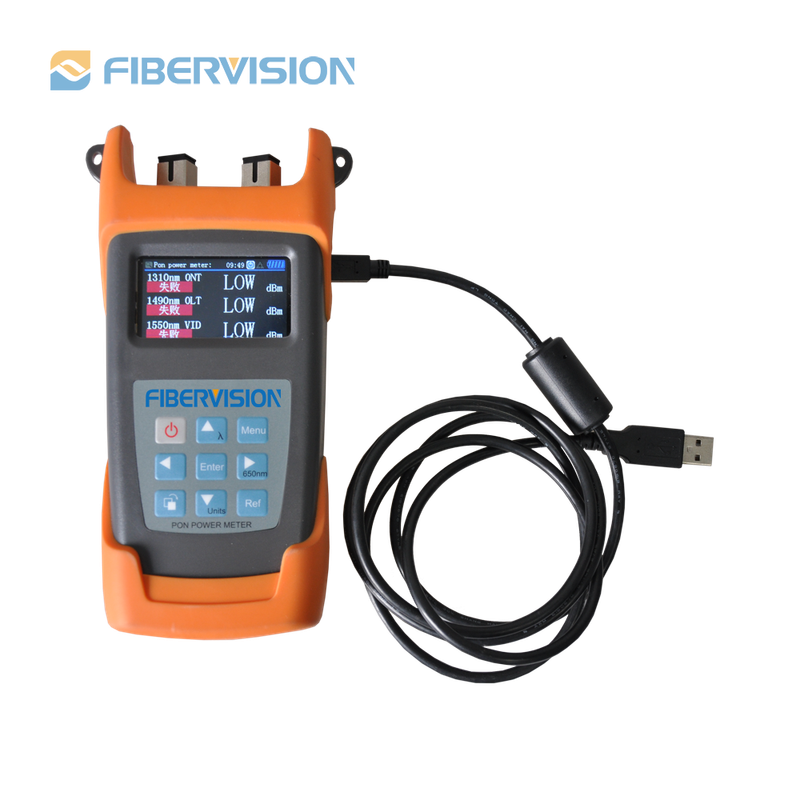

➢  USB communication port enables data transfer to a PC.1000measurement items can be saved in FV-             72213 PON power meter or computer for data review.

➢  Optical power meter and VFL with one port. (FV-72213A)

➢  Optional Chinese/English display.

➢  Offers up to 10 different threshold sets in total, three    status LEDs represent different optical signal conditions      of Pass, Warn and Fail respectively.

➢  10 minutes Auto-off function can be activated or deactivated

➢  Good key design, high sensitivity, greatly reducing the volume and weight of the tester.

➢  Different models corresponding to different function, according to own use to choose .

Specification:

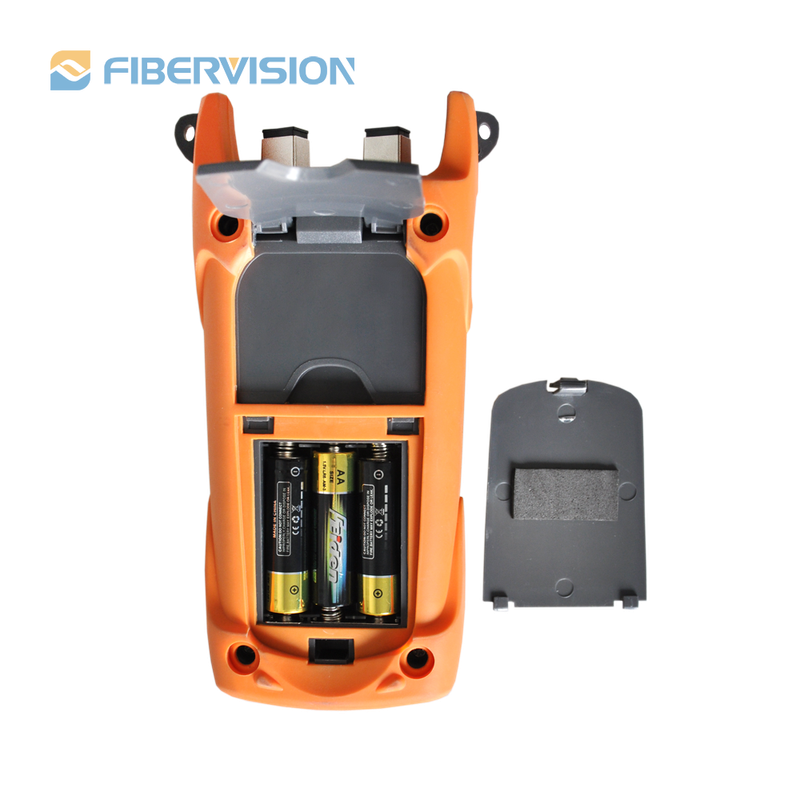

Note: The operation time of the battery are all for the instrument that do not turn on back light, if the back light turns on the operation time will be shorted.

3.     Normal Optical Power Meter Module:

②: FV-72213 & 72213V does not have the OPM module
