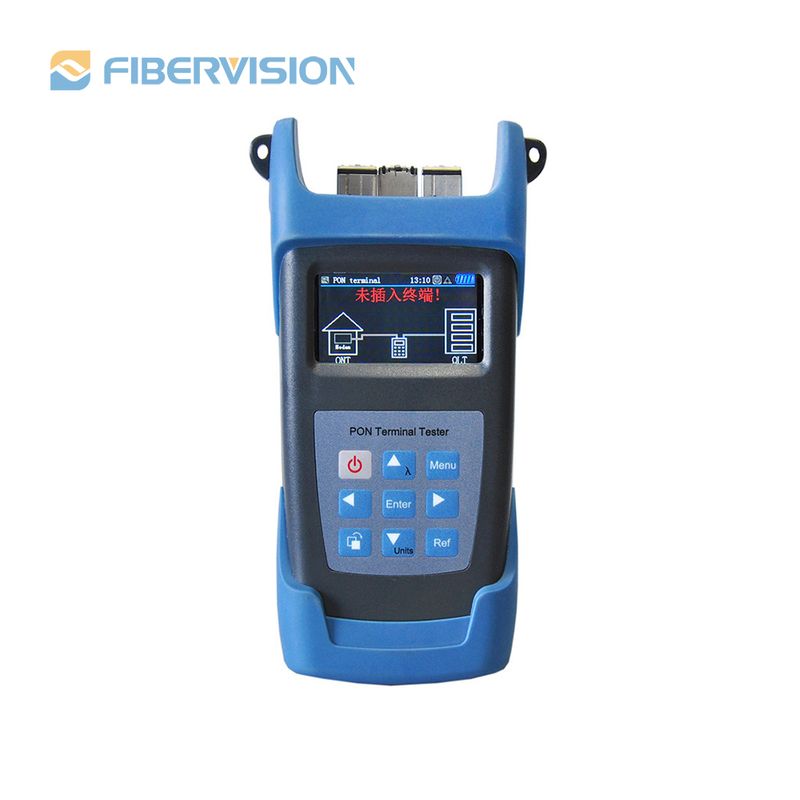

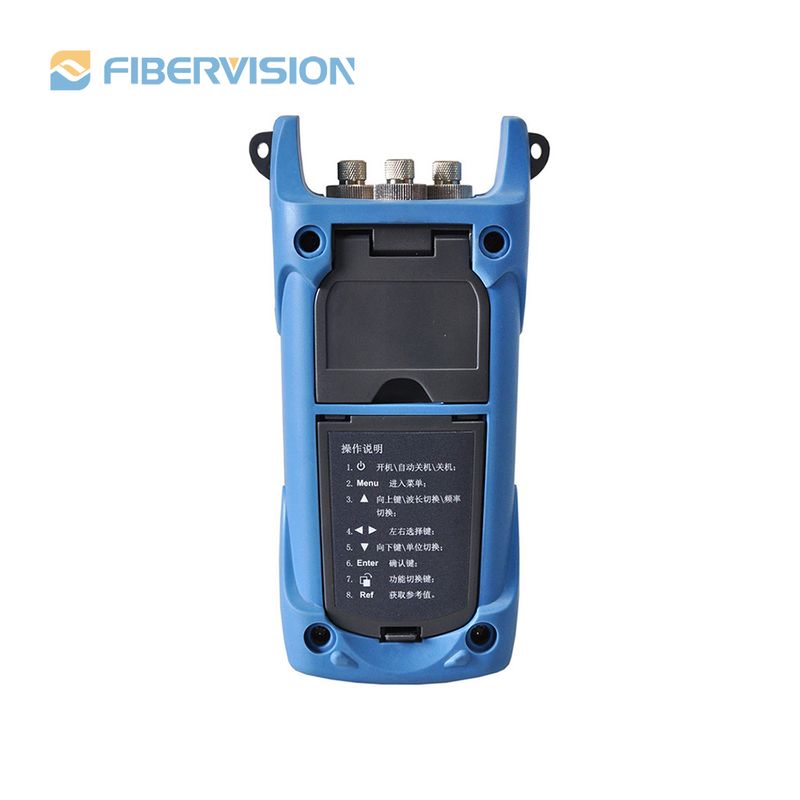

FV-72313 PON Terminal Tester Investment on optical network maintenance is getting higher. In the last one kilometer of the optical  network, operators need to check the occupation of optical ports idle resources to reduce the waste of port  resources. However, such manual troubleshooting is extremely complicated and inefficient, and will bring huge trouble to users and cause complaints increase.

➢    Self-patent for PON network terminal analysis and troubleshooting

➢    Intelligent troubleshooting of optical network terminal resources occupied or idle
➢    Smart to determine the light cat is not turned on, the end of the fiber fracture, the optical connector off the state
➢    Support return loss detection, qualitatively determine the optical path, optical connector installation quality, escort high-speed optical           communications

➢    Fully support PON optical power meter function

➢    Support 1310nm and 1550nm stable light source output mode

➢    Support standard optical power meter mode

➢    Support red light (visual fault location) mode

Other Features:

⚫    Support power saving mode

⚫     Support date and time settings.

⚫    Support threshold setting.

⚫    Support Chinese / English language switch.

⚫     Intelligent power management and power detection capabilities.
⚫    Support alkaline batteries, rechargeable batteries, AC adapter power supply.

Specification:
