PON and Power Meter
PON Meter and Power Meter
2023-08-02
⚫ Maintenance in Telecom
⚫ Maintenance CATV
⚫ Fiber Optic Lab Testing
⚫ Other Fiber Optic Measurements

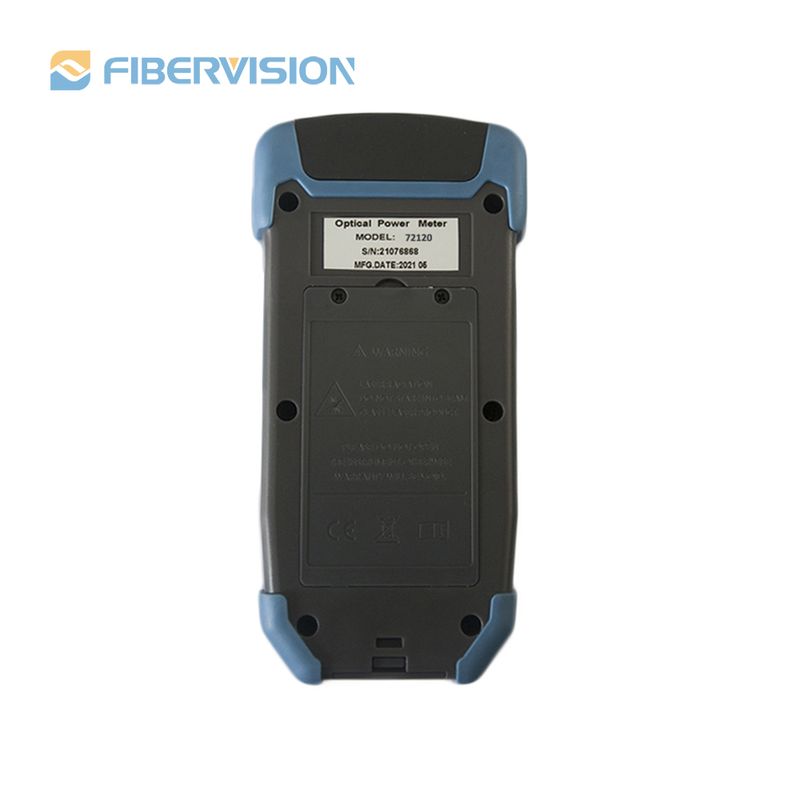

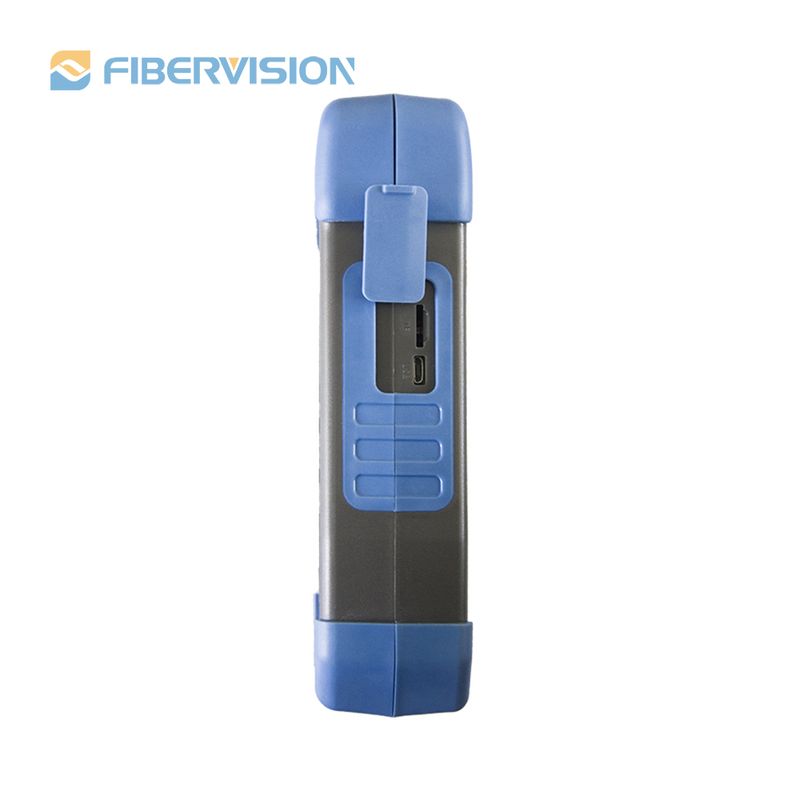

FV-72102 Optical Power Meter is a highly cost-effective portable power meter and it’s newly launched by our Company. It can be used for the optical power measurement within the wavelength 800~1700nm. FV-72102 also has a wide measurement range which is more than 70dB. It’s designed with the common wavelength calibration points, such as 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. The instrument is widely used in fiber-optic link construction, testing and maintenance.
➢ Simple user interface
➢ Small size, easy to carry
➢ Wide testing range
➢ Automatic reminding of low battery
Model | FV-72102A | FV-72102C |
Wavelength(nm) | 800~1700nm | |
Detector | InGaAs | |
Measurement Range (dBm) | -70~+6 | -50~+26 |
Uncertainty | ±0.25 | |
Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 | |
Resolution (dB) | 0.05 | |

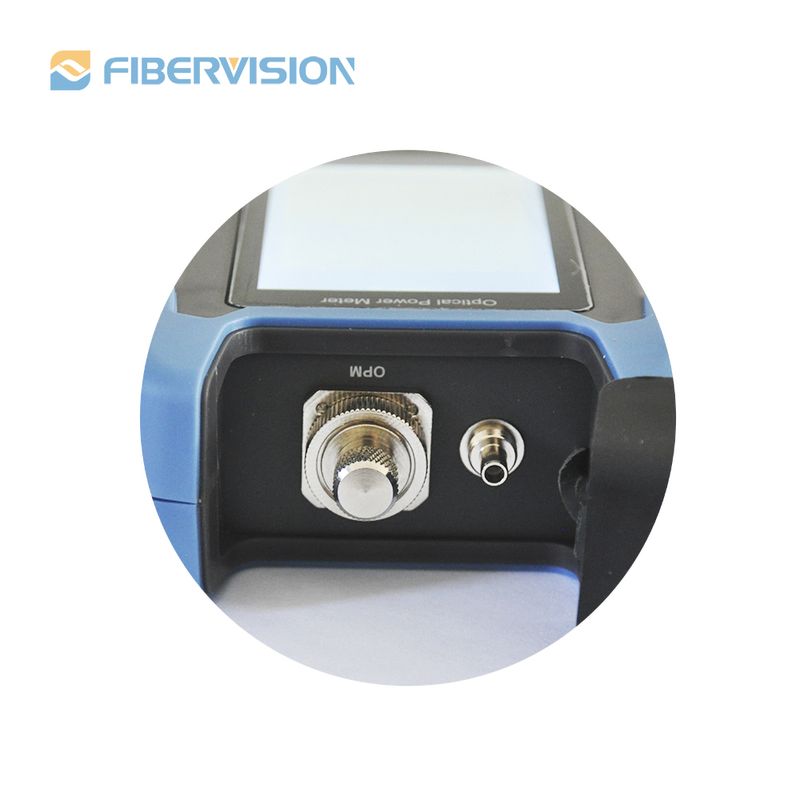

Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
Power Supply | Alkaline Battery(3 AAA 1.5V batteries) | |
Battery Operating Time | 300 h with 1.5V Battery(3) | |
Operating Temperature (℃) | -10 ~ +60 | |
Storage Temperature (℃) | -25 ~ +70 | |
Relative Humidity | 0 to 95% (non-condensation) | |
Dimension (mm) | 166x106x20 | |
Weight (g) | 90 | |
