PON and Power Meter
PON Meter and Power Meter
2023-08-02
⚫ Maintenance in Telecom
⚫ Maintenance CATV
⚫ Fiber Optic Lab Testing
⚫ Other Fiber Optic Measurements

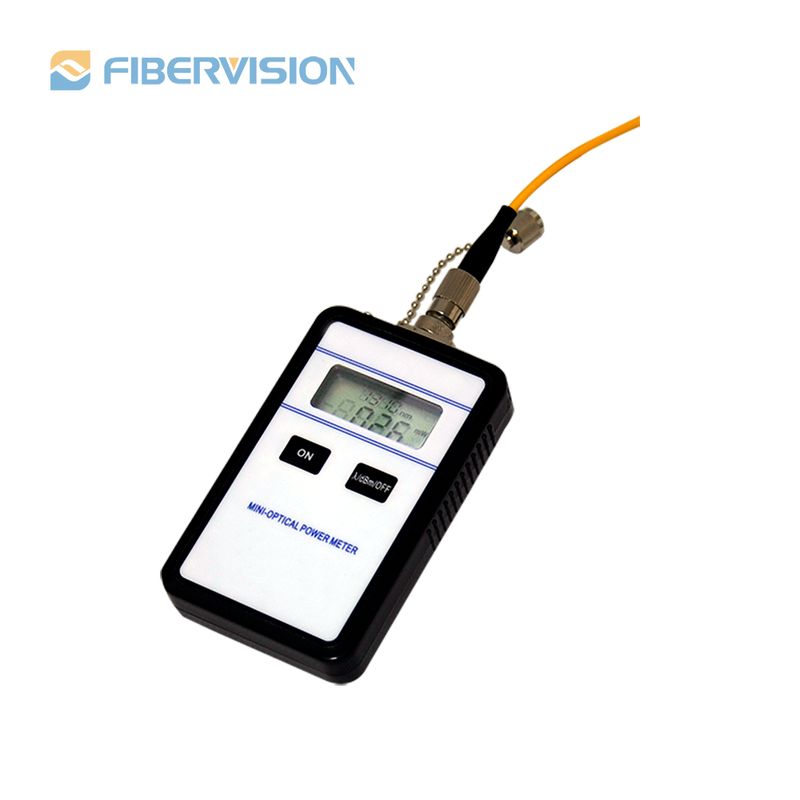

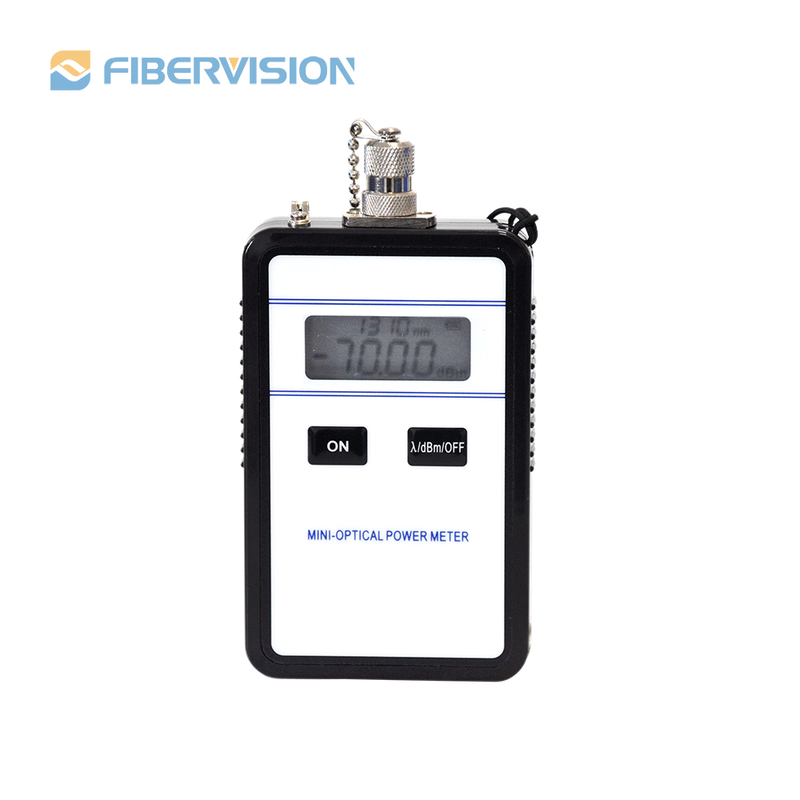

FV-72105 mini handheld optical power meter is the most lightweight and compact in size testing instrument. It features ease-of-use and economy advantages and can be used for absolute power measurement in optical fibers. FV-72105 in combination with the 3110 mini handheld light source become the most portable and advantageous testing pair.
➢ The most compact in size, ideal for field operation
➢ Power measurements in dBm and mw.
➢ 10 minutes Auto-off function conserving battery life
Specification:
Type | FV-72105A | FV-72105C |
Wavelength(nm) | 800~1700nm | |
Detector | InGaAs | |
Measurement Range (dBm) | -70 ~ +6 | -50 ~ +26 |
Uncertainty | ±5% | |
Calibrated Wavelength(nm) | 850,1300,1310,1490,1550,1625 | |
Resolution(dB) | 0.01 | |
Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
Power Supply | Alkaline Battery | |
Battery Operating Time | 360 hours with three 1.5V batteries | |
Operating Temperature (℃) | -10 ~ +60 | |
Storage Temperature (℃) | -25 ~ +70 | |
Relative Humidity | 0 to 95% (non-condensing) | |
Dimension(mm) | 115X60X20 | |
Weight(g) | 105 | |
