Category :
								Testing Instrument

Sub-Category :
									PON and Power Meter

Item Code : F702-PM-72115

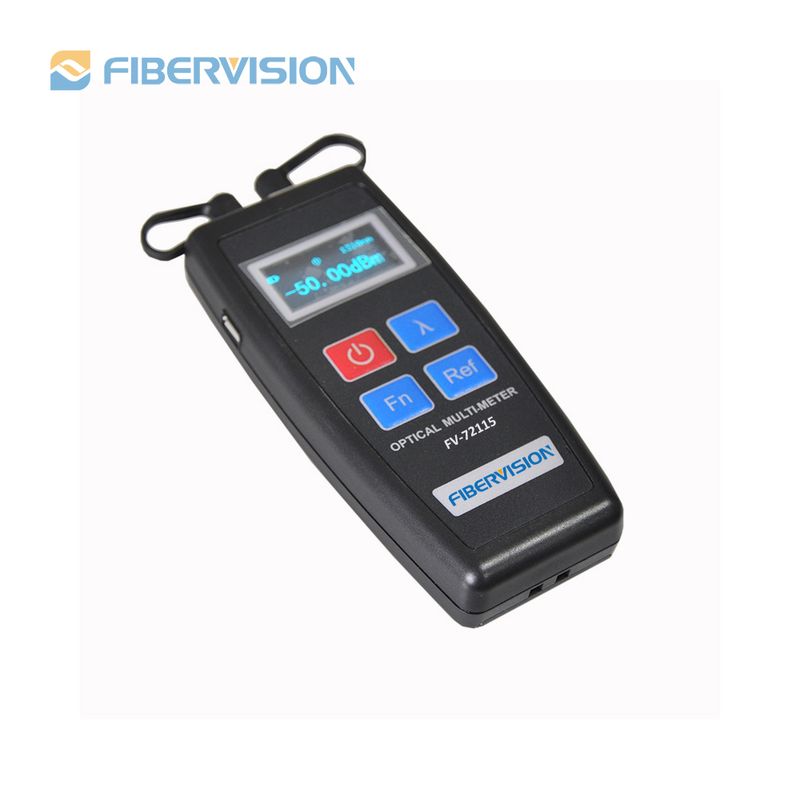

Product Name : Mini Optical Power Meter with VFL FV-72115

Key Points : Power Meter Model 72115

Applications :
① Fiber-optic CATV projects
② Fiber-optic communication projects
③ Fiber Optical Sensors research
④ Optical device manufacturing


General Description

FV-72115 Power Meter (with VFL) is a fiber engineering meter integrated miniature optical power meter with high precision and visual fault location function.

Product Features

① High accuracy, low error, large dynamic range

② Mini ergonomic design, one-hand operation, flexible and convenient

③ OLED high-definition screen

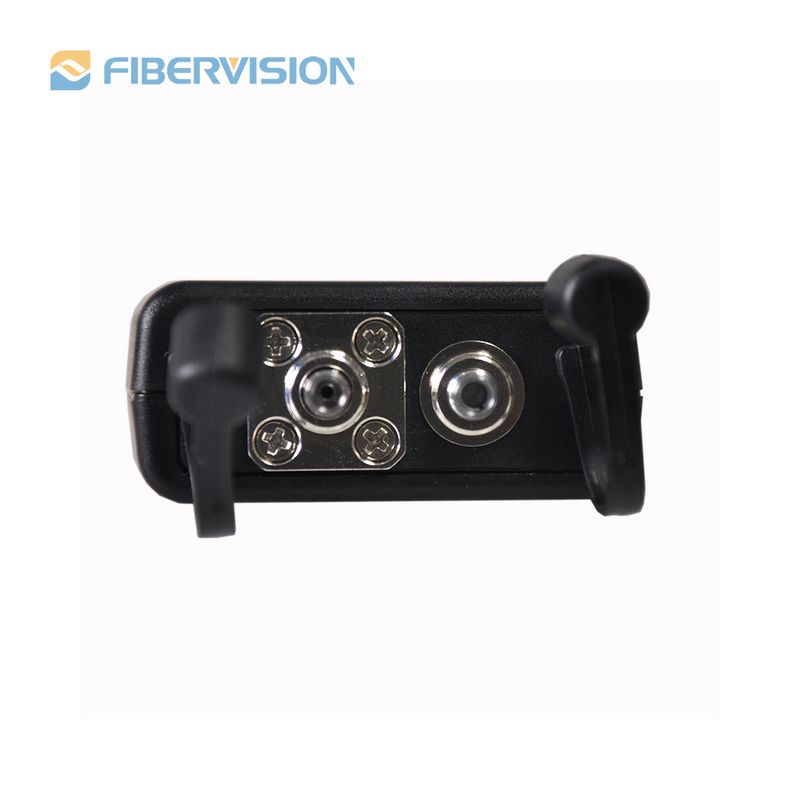

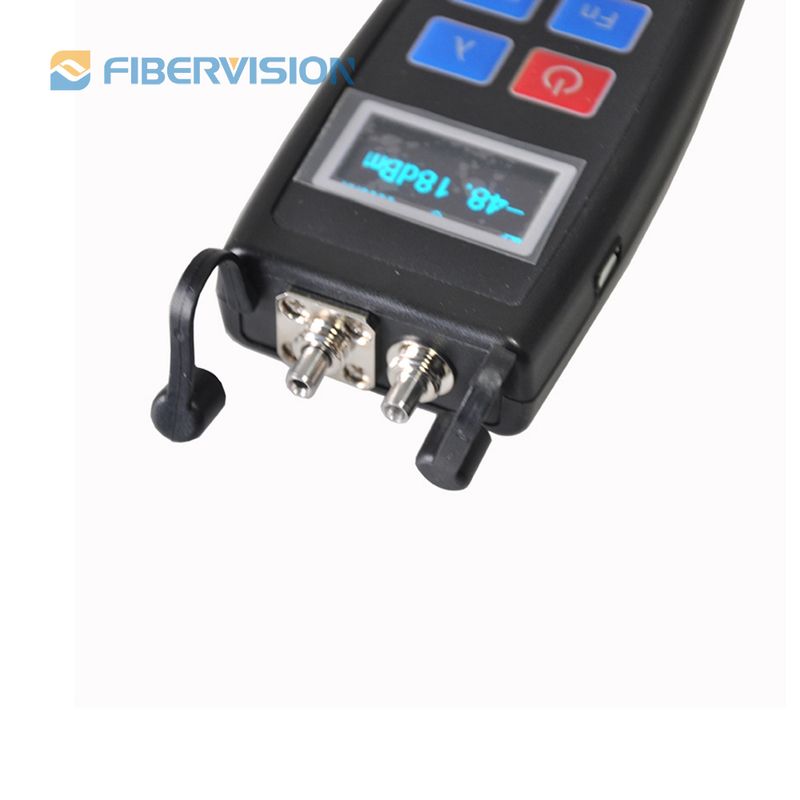

④ Universal interface, support FC/SC/ST

⑤ Wavelength memory function

⑥ Micro-USB Power Supply

⑦ Support automatic shutdown and Energy conservation

⑧ Six calibration wavelengths

⑨ Support hang by rope and anti-lost

⑩ dBm, dB and mW switching

Technical Details

Specification:

Model	FV-72115
	FV-72115A	FV-72115B
Wavelength range (nm) *1	850~1700
Detector Type	InGaAs
Power Measurement Range (dBm) *2	-70 ~ +6	-50 ~ +26
Power Uncertainty (dB) *3	±0.3
Calibrated Wavelength (nm )	850,1300,1310,1490,1550,1625
Display Resolution (dB)	0.05
red light Output Power ( mW )	1 or 10
transmission distance (km)	5 or 10
Operating frequency (Hz )	CW/2Hz
Operating Temperature (℃)	-10~+60
Storage Temperature (℃)	-25~+70
Power Saving time (min)	10/no power off
Battery Life (hrs.)	≥130 ( OPM model)
Power Supply	3 battery of the 7 AAA 1.5 V /micro-USB power supply
Weight (g)	70 (without battery)
Dimensions	128 x 52 x 22mm

Ordering Information

Datasheet Download
