Item Code : F702-PM-72123

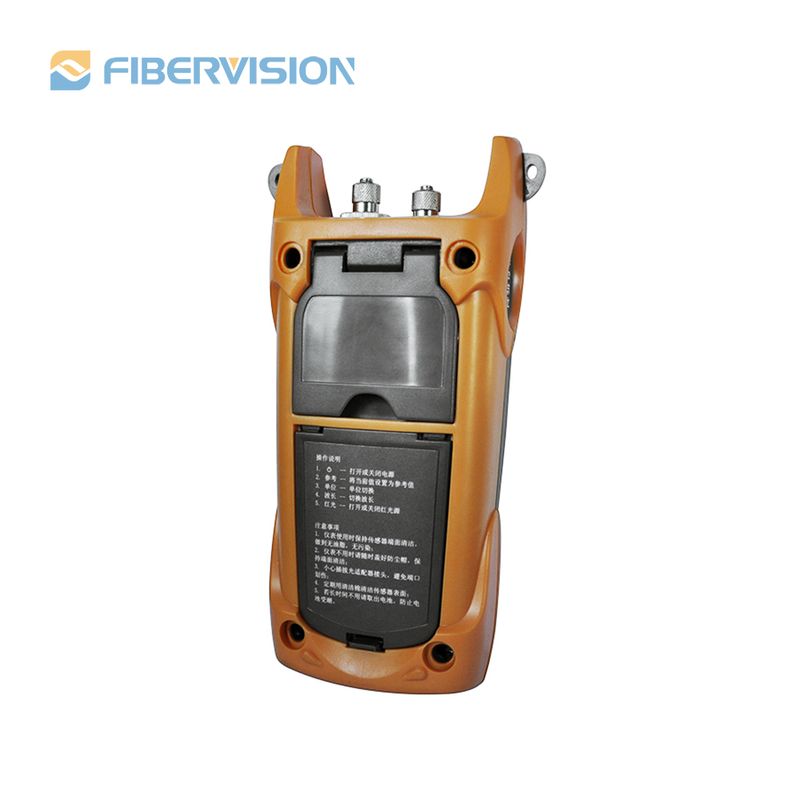

Product Name : Mini Optical Power Meter with VFL FV-72123

Key Points : Power Meter Model 72123

Applications :
① Fiber-optic CATV projects
② Fiber-optic communication projects
③ Fiber Optical Sensors research
④ Optical device manufacturing


General Description

FV-72123 Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.

Product Features

➢ FV-72123 VFL Power Meter is an ideal tester used in quickly mechanical splicing and FTTx networks.

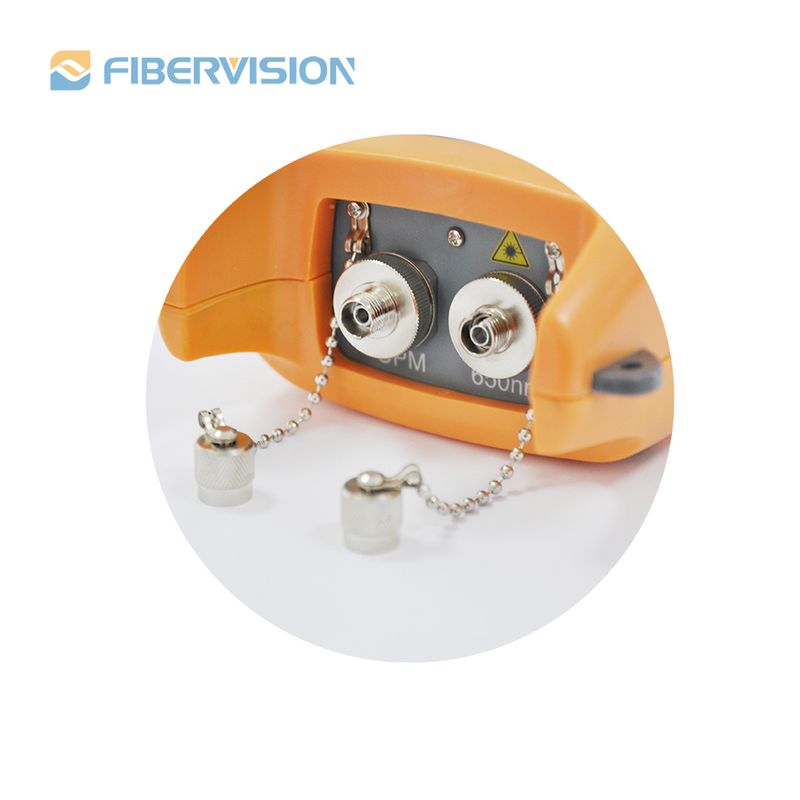

➢ Optical Port: FC, SC interchangeable supports various optical connectors.

Technical Details

Specification:

Model	FV-72123
Operating wavelength (Power Meter Module)	850/1300/1310/1490/1550/1625
Detector Type	InGaAs
Output Power (VFL module)	1mW or 10mW
Power Measurement Range	-70~+6dBm / -50~+26dBm
Uncertainty	±0.5dB
Resolution	0.01
Operation temperature	-10~+60℃
Storage Temperature	-25~+70℃
Auto-off function	Yes, Auto-off after 10 minutes idle time
Battery Life @ OPM	180 hours
Battery Life @ VFL	60 hours
Power Supply	3pcs AA Batteries
Weight	700g (including batteries)
Size	19210250
