Aerial,Duct,applicable to communications in areas with strong electromagnetic field or heavy lightning damages.
●Precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics
●PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the optical fiber
●Optical cable has excellent flexibility and bending resistance
●Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance
●Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation
●PE sheath has good resistance to solar radiation

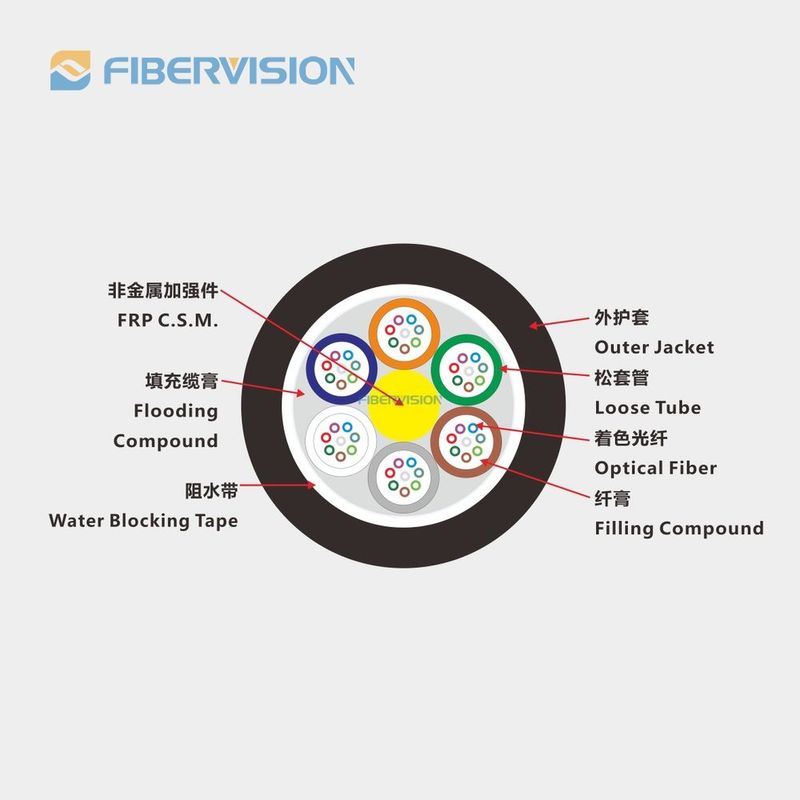

Non-metallic strength member,loose-tube stranded,gel filling,polyethylene sheath,outdoor cable for communication purpose.
| Technical Data(GYFTY) | ||||||||
| Fiber count | Cable outer dia (mm) | Cable weight (kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2-36 | 9.4 | 75 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 38-72 | 10 | 85 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 74-84 | 10.7 | 100 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 86-96 | 11.3 | 110 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 98-108 | 12 | 122 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 132-144 | 14 | 165 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 288 | 16.8 | 241 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| Note："D" is cable diameter | ||||||||
| Temperature Range | ||||||||
| Transport/Storage temp | -40℃~ +70℃ | |||||||
| Installation temp | -30℃~ +50℃ | |||||||
| Operation temp | -40℃~ +70℃ | |||||||
