Duct or Aerial applications suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Steel-PE jacket make cable have nice properties of moisture resistance
With small cable diameter, light cable weight, easily to lay

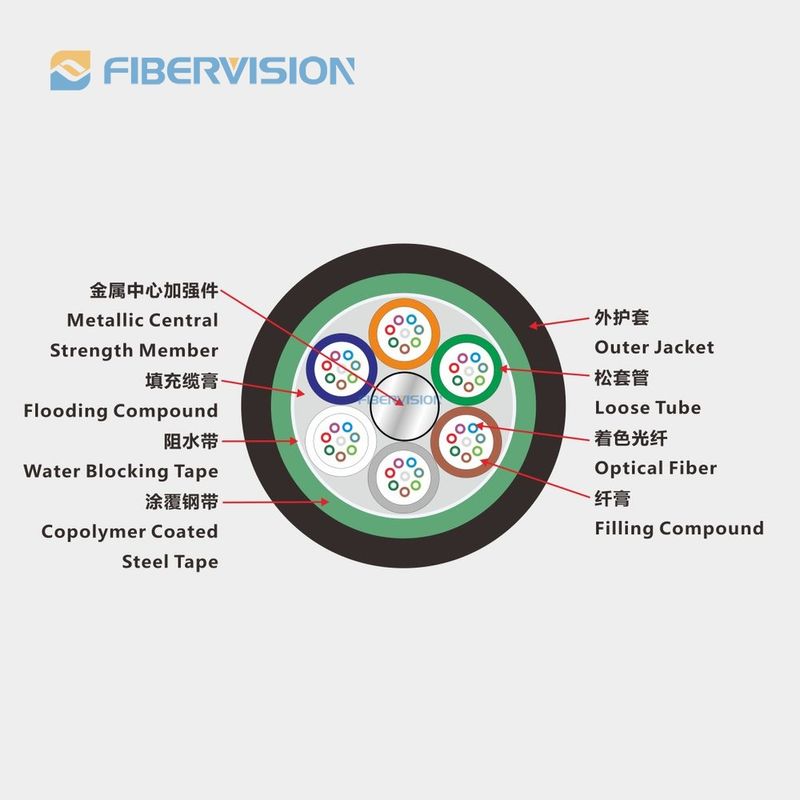

Metallic strength member,loose-tube stranded,gel filling,laminated corrugated steel tape-polyethylene sheath outdoor cable for communication purpose.
| Technical Data(GYTS) | ||||||||
| Fiber count | Cable outer dia (mm) | Cable weight (kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2-36 | 10.5 | 107 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 38-72 | 11.2 | 125 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 74-84 | 11.9 | 138 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 86-96 | 12.5 | 155 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 98-108 | 13.2 | 172 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 132-144 | 15.3 | 220 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 288 | 18.3 | 335 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| Note: "D" is cable diameter | ||||||||
