1.Adopted to Outdoor distribution.
2.Suitable for aerial .pipeline laying method.
3.Long distance and local area network communication
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.PSP enhancing moisture-proof
6.Two parallel steel wires ensure tensile strength
7.Small diameter, light weight and friendly installation

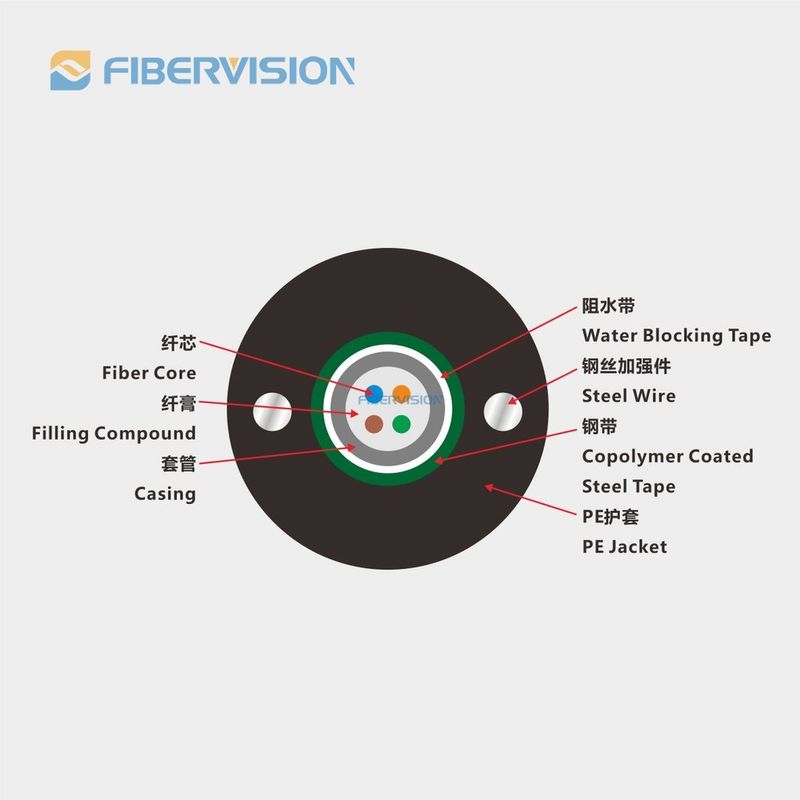

Metallic strength member,central tube,gel filling, two parallel steel wires embedded in the out sheath,corrugated steel plastic tape and polyethylene sheath outdoor cable for communication purpose.
Technical Parameters
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | Minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
