Outdoor Optic Cable Uni-Tube Type GYFXTY

Name: Outdoor Optic Cable Uni-Tube Type GYFXTY
Brand: FIBERVISION

Single Mode Aerial Non Metallic Gyfxty/gyfxy G652D Two FRP Strength Parallel Loose Tube 4 6 8 12 Core Fiber Optic Cable

Category: Outdoor Fiber Cable

Sub-Category: GYXY-GYFXY

Item Code:

Certificate:

Delivery Time:

Customization:

Related Tags: 1-12 Colored Fiber,central tube,gel filling,Aramid or Glass Yarns strength member, PE Jacket

Datasheet Send Email Get Best Price

Product Applications

Aerial,Duct.

Product Features

Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube ﬁlling compound ensure a critical protection of ﬁber.
Crush resistance and flexibility.
Aramid or glass yarns strength member ensure tensile strength
Small diameter, light weight and friendly installation

Product Description

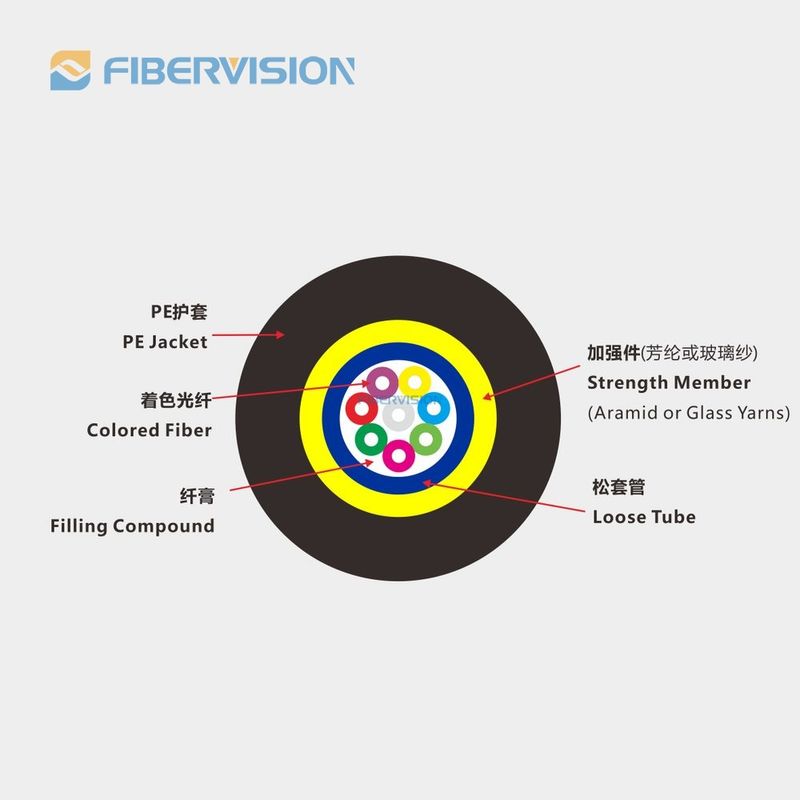

Central tube,gel filling,Aramid or glass yarns strength member,polyethylene sheath outdoor cable for communication purpose.

Technical Parameters

Technical Data(GYFXY)
Fiber count	Cable outer dia (mm)	Cable weight (kg/km)	Min.bending radius(mm)		Permissible tensile force(N)		Permissible pressure force(N/100mm)
Fiber count	Cable outer dia (mm)	Cable weight (kg/km)	Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2-12	6.5	35	10D	20D	600	300	600	300
14-24	7.2	43	10D	20D	600	300	600	300
26-36	7.9	52	10D	20D	600	300	600	300
38-48	8.5	62	10D	20D	600	300	600	300
Note: "D" is cable diameter

Ordering Information

1. Fiber: single mode fiber G.652.D,G.657,G.655,multi mode fiber 50/125,62.5/125 or specified by customer;
2. Sheath material: PE,LSZH material or specified by customer;
3. The parameters in above table are nominal values, all sizes and performance values can be specified by customer.
