Aerial,Duct
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Crush resistance and flexibility.
Corrugated steel-plastic tape enhancing moisture-proof.
Steel wires ensure tensile strength
Small diameter, light weight and friendly installation

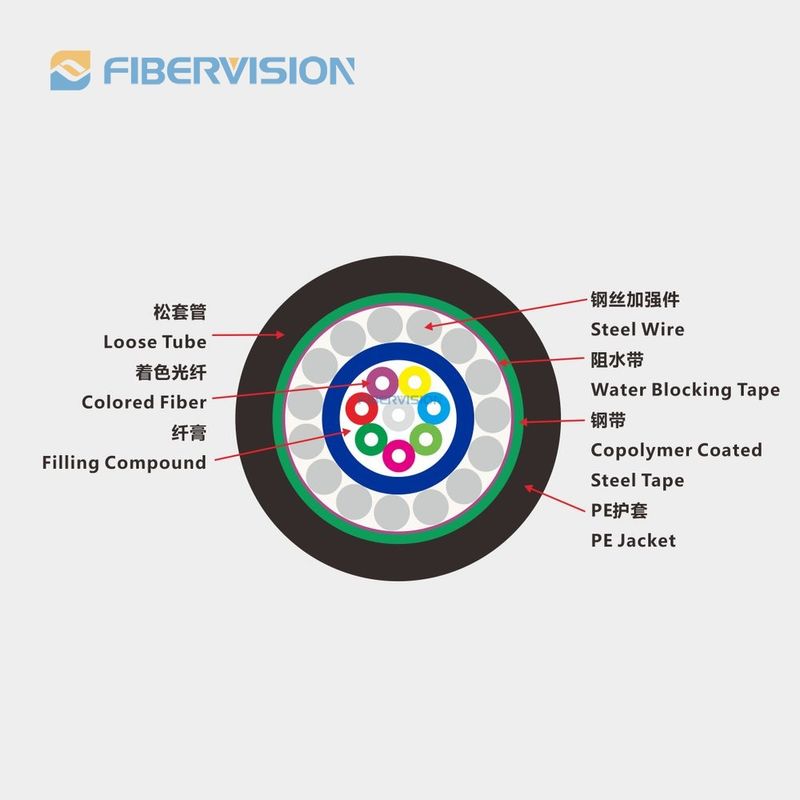

Metallic strength member,central tube,gel filling,corrugated aluminum/steel plastic tape-polyethylene sheath outdoor cable for communication purpose.
| Technical Data | ||||||||
| Fiber count | Cable outer dia (mm) | Cable weight (kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2-12 | 9.3 | 100 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 14-24 | 10.6 | 125 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 26-36 | 11.5 | 184 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 38-48 | 12.4 | 205 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| Note："D" is cable diameter | ||||||||
| Temperature Range | ||||||||
| Transport/Storage temp | -40℃~ +70℃ | |||||||
| Installation temp | -30℃~ +50℃ | |||||||
| Operation temp | -40℃~ +70℃ | |||||||
